Quick Details
-
Brand Name:
-
SED
-
Voltage:
-
380V±10%, 50HZ, 3Phase, 5Wire
-
Power:
-
65Kw, 65Kw, 380V±10%, 50HZ, 3Phase, 5Wire
-
Dimension(L*W*H):
-
5500*2200*2250mm
-
Weight (KG):
-
9000
-
Product name:
-
SED-20DG Freeze Drying Equipment
-
Usage:
-
Food Industry
-
Compressed air:
-
≥40L/min(P=0.5~0.8Mpa)
-
Cooling water qty:
-
≥30m3/h(T≤30℃,P=0.2-0.3Mpa)
-
Chamber design temperature:
-
-70℃-+90℃
-
Shelf material:
-
Stainless steel rectangular tube splicing
-
Weight:
-
9T(Approx.)
-
The number of shelf:
-
11+1 (Compensation Board)
-
Shelf spacing:
-
70mm
Quick Details
-
Type:
-
Vacuum Drying Equipment
-
Drying Capacity (kg):
-
400
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
SED
-
Voltage:
-
380V±10%, 50HZ, 3Phase, 5Wire
-
Power:
-
65Kw, 65Kw, 380V±10%, 50HZ, 3Phase, 5Wire
-
Dimension(L*W*H):
-
5500*2200*2250mm
-
Weight (KG):
-
9000
-
Product name:
-
SED-20DG Freeze Drying Equipment
-
Usage:
-
Food Industry
-
Compressed air:
-
≥40L/min(P=0.5~0.8Mpa)
-
Cooling water qty:
-
≥30m3/h(T≤30℃,P=0.2-0.3Mpa)
-
Chamber design temperature:
-
-70℃-+90℃
-
Shelf material:
-
Stainless steel rectangular tube splicing
-
Weight:
-
9T(Approx.)
-
The number of shelf:
-
11+1 (Compensation Board)
-
Shelf spacing:
-
70mm
Feature
Product Details
Specifications
|

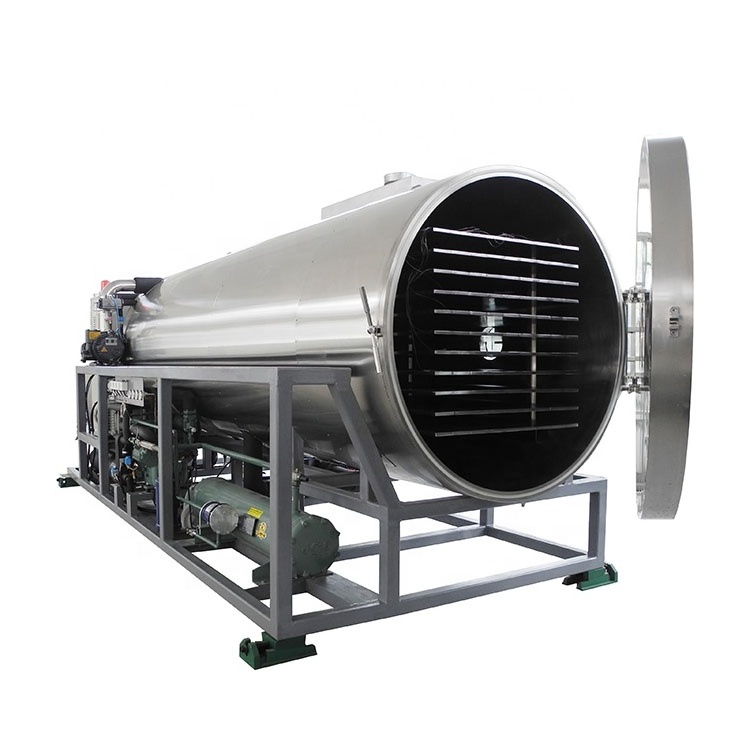

Product Name
|
Vacuum Freeze Dryer
|
|
Model
|
SED-20DG
|
|
Power
|
65Kw, 380V±10%, 50HZ, 3Phase, 5Wire
|
|
Whole volume(L×W×H)
|
5500mm×2200mm×2250mm
Final dimension based on design |
|
Total weight
|
9T（Approx.）
|
|
The number of shelf
|
11+1 (Compensation Board)
|
