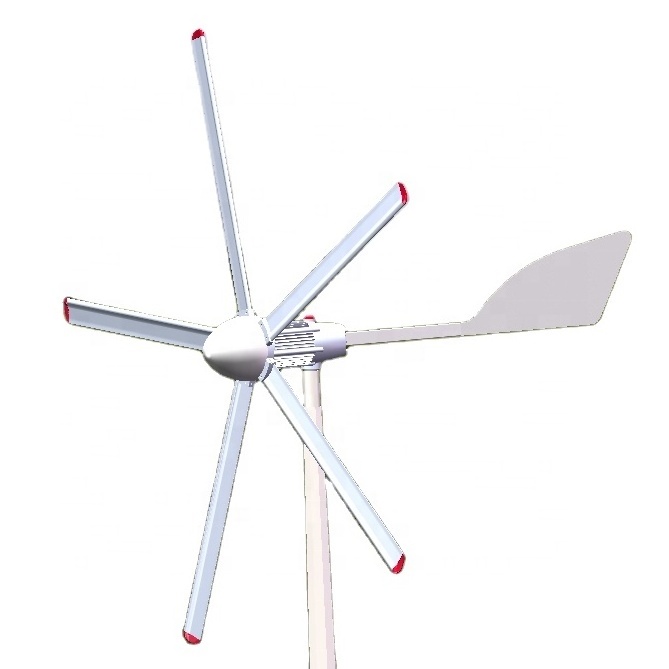

Chinese Manufacturer 200w 300w 500w 750w 1kw 1.5kw Horizontal Dynamo Windmill Generator Wind Turbine

600w wind power generator is an equipment to convert wind energy into electric power which is changed into

storage battery group. It can be widely used in rich wind areas but without normal energy supply from any

power system . It is capable of providing power for lighting, TV, telecommunication equipment and so on.

Normally 600w wind turbine works together with 600w or 1kw solar panel. This wind solar hybrid system provide steady power for home, signal station, street light...

We have FD2.8-600w wind turbine for lower average wind speed place;

FD2.5-600w wind turbine for rich wind place.

Special antiseptic treatment for island, seaside use

__________________________________________

Note:

1. Tower type, tower height can be special requested;

2. working voltage can be special requested;

3.Ce,ccc,iso, IEC approved;

600w wind turbine output power curve:

• Household, Garden, farm

• Telecom sites.
• Rural electrification programs. Island , sentry, island, sight lighting

Wind turbine assembly:

Tower type:

guy wire tower, stand lone tower, tilting up tower, hydraulic tower (optional)

Tower height can be manufacture according to user's request.

The tower with  hot-galvanize.

We provided the tower foundation drawing after confirm the tower type, tower height.

Matched controller:

Controller converts 3 phase AC power to Dc and charge to the battery group or feed to the grid tie inverter.

Controller with auto brake function, PWM voltage stablization function.

Matched with off grid single phase

Blades and hub,permanent magnet generator and nacelle:

blades with protection film

C.W blades, low noise level, high efficiency

FRB material, 3 pcs blades per set

Adjust blades rotor balance before delivery

Clamp hub, safety and reliable

Aluminum housing and nacelle

Rare earth material, high efficiency

low start up torque 0.4N.m.

Provide plate form test record for each set

We sell the pma seperately.

600w fixed pitch wind turbine advantage

Fixed pitch wind turbine 600w including: 3 pcs FRB blades, nose cone, hub, generator, nacelle, tail rod, tail vane.

• Low/normal average wind speed wind turbine
• Fixed pitch,auto yaw, auto brake protection system.
• Low cost, reliable and steady working system
• Low start up wind speed 2m/s, low rated wind speed 9m/s
• Low noise level, provide noise drawing chart
• High efficiency 3 phrase AC permanent magnet generator
• Vacuum mould blades with protection film, long worklife span in sand wind condition
• Wind turbine with antiseptic treatment, hot-galvanize tower. It can be work in sea side, island, lake...
• tilting up tower is easy to installation for sample order; Hydraulic tower is easy to install for bulk order. Guy wire tower cost is lower and easy to delivery.
• We provide completely on grid system kit, off grid system kit, wind solar hybrid on/off grid system kit. Grid power and diesel generator as backup power

• Production Capacity: 500 sets per month

• Main market:  US, Canada, Australia, New Zealand, European...

• Testing Machinery:

Generator platform test

Blade balance adjustment instrument

Blade weight center test platform

Turbine turn-to-turn test system

Other  fixed pitch wind turbine model list:

1. 600w wind turbine main body net weight 45kgs;
1.4*0.58*0.36m, 1plywood case, gross weight 60kgs.

2. 600w 12v PWM controller with dump load:

Controller:530*440*200 10KG
Dump load:360*330*200 6KG

3. 600w wind turbine main body + 12v controller with dump load:
1 plywood case, 1.42*0.58*0.36m, 80kgs, 0.29cbm.

4. soft package for tower;

5. Plywood case for the inverter.

Delivery by sea/by air or by express. FOB/C&F, CIF

Packing details:

System Design Service ;

We cam design diffirent system for customers according their request  For example, on-grid or off-grid system , solar wind hybrid system or  solar wind  diesel generator  system  like below:

After Sale Service :

Solar panels &main parts of wind turbine are free 3 years warranty, controller and invertor are 2 years warranty.

All lifelong  technical support and part cost supply.

(1) The warranty period is start from the date of shipment which show on the bill of loading or air waybill.
(2) Free maintenance services during the warranty period the cost involved be borne by the company, do not charge a fee to customers, free warranty if any damage outside the warranty period, the company will charge a fee for labor costs and materials.
(3) the warranty period, company's quality problems caused by the maintenance of the freight borne by the company, if not under warranty or man-made damage, the freight charges by the customer.
