Quick Details
-
Working Power Supply:
-
+5VDC
-
Measuring Range:
-
±100000nT
-
Resolution:
-
0.1nT
-
Power Consumption:
-
≤ 4W
-
Operation Temperature:
-
-25℃~80℃
-
Sampling Frequency:
-
200Hz
-
Probe Size:
-
30*30*120mm
-
Data Acquisition Module Size:
-
35*76*100mm
-
Warranty:
-
12 Months
Quick Details
-
Place of Origin:
-
Shaanxi, China
-
Brand Name:
-
SMAGALL
-
Application:
-
Magnetic field measurement
-
Working Power Supply:
-
+5VDC
-
Measuring Range:
-
±100000nT
-
Resolution:
-
0.1nT
-
Power Consumption:
-
≤ 4W
-
Operation Temperature:
-
-25℃~80℃
-
Sampling Frequency:
-
200Hz
-
Probe Size:
-
30*30*120mm
-
Data Acquisition Module Size:
-
35*76*100mm
-
Warranty:
-
12 Months

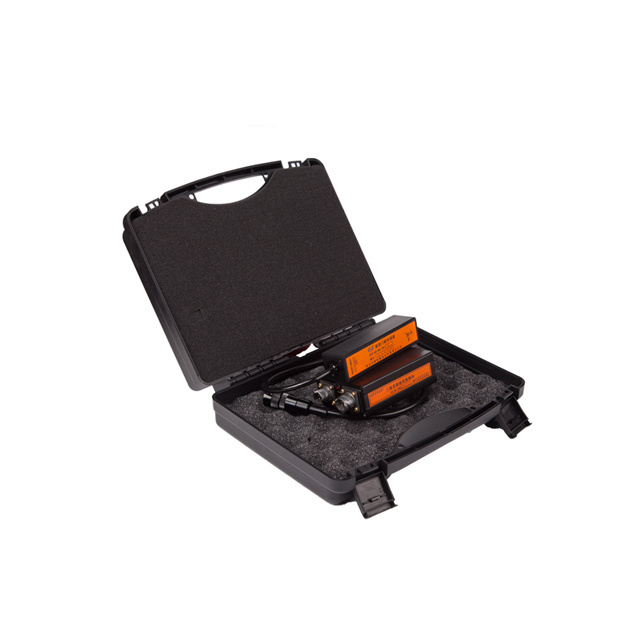

Three Axis Micro Fluxgate Magnetometer with High Accuracy
The Micro Fluxgate Magnetometer is composed of magnetic fluxgate sensor, data collective module, host computer and the software. The equipment adopts mobile power or regulated power supply as the power for the data collective module and the sensor. The fluxgate sensor collects the magnetic signal, while the data collective module collect these signals and realize high precision AD transfer. The transferred signal will be passed to the host computer via data cable and finally these signals will be displayed by two-dimension waveform or numerical value after treatment of the software.
Additionally, the equipment could save the data, which is convenient for subsequent treatment of these testing information.
| Item | Index | Parameters | |
| Performance | Measuring Range | ±100000nT | |
| Precision | 1nT(Type A) | ||
| 0.1nT(Type B) | |||
| Indicating Precision | 0.01%+Indicating Value | ||
| Sampling Frequency | 200Hz | ||
| Working Power Supply | +5VDC | ||
| Electric Parameters | Power Supply | Mobile Power | Able to work over 9.5h for one charge |
| Stable Power | Able to work constantly | ||
| Power Consumption | ≤4W(not contain the host computer) | ||
| Working Temperature | -25℃~80℃ | ||
| Mechanical Parameters | Dimension | Probe | 30*30*120*mm |
| Data Collect Module | 35*76*100*mm | ||
| Weight | Probe | ≤155g | |
| Data Collect Module | ≤252g | ||
| Functions/Models | Indication Unit | nT/Gs/Oe | |
| Measurement Model | Absolute/relative value measure | ||
| Data Transfer | Data Wire Transfer/Net Wire Transfer | ||
| Data Storage | Document form/Binary Form | ||
| Indicating Method | Wave Indication | ||
| Value Indication | |||
| Zero Setting | Under zero magnetism | ||
It is especially suitable for the laboratories of scientific research:
- Space magnetic measurement
- Alternating magnetic field measurement
- Environmental magnetic field monitor
- Magnetic field feature identification
- Multi-dimensional alternating magnetic field measurement
- Residual magnetic measurement
- Shield effect test
