Quick Details
-
Control System Brand:
-
Cypcut
-
Cutting Thickness:
-
0-20mm
-
Control Software:
-
Cypcut
-
Place of Origin:
-
Henan, China
-
Weight (KG):
-
11000 KG
Quick Details
-
Laser Type:
-
Fiber Laser
-
Cutting Speed:
-
40m/min
-
Cooling Mode:
-
WATER COOLING
-
Control System Brand:
-
Cypcut
-
Cutting Thickness:
-
0-20mm
-
Control Software:
-
Cypcut
-
Place of Origin:
-
Henan, China
-
Weight (KG):
-
11000 KG
Why Choose Us
From the Customer Service Manager：
It is a great pleasure to have you visit our products. We are a laser equipment company in Henan, China--Henan FYD Intelligent Equipment Co. We were founded in 2011 and have been dedicated to the research, development, production and sales of metal processing equipment. Our main products are laser cutting machine, laser welding machine and laser cleaning machine, and we are very welcome customers from all countries to purchase from our factory or store. We will sincerely provide you with the best service and we cherish every customer.
How to Transport
Dear customer, we know that you attach great importance to the choice of transportation mode. In order to meet your needs, we
offer two common transportation modes: FOB and DDP , if you are looking for affordable price and our company has the qualification
of customs clearance, FOB is the ideal choice for you, and you can pick up the goods by yourself after arriving at the port,
avoiding unnecessary costs. If you want to enjoy more convenient door-to-door service, DDP is your best choice, we will deal with
customs clearance and tax matters for you, you just need to collect the goods at your doorstep easily. Whichever way you choose,
we will be happy to serve you and make sure your goods are delivered safely and on time.
offer two common transportation modes: FOB and DDP , if you are looking for affordable price and our company has the qualification
of customs clearance, FOB is the ideal choice for you, and you can pick up the goods by yourself after arriving at the port,
avoiding unnecessary costs. If you want to enjoy more convenient door-to-door service, DDP is your best choice, we will deal with
customs clearance and tax matters for you, you just need to collect the goods at your doorstep easily. Whichever way you choose,
we will be happy to serve you and make sure your goods are delivered safely and on time.
After-sales Services
We provide a one-year long-distance warranty. Once the goods arrive, I will pull a group for you. There are our after-sales personnel and technology in it. We will train you and answer your questions at any time. Accessories support free replacement, only freight is required.
Also, if you need on-site installation, debugging and training, we also provide them free of charge. You only need to provide air tickets and accommodation.
One year later, we will also provide maintenance services as usual. In the future, we may set up maintenance points in North American,Europe and Southeast Asia, which is still under planning, because more and more our machines are sold to these places.
Product Details
Product component
Gantry type mechanical structure welded bed
1. The bed is welded and molded with high-quality steel plate, thus the stability of the machine tool is greatly improved and the effect of cutting metal is good.
2. Repeated annealing and stress relief treatment, thus ensuring that the bed body is not deformed for twenty years.
1.China famous brand of laser source.
2.High stability, life up to 100,000 hours.
3.The best after-sales warranty, free you from worries.
Professional industry water chiller
1. Specially developed for fiber laser equipment, perfectly compatible with all brands of lasers.
2. Full series of environmentally friendly refrigerant, export without worry
3. Professional laboratory comprehensive testing factory, two years of free national warranty
4. Stable and reliable performance, low failure rate, energy saving and power saving.
Ospri LC20L welding head
1.Strong cutting, waterproof and dustproof, scratch-resistant and abrasion-resistant.
2.Fast cutting speed, high quality and long service life.
2.Fast cutting speed, high quality and long service life.
JAPAN SHIMPO GEARBOX
Nidec SHIMPO gearheads, which utilize helical gears, have a smoother connection between the teeth than conventional spur
gears,thus reducing noise.
gears,thus reducing noise.
Cast Aluminum Gantry
1.It is made of pure aluminium cast with aviation material at high temperature.
2.The cast aluminium determines the weight of the gantry is very light and the speed is faster when working .
2.High quality and long life.
2.The cast aluminium determines the weight of the gantry is very light and the speed is faster when working .
2.High quality and long life.
Industrial Machine bed
1.Machine body processed by high accuracy metal machining center.
2.Our beds made by high temperature quenching, tempering, cooling and so on .
3.Welded industrial body ,heavy weight.
2.Our beds made by high temperature quenching, tempering, cooling and so on .
3.Welded industrial body ,heavy weight.
Japan Shinbo Gearbox
1.Output torque
2. High torque
3.Fast running speeds
27-inch touch screen
It has the advantages of intuitive, informative, efficient, easy to maintain and durable, which can improve the overall performance and use experience of the laser cutting machine.
Taiwan HIWIN guideway
It has high abrasion resistance and corrosion
resistance,and can operate stably for a long timein harsh environments.
Extra Thick Knife Strip Work Surfaces
The laser cutting machine has the advantages of strong bearing capacity, high stability, long service life, easy maintenance and strong customization.
Japan Shinbo Gearbox
1.Output torque
2. High torque
3.Fast running speeds
3.Fast running speeds
Consumable Parts
Protective Mirror
Using life
:
300-500 hours
Price
:
US $1.05 / Set
Give together with machine
:10
set.
(We advise to order extra 40 sets as spare part)
Focusing lens
Using life
:
4000-5000 hours
Price : US $1.75 / Set
Give together with machine : 1 set (We advise to order extra 3 sets as spare part)
Price : US $1.75 / Set
Give together with machine : 1 set (We advise to order extra 3 sets as spare part)
Collimating mirror
Using life
:4000-5000 hours
Price : US $1.75 / Set
Give together with machine :1 set (We advise to order extra 3 sets as spare part)
Price : US $1.75 / Set
Give together with machine :1 set (We advise to order extra 3 sets as spare part)
Cutting Nozzle
Using life
:300-500 hours
Price : US $2.45 - 2.80/ Set
Give together with machine :40 set. (We advise to order extra 35 sets as spare part)
Price : US $2.45 - 2.80/ Set
Give together with machine :40 set. (We advise to order extra 35 sets as spare part)
Ceramic ring
Using life
:
4000-5000 hours
Price : US $12.25 / Set
Give together with machine :5 set (We advise to order extra 5 sets as spare part )
Price : US $12.25 / Set
Give together with machine :5 set (We advise to order extra 5 sets as spare part )
Product Paramenters
|
Equipment name
|

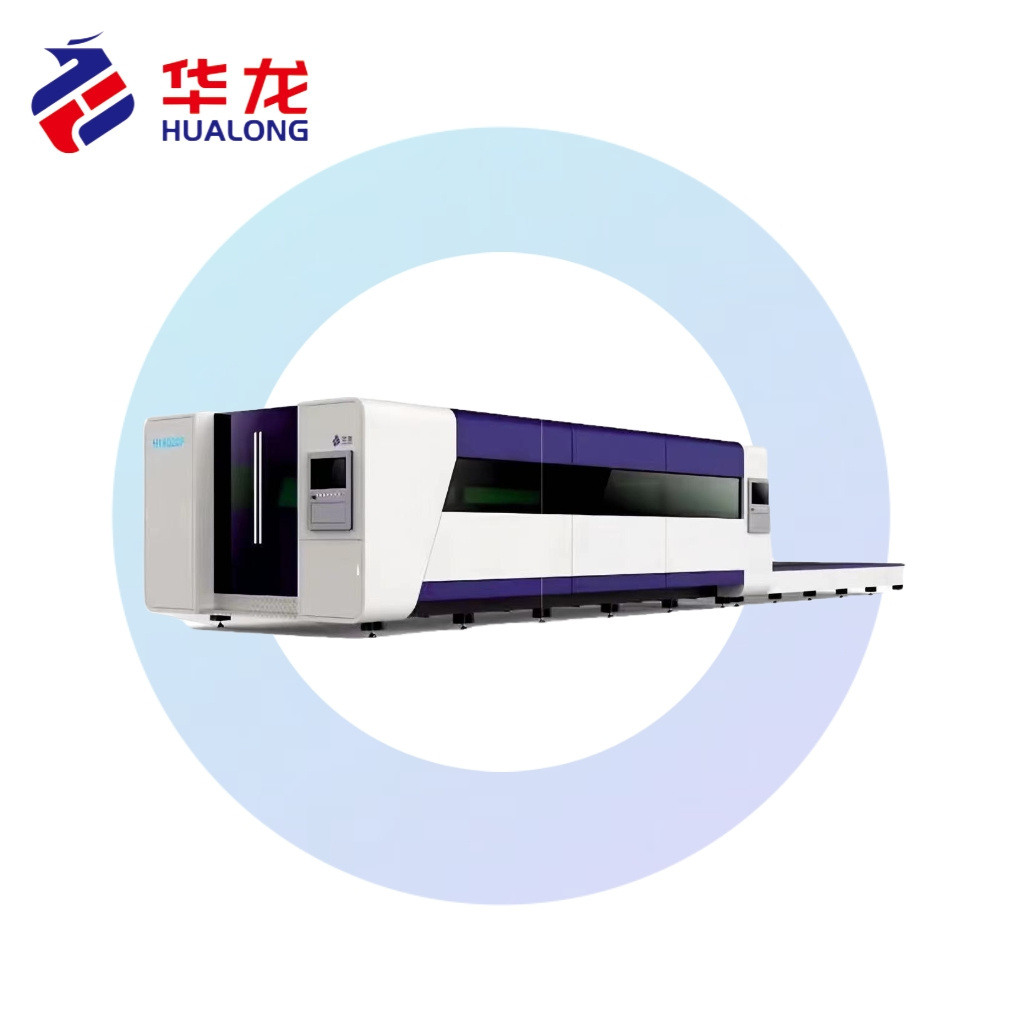

Fiber laser cutting machine
|
|
|
|
|||
|
Model
|
HL-3015
|
HL-4015/4020
|
HL-6020/6025
|
HL-8025
|
|||
|
Power
|
1500w、3000w、6000w、8000w、12000w
|
|
|
|
|||
|
Table
|
single platform、open switchboard、large wrap around switchboard、rolling platform
|
|
|
|
|||
|
X-axis
|
1550mm
|
1550mm/2050mm
|
2050mm/2550mm
|
2550mm
|
|||
|
Y-axis
|
3050mm
|
4050mm
|
6050mm
|
8050mm
|
|||
|
Z-axis
|
150mm
|
150mm
|
150mm
|
150mm
|
|||
|
X/Y axis positioning accuracy
|
±0.03mm/m
|
|
|
|
|||
|
Max speed
|
110m/min
|
|
|
|
|||
|
Max acceleration
|
1.2G
|
|
|
|
|||
|
Rated voltage
|
380V
|
|
|
|
|||
|
Frequency
|
50Hz standard，60Hz customizable
|
|
|
|
|||
|
Protection class
|
IP54
|
|
|
|
|||
Equipment Configuration
|
Serial number
|
Equipment name
|
Quantity
|
Country of origin and manufacturer's name
|
||
|
1
|
Laser
|
|
|
||
|
(1)
|
Fiber laser
|
1 set
|
MAX
|
||
|
2
|
External light path and cutting head
|
|
|
||
|
(1)
|
Special laser cutting head
|
1 set
|
RAYTOOLS
|
||
|
3
|
Machine tool host
|
|
|
||
|
(1）
|
Machine tool bed
|
1 set
|
High temperature annealed stress relieved bed
|
||
|
(2)
|
Navigation
|
1 set
|
HIWIN
|
||
|
(3)
|
Precision special rack
|
3 sets
|
HIWIN
|
||
|
(4)
|
3Reduction gear
|
3 sets
|
America shimpo
|
||
|
(5)
|
Electronic components
|
A number of
|
America Honeywell
|
||
|
(6)
|
Pneumatic Components
|
A number of
|
Japan SMC
|
||
|
(7）
|
Servo motors and drives
|
4 sets
|
Japan Fujifilm/Germany.LEAD-MOTION
|
||
|
4
|
CNC and software systems
|
|
|
||
|
(1）
|
Numerical control system (including control software)
|
1 set
|
Shanghai BOCHU
|
||
|
5
|
Standard Accessories
|
|
|
||
|
(1）
|
Water cooler
|
1 set
|
HanLi(dual temperature and dual control)
|
||
Cost Analysis
|
Laser power
|
Assisted gas + Consumption
|
Air(stainless steel)
|
02 (stainless steel)
|
N2(stainless steel)
|
|
1000W
|
Laser power
|
2.2KW
|
2.2KW
|
2.2KW
|
|
|
Water Chiller Group
|
2.8KW
|
2.8KW
|
2.8KW
|
|
|
Host Machine
|
5.4KW
|
5.4KW
|
5.4KW
|
|
|
Dust Exhausting Equipment
|
3KW
|
3KW
|
3KW
|
|
|
Total Power
|
13.4KW
|
13.4KW
|
13.4KW
|
|
|
Average Power Consumption(Take80% Cutting Efficiency)
|
13.4x80%=10.72KW
|
13.4x80%=10.72KW
|
13.4x80%=10.72KW
|
|
|
Gas Consumption
|
150L/h
|
30L/h
|
150L/h
|
|
2000W
|
Laser power
|
5KW
|
5KW
|
5KW
|
|
|
Water Chiller Group
|
3.1KW
|
3.1KW
|
3.1KW
|
|
|
Host Machine
|
6KW
|
6KW
|
6KW
|
|
|
Dust Exhausting Equipment
|
3KW
|
3KW
|
3KW
|
|
|
Total Power
|
17.1KW
|
17.1KW
|
17.1KW
|
|
|
Average Power Consumption(Take80% Cutting Efficiency)
|
17.1x80%=13.68KW
|
17.1x80%=13.68KW
|
17.1x80%=13.68KW
|
|
|
Gas Consumption
|
150L/h
|
30L/h
|
150L/h
|
|
3000W
|
Laser power
|
7.5KW
|
7.5KW
|
7.5KW
|
|
|
Water Chiller Group
|
5KW
|
5KW
|
5KW
|
|
|
Host Machine
|
6KW
|
6KW
|
6KW
|
|
|
Dust Exhausting Equipment
|
3KW
|
3KW
|
3KW
|
|
|
Total Powe
|
21.5KW
|
21.5KW
|
21.5KW
|
|
|
Average Power Consumption(Take80%Cutting Efficiency)
|
21.5x80%=17.2KW
|
21.5x80%=17.2KW
|
21.5x80%=17.2KW
|
|
|
Gas Consumption
|
200L/h
|
200L/h
|
200L/h
|
|
4000W
|
Laser power
|
10KW
|
10KW
|
10KW
|
|
|
Water Chiller Group
|
6.5KW
|
6.5KW
|
6.5KW
|
|
|
Host Machine
|
6KW
|
6KW
|
6KW
|
|
|
Dust Exhausting Equipment
|
3KW
|
3KW
|
3KW
|
|
|
Total Power
|
25.5W
|
25.5W
|
25.5W
|
|
|
Average Power Consumption(Take80%Cutting Efficiency)
|
25.5x80%=20.4KW
|
25.5x80%=20.4KW
|
25.5x80%=20.4KW
|
|
|
Gas Consumntior
|
200L/h
|
30-40L/h
|
150-200L/h
|
|
6000W
|
Laser power
|
15KW
|
15KW
|
15KW
|
|
|
Water Chiller Group
|
8KW
|
8KW
|
8KW
|
|
|
Host Machine
|
8KW
|
8KW
|
8KW
|
|
|
Dust Exhausting Equipment
|
3KW
|
3KW
|
3KW
|
|
|
Gas Consumntior
|
200L/h
|
30-50L/h
|
150-220L/h
|
|
8000W
|
Laser power
|
20KW
|
20KW
|
20KW
|
|
|
Water Chiller Group
|
9KW
|
9KW
|
9KW
|
|
|
Host Machine
|
8KW
|
8KW
|
8KW
|
|
|
Dust Exhausting Equipment
|
3KW
|
3KW
|
3KW
|
|
|
Total Power
|
40KW
|
40KW
|
40KW
|
|
|
Average Power Consumption(Take80%Cutting Efficiency)
|
40x80%=32KW
|
40x80%=32KW
|
40x80%=32KW
|
|
|
Gas Consumption
|
200L/h
|
30-50L/h
|
150-220L/h
|
|
10000W
|
Laser power
|
25KW
|
25KW
|
25KW
|
|
|
Water Chiller Group
|
10KW
|
10KW
|
10KW
|
|
|
Host Machine
|
10KW
|
10KW
|
10KW
|
|
|
Dust Exhausting Equipment
|
3KW
|
3KW
|
3KW
|
|
|
Total Power
|
48KW
|
48KW
|
48KW
|
|
|
Average Power Consumption(Take80%Cutting Efficiency)
|
48x80%=38.4KW
|
48x80%=38.4KW
|
48x80%=38.4KW
|
|
|
Gas Consumption
|
200L/h
|
30-50L/h
|
150-220L/h
|
|
12000W
|
Laser power
|
30KW
|
30KW
|
30KW
|
|
|
Water Chiller Group
|
12KW
|
12KW
|
12KW
|
|
|
Host Machine
|
10KW
|
10KW
|
10KW
|
|
|
Dust Exhausting Equipment
|
3KW
|
3KW
|
3KW
|
|
|
Total Power
|
55KW
|
3KW
|
3KW
|
|
|
Average Power Consumption(Take80%Cutting Efficiency)
|
55x80%=44KW
|
55x80%=44KW
|
55x80%=44KW
|
|
|
Gas Consumption
|
200L/h
|
30-50L/h
|
150-220L/h
|
FAQ
1、
Are you a trading company or a manufacturer?
We are the laser manufactuer, welcome to visit our factory!
2、
How can I choose the most suitable machine for me?
We have different laser power and size model for various material and needs of efficiency,etc.You can tell us your material by picture or video, so that we can make the best suggestion, and then we can find the similar material and take the testing video for you, and we also support real-time video, you can observe the cleaning effect more directly.
3、
Can you give me a sample?
Yes, please contact customer service to inform the sample material thickness, we can sample shooting video, free of charge!
4
、
What payment methods do you support?
Credit/Debit Card /Online Transfer/Online Transfer /TT wire transfer .
5、
How do you package it?
Sturdy wooden crate packaging.
6、
I am a dealer, is there a dealer policy？
Yes, we welcome dealers with dealer exclusive pricing and annual step rebate policy, please contact customer service for details!
Contact us to get more details and the latest quotation.
