Quick Details
-
Extra Services:
-
Cut To Length
-
Power:
-
CNC
-
Machine Type:
-
Beading Machine
-
Raw Material:
-
Steel Bar
-
color:
-
white
Quick Details
-
Place of Origin:
-
Shandong, China
-
Certification:
-
ce
-
After-sales Service Provided:
-
Online support, Video technical support, Engineers available to service machinery overseas
-
Extra Services:
-
Cut To Length
-
Power:
-
CNC
-
Machine Type:
-
Beading Machine
-
Raw Material:
-
Steel Bar
-
color:
-
white

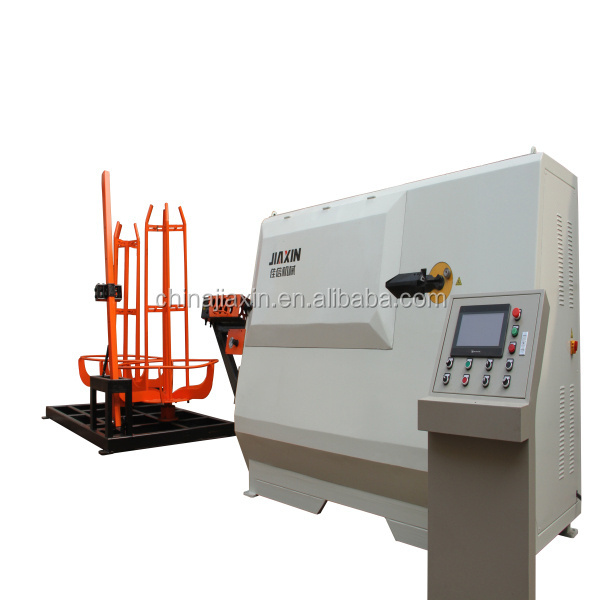

JIAXIN automatic stirrup bending machine the cheapest price
1, Integrated CNC feeding device can make sure high accuracy;
2 , Powerful database which can save almost five hundred shapes;
3 , Synchronous belt transmission make sure high accuracy and low maintain cost;
4 , Auto-control supply frame to prevent a mess;
5 , Double line feeding system can reduce labor intensity highly;
6 , Intelligent fault recognition alarm system makes it easy to maintain; 7 , Automatic door design makes it easy for internal repairs;
8 , Split cutter holder consumption quite low cost;
9 , Gas source integration aseismic design make sure smooth working and easy transportation;
10 , Control system consist of Fatex servo controller, Fatex PLC, Fatex LCD.
|
Production capacity |
Single wire |
Φ5 – 13 [mm] |
|
|
Double wire |
Φ5 – 10 [mm] |
|
Max. bending angle |
|
±180° [double direction] |
|
Max. bending speed |
|
1200 [°/sec] |
|
Max. pulling speed |
|
110 [m/min] |
|
Mandrel diameter |
|
Φ25 – Φ32 [mm] |
|
Max. length of the stirrup side (diagonal) |
2,000 [mm] |
|
|
Min. length of the stirrup side |
120 [mm] |
|
|
Length tolerance |
|
± 1 [mm] |
|
Bending tolerance |
|
± 1° |
|
Average air-compressed consumption |
6 [l/min] |
||
|
Average electric power consumption |
6 [Kw/h] |
|
|
|
Labeled electric power |
28 [Kw] |
|
|
|
Voltage |
380 [v] - |
50 [Hz] - 3[phase] |
|
|
Overall machine weight |
4,800 |
[Kg] |
|
|
Overall dimension |
5,100 |
× |
1,300 × 2,100 [mm] |
1.We provide you the friendly English User manual and Testing Video for free.
2.24 hours technical support by email or calling.
3.24 Months warranty Quality guarantee and Charge free technical support forever.
4.Free training to make sure you master the operating of automatic stirrup bending machine , not including programming training.
5.Videos of operating the machine are available.
1.Quality assurance both for our products and service for after-sales.
2.Favorable price.
3.Great variety of products.
4.Attractive design.
5.Environment Friendly Technology
Welcome to visit our factory .
If You Have Any Question, Please Feel Free To Let Us Know!
