Environmental protection and good durability.
Low vibration and low noise.
High efficiency, heavy loading and silence.
Explore More Products
- Product Details
- {{item.text}}
Quick Details
-
Voltage:
-
380V/50Hz/3Ph
-
Dimension(L*W*H):
-
900*670*880 mm
-
Weight:
-
195Kg
-
Marketing Type:
-
New Product 2022
-
After-sales Service Provided:
-
Free spare parts
-
Certification:
-
CE/SGS
-
Application:
-
Gas transfer and filling
-
Feature:
-
High Efficiency
-
Pressure:
-
from 2 to 50MPa
-
warranty:
-
13 months
-
MOQ:
-
1 Set
-
Name:
-
industrial compressor
-
Cooling method:
-
Air Cooled
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Suncenter
-
Model Number:
-
SST-10A
-
Voltage:
-
380V/50Hz/3Ph
-
Dimension(L*W*H):
-
900*670*880 mm
-
Weight:
-
195Kg
-
Marketing Type:
-
New Product 2022
-
After-sales Service Provided:
-
Free spare parts
-
Certification:
-
CE/SGS
-
Application:
-
Gas transfer and filling
-
Feature:
-
High Efficiency
-
Pressure:
-
from 2 to 50MPa
-
warranty:
-
13 months
-
MOQ:
-
1 Set
-
Name:
-
industrial compressor
-
Cooling method:
-
Air Cooled

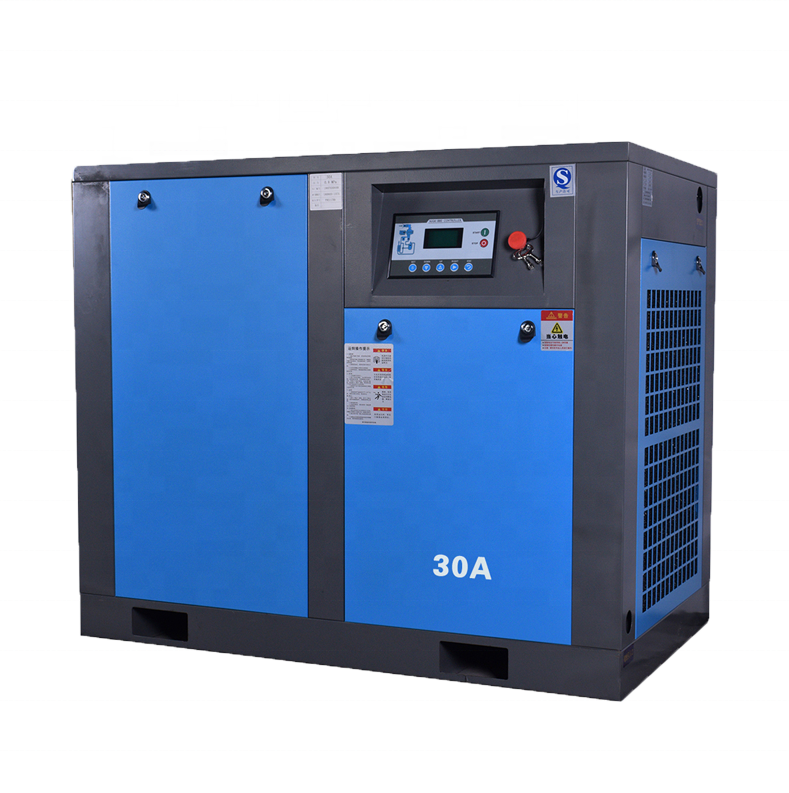

Constant Frequency Air Compressor
Application
Constant frequency air compressor adopts industry-leading screw air end, high efficiency
and low rotating speed.Adopts the third generation tooth type of rotor, cutting-edge geometric design, stable, reliable, energy saving and long service life. Adopts unique low-speed motor, high stability, 3-5% more efficient than similar product. Direct connection structure with 100% transmission efficiency without any loss, low maintenance cost, easy disassembly, greatly reduces downtime. The coaxial integrated structure reduces the use of quick-wear parts, owns 100% transmission efficiency. Low speed fan is used for long life. The cooler and fan can be dismantled separately. It can work in ambient temperature of 50°C. It is equipped with intelligent control system to ensure automatic and intelligent operation and it detects output air pressure and temperature etc. The intake valve controls the output air compressure within a range preset for a stable output air pressure.
and low rotating speed.Adopts the third generation tooth type of rotor, cutting-edge geometric design, stable, reliable, energy saving and long service life. Adopts unique low-speed motor, high stability, 3-5% more efficient than similar product. Direct connection structure with 100% transmission efficiency without any loss, low maintenance cost, easy disassembly, greatly reduces downtime. The coaxial integrated structure reduces the use of quick-wear parts, owns 100% transmission efficiency. Low speed fan is used for long life. The cooler and fan can be dismantled separately. It can work in ambient temperature of 50°C. It is equipped with intelligent control system to ensure automatic and intelligent operation and it detects output air pressure and temperature etc. The intake valve controls the output air compressure within a range preset for a stable output air pressure.
Microcomputer Control System
Low vibration and low noise.
High efficiency, heavy loading and silence.
|
Model
Specifications |
|
SST-10A
|
SST--15A
|
SST-20A
|
SST-25A
|
SST-30A
|
SST-40A
|
SST-50A
|
|||||||
|
Free Air Delivery/
Working Pressure (m³/Min,MPa) |
|
1.2/0.7
|
1.65/0.7
|
2.5/0.7
|
3.2/0.7
|
3.71/0.7
|
5.3/0.7
|
6.8/0.7
|
|||||||
|
|
|
1.1/0.8
|
1.5/0.8
|
2.3/0.8
|
3.0/0.8
|
3.6/0.8
|
5.0/0.8
|
6.20.8
|
|||||||
|
|
|
0.95/1.0
|
1.3/1,0
|
2,1/1.0
|
2.7/1.0
|
3.2/1.0
|
4.5/1.0
|
5,6/1.0
|
|||||||
|
|
|
0.8/1.2
|
1.1/1.2
|
1.9/1.2
|
2.4/1.2
|
2.7/1.2
|
4.0/1.2
|
5.0/1.2
|
|||||||
|
Amblent Temperature
|
|
-5℃～+45℃
|
|
|
|
|
|
|
|||||||
|
|
|
|
|
|
|
|
|
|
|||||||
|
Cooling Mode
|
|
Air Cooling
|
|
|
|
|
|
|
|||||||
|
Discharge Temperature
|
|
≤Environment Temp+15℃
|
|
|
|
|
|
|
|||||||
|
|
|
|
|
|
|
|
|
|
|||||||
|
Lubricant(Liter)
|
|
8
|
15
|
|
|
|
|
25
|
|||||||
|
|
|
|
|
|
|
|
|
|
|||||||
|
Noise Db(A)
|
|
68±2
|
|
|
70±2
|
|
72±2
|
|
|||||||
|
Driven Mode
|
|
Direct Drive
|
|
|
|
|
|
|
|||||||
|
|
|
|
|
|
|
|
|
|
|||||||
|
Electricity
|
|
380V/50Hz/3Ph
|
|
|
|
|
|
|
|||||||
|
|
|
|
|
|
|
|
|
|
|||||||
|
Power(KW)
|
|
7.5
|
11
|
15
|
18.5
|
22
|
30
|
37
|
|||||||
|
Starting Mode
|
|
Start-Delta Start
|
|
|
|
|
|
|
|||||||
|
|
|
|
|
|
|
|
|
|
|||||||
|
Dimension
|
Length mm
|
900
|
1080
|
1080
|
1380
|
1380
|
1380
|
1500
|
|||||||
|
|
Width mm
|
670
|
750
|
750
|
850
|
850
|
850
|
1000
|
|||||||
|
|
Height mm
|
880
|
1000
|
1000
|
1160
|
1160
|
1160
|
1330
|
|||||||
|
Weight(KG)
|
|
195
|
292
|
311
|
420
|
443
|
520
|
654
|
|||||||
|
Air Outiet Pipe Diameter(Inch)
|
|
Rp1/2
|
Rp3/4
|
Rp3/4
|
Rp1
|
Rp1
|
Rp1
|
R1,1/2
|
|||||||
About Suncenter
Dongguan Suncenter Fluid Control Equipment Co., Ltd
is the member company of Suncenter Group, which is located in Dongguan city of Guangdong province in China. With more than 15 years experiences in fluid pressure exchange and controlling field, we provide various kinds of high pressure booster pumps, systems and solutions to the customers all over the world. Due to our best product quality, competitive price as well as excellent after-sales service, we have win a great reputation in the field.
Our main products including:
High Pressure Booster Pumps ( Gas Booster Pump, Air Driven Liquid Pump, Air Amplifiers)
High Pressure Systems (Gas/Liquid Booster System,Gas compressors,Hydro test bench,
Chemical injection system,CO2/FM200 filling machine, Tube Expanding Machine)
High Pressure Test Equipment(Hydraulic/Burst/Hydrostatic test machine,Cylinder test machine, Valve test bench,Impulse Testing Machine, etc.)
Product Application
Oil Industry, Gas Industry, Chemical Industry, Fire Fighting, Research Institutions etc.
Our service
13 months’ free warranty since the purchasing date and free technical support during lifetime
