The laser marking machine belongs to non-contact processing, does not produce mechanical stress on the processing material, does not damage the processed material, is accurate and exquisite; can
mark any graphics, text, barcode, two-dimensional code, can realize automatic numbering, print serial number.
The batch number, date, etc., after being marked by the laser marking machine, will not disappear naturally due to environmental relations, but
will remain for a long time.
- Product Details
- {{item.text}}
Quick Details
-
Cooling Mode:
-
Air Cooling
-
Control Software:
-
EZCAD
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Zhancheng
-
Marking Head Brand:
-
Galvenometer Head
-
Weight (KG):
-
60 KG
-
Core Components:
-
laser source
-
Certification:
-
ce
-
After-sales Service Provided:
-
Field installation, commissioning and training
-
Product name:
-
Fiber Laser Marking Machine
-
Laser source:
-
Raycus /JPT/ MAX
-
Marking Speed:
-
0-7000mm/s
-
Applicable Material:
-
Metal Plastic
-
Marking area:
-
110*110mm/ 150*150mm/175*175mm/200*200mm/300*300mm
-
Power supply:
-
220V/ 50Hz/2kVA
-
Software:
-
EZCAD Control Software
-
Cooling:
-
Air Cooled
Quick Details
-
Working Accuracy:
-
0.01mm
-
Graphic Format Supported:
-
AI, BMP, Dst, Dwg, DXF, DXP, LAS, PLT, Mini Separate Portable Type Fiber Laser Marking Machine with Low Price
-
Laser Type:
-
Fiber Laser
-
Cooling Mode:
-
Air Cooling
-
Control Software:
-
EZCAD
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Zhancheng
-
Marking Head Brand:
-
Galvenometer Head
-
Weight (KG):
-
60 KG
-
Core Components:
-
laser source
-
Certification:
-
ce
-
After-sales Service Provided:
-
Field installation, commissioning and training
-
Product name:
-
Fiber Laser Marking Machine
-
Laser source:
-
Raycus /JPT/ MAX
-
Marking Speed:
-
0-7000mm/s
-
Applicable Material:
-
Metal Plastic
-
Marking area:
-
110*110mm/ 150*150mm/175*175mm/200*200mm/300*300mm
-
Power supply:
-
220V/ 50Hz/2kVA
-
Software:
-
EZCAD Control Software
-
Cooling:
-
Air Cooled

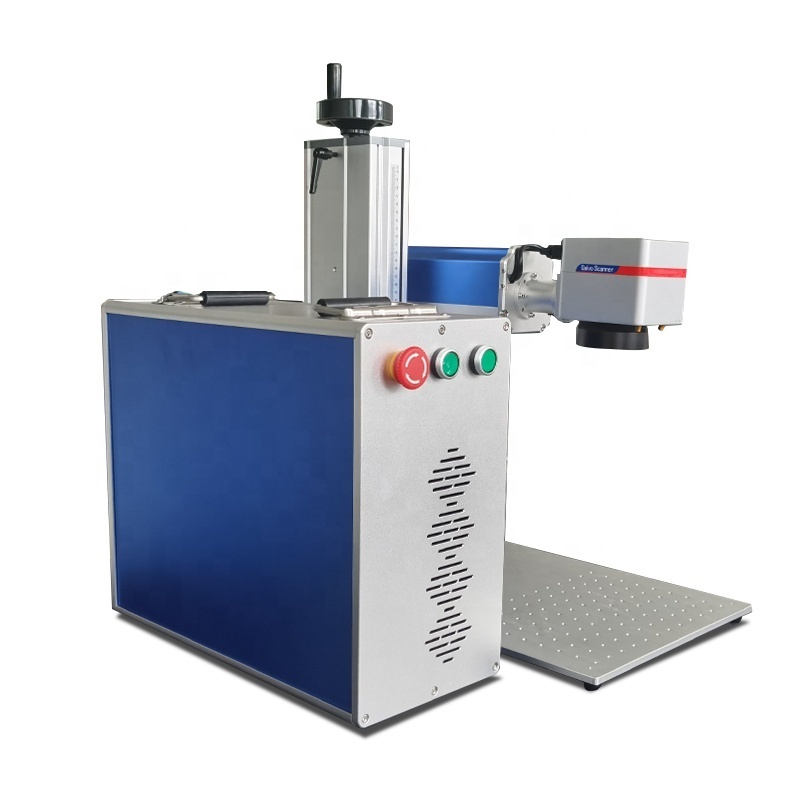

ZC Laser Silver Jewelry Laser Engraver Logo 20W 30W Small Fiber Laser Marking Machine For Metal Material
Products Description
Specifications
Fiber Laser Marking Machine Features:
The application of the laser marking machine to engrave letters on the steel plate with laser has the advantages of
fast speed, clear lettering, and not easy to be erased.
|
Fiber Laser Marking Machine Configurations, Laser Solution Can be Customized
Welcome for you inquiry!! |
|
|
|
Laser Source
|
Raycus / JPT / IPG / MAX
|
|
|
Power Options
|
20W 30W 50W 60W 80W
|
|
|
Galvo Head
|
Sino-Galvo RC1001 / SG7110 / AF2206 / OUYA
|
|
|
Control Card
|
BJJCZ / BSL control card
|
|
|
Control Software
|
EZCAD2.14.16 / BSL APP
|
|
|
Marking Area
|
70*70 / 110*110 / 150*150 / 175*175 / 220*220 / 330*330mm
|
|
|
Column Stand
|
Manual / Electric , 50cm / 68cm / 80cm
|
|
|
Rotary Size
|
50mm, 65mm, 80mm, 100mm, 120mm, 160mm, biaxial rotary etc...
|
|
Core Parts
Sino Galvo Scanning Head
Marking Speed: 7000mm/s
Positioning Speed: 10000mm/s
Tracking Error: ≤180usSmall step response time: ≤0.4ms
Tracking Error: ≤180usSmall step response time: ≤0.4ms
Galvo head options:
RC1001; SG7110; OUYA
Fiber Laser Source
High peak power, high single pulse energy, and optional spot diameter. They can be widely used in non-metallic materials, such as gold, silver, copper, aluminum and non-high reflective materials such as stainless steel. In the fields of marking, precision machining, graphic engraving, etc., its marking application process is cheaper than traditional lasers and has more stable performance.
Laser source options:
Raycus; JPT; MAX; IPG
BJJCZ Control Card
The international popular JCZ board and EZCAD operating software, easy to learn, accompanied by software manuals, to facilitate customer learning,
supporting formats of PLT,AI,DXF,BMP,JPG, etc
Control card options:
BSL; BJJCZ EZCAD2; EZCAD3; Flying Card for online marking
Up And Down Column
1.Our standard up and down column is 50cm in height, users can adjust the focal length of laser beam through the manual handle.
2.If you choose bigger marking size lens, we recommend you highten the column to 80cm.
3.If you choose autofocus galvo scanning head, we will configure electric up and down column for you.
2.If you choose bigger marking size lens, we recommend you highten the column to 80cm.
3.If you choose autofocus galvo scanning head, we will configure electric up and down column for you.
Column height option: 50cm/70cm/80cm
Electric Button
Emergency stop button;
Laser button;
Red light button
Metal material of higher quality and long working time.
Red light button
Metal material of higher quality and long working time.
Button options:
key button; metal press button; plastic press button
Application&Advantage
The machine can handle all metal materials, such as gold, silver, copper, stainless steel, aluminum, etc.; and some non-metal materials.
1.Electronic Components: Resistors, Capacitors, Chips, Printed Circuit Boards, Keyboard, etc. 2.Mechanical Parts: Bearings, Gears, Standard Parts, Motor, etc.
3.Instrument: Panel Board, Nameplates, Precision equipment, etc.
4.Hardware Tools: Knives, Tools, Measuring Tools, Cutting Tools, etc.
5.Automobile Parts: Pistons&Rings, Gears, Shafts, Bearings, Clutch, Lights.
6. Daily Necessities: Handicrafts, Zipper, Key Holder, Sanitary Ware, etc.
7. Part of nonmetals such as plastic animal ear tag, ear tag marking, pig ear tag marking, pet bowl marking etc.
3.Instrument: Panel Board, Nameplates, Precision equipment, etc.
4.Hardware Tools: Knives, Tools, Measuring Tools, Cutting Tools, etc.
5.Automobile Parts: Pistons&Rings, Gears, Shafts, Bearings, Clutch, Lights.
6. Daily Necessities: Handicrafts, Zipper, Key Holder, Sanitary Ware, etc.
7. Part of nonmetals such as plastic animal ear tag, ear tag marking, pig ear tag marking, pet bowl marking etc.
——Click Belowing Sample Picture To Watch Video Online——
Nylon Plastic Ear Tag
The text information of the two-dimensional code of ear tags is marked with a laser marking machine, which has the advantage of being color-resistant and permanent.
Deep Relief Engraving
High power machine is suitable for deep engraving, specially for relief result, we recommend you choose 2.5D machine to make STL. file.
Bottle Ring Marking
The machine can be equipped with rotating shafts and other accessories, and can mark on curved surfaces such as bottles, cups, bracelets, etc.
Curve Surface/ Different Height Marking
The marking object is not limited to plane marking, it can be applied to curved surfaces of different heights, and a 3D machine can be selected.
Shipping And Packing
We support two types of package for machine: Wooden box and Express box
Wooden box can protect the machine well during long trip by sea, and express box with customized sponge will protect machine from damage during air and express shipping, also will help customer save more shipping cost.
1. First we will wrap it with plastic wrap to prevent dust;
2. Then wrap a layer of foam to protect the corners and corners;
3. Wrap the carton with another layer to fix the machine,
4. And finally use a wooden box on the outside.
**The size of the wooden box is customized, so the machine will not shake and bump corners.
