- Product Details
- {{item.text}}
Quick Details
-
Warranty:
-
1 year
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
XBD
-
Model Number:
-
XBD-1640
-
Torque:
-
10.4mNm (Nominal)
-
Motor Size:
-
Dia16mm*L40mm
-
Rated Voltage:
-
24V
-
Motor type:
-
Coreless Gear Motor
-
Color:
-
Black
-
Application:
-
Electronic Lock, Electric Screw Driver
-
No load speed:
-
13000rpm
-
No load current:
-
25mA
-
Stall current:
-
3.0A
-
Stall torque:
-
52.0mNm
-
Feature:
-
High Torque Low Rpm
Quick Details
-
Speed(RPM):
-
10400rpm (Nominal)
-
Continuous Current(A):
-
0.6A
-
Efficiency:
-
IE 2
-
Warranty:
-
1 year
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
XBD
-
Model Number:
-
XBD-1640
-
Torque:
-
10.4mNm (Nominal)
-
Motor Size:
-
Dia16mm*L40mm
-
Rated Voltage:
-
24V
-
Motor type:
-
Coreless Gear Motor
-
Color:
-
Black
-
Application:
-
Electronic Lock, Electric Screw Driver
-
No load speed:
-
13000rpm
-
No load current:
-
25mA
-
Stall current:
-
3.0A
-
Stall torque:
-
52.0mNm
-
Feature:
-
High Torque Low Rpm
high precise small size 16mm brush high torque 12v 24v planetary geared motor
Product Datasheet
Product Show

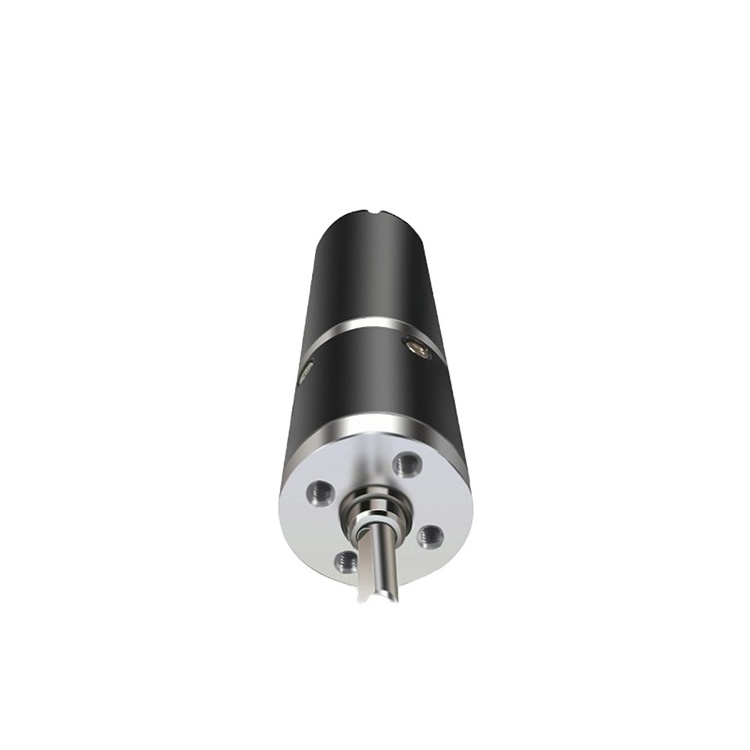

XBD-1640 Coreless Planetary DC Motor
|
|
Features and Application
Our XBD-1640 model is small, light weight, precision, reliable control and delicately operate. Reliable and stable with long life time.
This 1640 coreless gear motor is not only used for electronic lock, but also can be used for electric power tools, industrial equipment, household appliances, smart household robots, micro pump and medical equipment etc.
Packaging & Shipping
Our Services
We are specializing in DC Coreless Motor.Our products are exported to the world!
Provide high quality, Bring honorable value. 98% of clients come back to us for repeat orders.
1.Sample Available
2.Alibaba Trade Assurance
3.OEM & ODM Available
4.Small MOQ
