Quick Details
-
Flow meter:
-
Piston type
-
Pump:
-
vane pump/ gear pump
-
Flow rate:
-
5~50 L/Min and 8~80L/min
-
Accuracy:
-
±0.25%
-
Certificates:
-
OIML & ISO9001
-
Suction head:
-
4m underground
-
Voltage:
-
220V/380V
-
Nozzle:
-
1/2/4/6/8 nozzles
-
Brand office:
-
Nigeria,Tanzania,Ghana,Myanmar etc.
-
Oil product nos:
-
1/2/3/4
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Eaglestar
-
Model Number:
-
EG1/EG3/EG5/EG6/EG7/EG7 plus
-
Flow meter:
-
Piston type
-
Pump:
-
vane pump/ gear pump
-
Flow rate:
-
5~50 L/Min and 8~80L/min
-
Accuracy:
-
±0.25%
-
Certificates:
-
OIML & ISO9001
-
Suction head:
-
4m underground
-
Voltage:
-
220V/380V
-
Nozzle:
-
1/2/4/6/8 nozzles
-
Brand office:
-
Nigeria,Tanzania,Ghana,Myanmar etc.
-
Oil product nos:
-
1/2/3/4

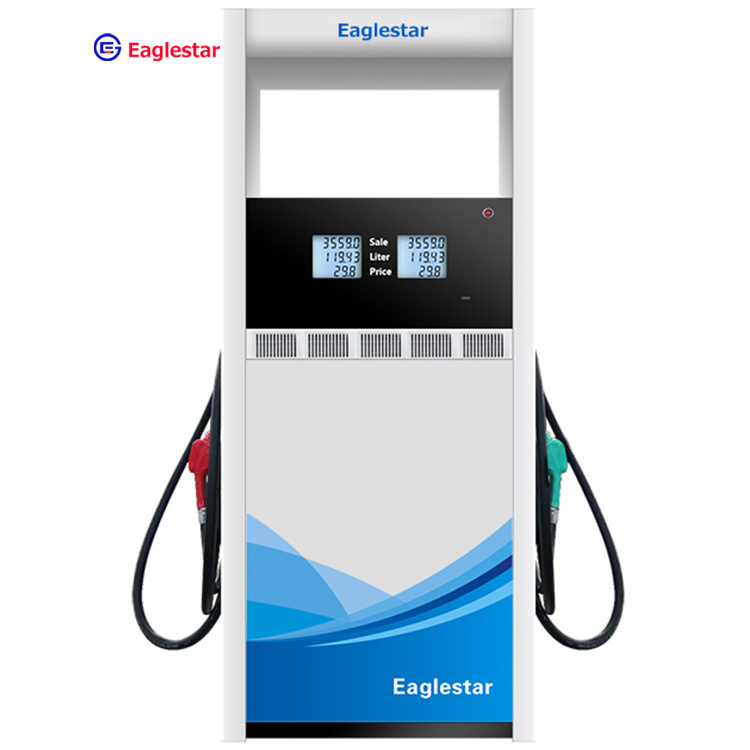

EG3 Introduction
Multi payment functions are available on EG5 fuel dispensers models. Bank POS, Priority member card, oil company petrol card, RFID system , through all these different payment ways, the stations can attract more customers for fuel and non fuel goods sales.
| Model | Pump type | Nozzle | Product | Meter | Displays (both sides) |
| EG5-424(G) or (S) |
G or gear pump
S for Submersible type |
4 | 2 | 4 | 4 |
| EG5-422(G) or (S) | 4 | 2 | 4 | 2 | |
| EG5-636(G) or (S) | 6 | 3 | 6 | 6 | |
| EG5-634(G) or (S) | 6 | 3 | 6 | 4 | |
| EG5-632(G) or (S) | 6 | 3 | 6 | 2 | |
| EG5-844(G) or (S) | 8 | 4 | 8 | 4 | |
| EG5-842(G) or (S) | 8 | 4 | 8 | 2 |
|
|
Flow MeterFlow meter is paramount on fuel dispenser unit. Eaglestar flow meter is engineered to retain its precision over complete lifetime. The unique internal structure and high quality components keep very less drift in the lifetime of the meter. |
Gear pump There are two types of pumping unit, vane and gear, which can be chosen on EG3 series. Comparison with vane pump, Gear type pumping unit has more virtual features. Strong suction power, high flow duty 50/90 liter per minute, two filters, all these can bring it a better performance in the harshest conditions with a variety of fuel types. |
Latest ARM MainboardEaglestar's new generation STAR main board uses the latest ARM CPU processor to achieve more command feature, Easy configuration and high safety control. More functions can be expanded on STAR main board such as printing, POS, Smart Card, Priority Card etc. The high quality industrial electronic components ensure the excellent performance on power surge, electrostatic shock And electromagnetic interference |
LED DisplayThe high quality LED display brings very bright light for night fueling.The low electrical power consumption makes the units cost effective. |
Anti Power FluctuationUL listed motor offer the best performance. Overload protection is robust in various conditions. High quality capacitors allow the motor to start in lower voltage power supply. The stations have less maintenance for the motor. Power board cope with wide range power fluctuation. The enhanced electrical system protect the PCB boards from lighting. |
Petro card solutionPetrol card solution offer customers one flexible payment method.Through card,fueling station can get prepayment and make more promotions to attract more customers. |
