The open designed stainless steel rear rack gives an ideal storage solution for large and heavy loads.
Explore More Products
- Product Details
- {{item.text}}
Quick Details
-
Voltage:
-
48V
-
Power Supply:
-
Lithium Battery
-
Braking System:
-
Disc Brake
-
Battery Capacity:
-
13.4 Ah
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
TrikExplor
-
Model Number:
-
424E
-
Motor:
-
48v 500w mid drive motor
-
Battery:
-
48v 14.5Ah lithium battery
-
Max speed:
-
45 km/h
-
Drive:
-
Four wheel drive
-
Suspension:
-
DNM AOY-36RC air shock
-
Overall dimension:
-
180-200cm (L)*105 cm(W)*90 cm (H)
Quick Details
-
Gears:
-
6 Speed
-
Frame Material:
-
Aluminum Alloy
-
Wheel Size:
-
24"
-
Voltage:
-
48V
-
Power Supply:
-
Lithium Battery
-
Braking System:
-
Disc Brake
-
Battery Capacity:
-
13.4 Ah
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
TrikExplor
-
Model Number:
-
424E
-
Motor:
-
48v 500w mid drive motor
-
Battery:
-
48v 14.5Ah lithium battery
-
Max speed:
-
45 km/h
-
Drive:
-
Four wheel drive
-
Suspension:
-
DNM AOY-36RC air shock
-
Overall dimension:
-
180-200cm (L)*105 cm(W)*90 cm (H)
Why model 424E

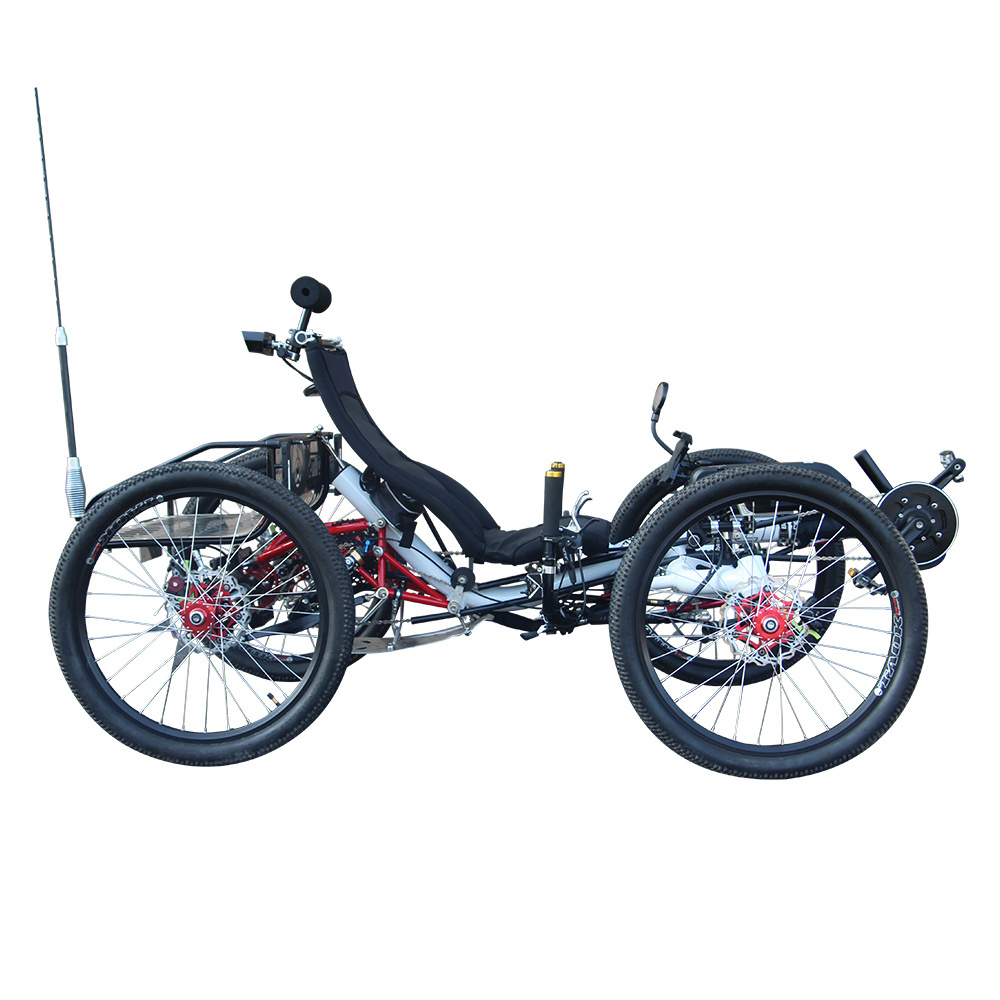

TrikExplor 4WD Sport Utility Quad-424E
If you are a bike traveller, 424E model might be the best touring quad you ever do. It plays a good role in extending your riding distance, ease and comfort.
With incorporate features of touring quad and off-road quad
, 4WD Sport Utility Quad is designed primarily for cross country cycling, placing emphasis on speed and endurance. It is suitable for riding on flat surfaces, dirty roads and natural off-road trails.
Superior transmission system
The two stage transmission system minimizes the component size and provides efficient working. Meanwhile, it reduce the tension to maximize chain life.
Complete lighting system
We offer a complete lighting system, including headlight, rear light with brake light, turn indicator with clicking sound
. You can easily set their marks in the traffic. It makes you ride more safe.
Super large rear rack
|
Frame
|
Aluminum alloy 6061 T6 main frame + steel rear fork
|
|
Seat
|
TrikExplor Ergo-mesh seat
|
|
Tires
|
Kenda
24x1.95"
|
|
Hub
|
Front Quanta drum shaft hub, Customs hub
|
|
Brakes system
|
Front
: Shimano XT BL-M8000 hydraulic disc brake
Rear
: Avid BB7 mountain mechanical disc brake
|
|
Brake levers
|
Shimano XT BL-M8000 front / Avid FR-5 rear
|
|
Chain
|
Miche 11-speed
|
|
Shifter
|
SRAM NX 11-speed
|
|
Crankset
|
38T with torque sensor pedal assist
|
|
Cassette
|
SRAM NX PG-1130 11-speed 11-42T
|
|
Turning circle
|
4.6 m
|
|
Net weight
|
44 kgs
|
|
Max. load
|
MAX 150kgs
|
|
Rider height
|
165-200 cm
|
|
Electrical Feature
|
|
|
|
Motor
|
48v 500w mid drive motor
|
|
|
Battery
|
48v 14.5Ah lithium battery with Panasonic cells
|
|
|
Display
|
LCD
|
|
|
Pedal Assist
|
6 leves
|
|
|
Max Speed
|
25km/h
|
|
|
Estimated Driving Distance
|
50km with pedal assist; 30km with full throttle.
Our electric trike comes with pedal assist (pedelec) mode. The throttle moel is optional as per your need.
|
|
|
Charging time
|
4-6 hours
|
|
Customer Reviews
Packing & Delivery
In accordance with our years of experience shipping to over 50 countries, we utilize various shipping methods. And for all shipping methods, we pack our quads in individual wood boxes.
|
Quantity
|
Package
|
Shipping way
|
Est. lead time
|
|
1
|
wooden box
|
by express or sea
|
20 days
|
|
2-10
|
wooden box
|
by sea
|
30 days
|
|
11-20
|
wooden box
|
by sea, 20ft container
|
35 days
|
FAQ
Q: What's the difference between 424E and
F426E
?
A:
F426E is specially designed for off-road. It is mostly used by professional riders to challenge. In order to get a large torque for climbing steep hills, it is mounted a small 18T crankset, so the speed is not able to be fast.
424E is equipped with 500w mid drive motor, torque sensor pedal assist, 38T crankset and 24x1.95" mountain tire. It is suitable for riding on flat surfaces, dirty roads and natural off-road trails.
Although the quad can be used for off-road, it is not suitable for steep or particularly rough terrain.
Q: What accessories do you supply?
A: We supply charger, head lights, tail light, head rest, rear rack and flag. They are free accessories.
Q: What colors are available?
A: Our available colors are blue, red, green, white and black.
Q: I am 190 cm tall and weight 120 kg. Is the trike suitable for me?
A: Yes. Our trike is suitable for 165 to 200 cm height and the max. load is 150 kg.
Q: How is the quad shipped?
A: Usually the quad is shipped by sea. It comes 90% assembled. You only need to mount the seat and two rear wheels.
Various of Quads
We presently display nearly
ten different models
of recumbent trikes and quads.
Each has its own purpose, such as riding off road or on paved trails. We have a number of excellent trikes and quads. You are sure to find one that suits you at
Trikexplor.
More recumbent bikes, trikes and quads, please click here .
Company & Service
TrikExplor
has been producing recumbent cycles in China since 2003, creating a respectable Chinese recumbent brand.
We are deeply committed to manufacturing superior quality recumbent cycles in a constant bid to offer the ultimate recumbent experience.
We are cyclists ourselves.
We have logged tens of thousands of miles racing, touring, trail riding, commuting, and day tripping on our trikes and quads.
Every year we attend the bike shows in Europe and USA and publish videos, photos and other information on Youtube, forum and other social media.
You can see more info and reviews on these websites and test our bikes at shows.
