Quick Details
-
Model type:
-
DVB-T Modulator
-
Modulation Standard:
-
ETSI EN300 744
-
Bandwidth:
-
6/7/8 MHz
-
Constellation:
-
QPSK/16QAM/64QAM
-
Trans mode:
-
2K/4K/8K
-
Application:
-
Digital CATV headend
-
Channels:
-
8
-
FEC:
-
1/2, 2/3, 3/4, 5/6, 7/8
-
Warrantly:
-
one year
-
Certificate:
-
CE,CB,FCC
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
RUNZHOU
-
Model Number:
-
OPT 5508T
-
Model type:
-
DVB-T Modulator
-
Modulation Standard:
-
ETSI EN300 744
-
Bandwidth:
-
6/7/8 MHz
-
Constellation:
-
QPSK/16QAM/64QAM
-
Trans mode:
-
2K/4K/8K
-
Application:
-
Digital CATV headend
-
Channels:
-
8
-
FEC:
-
1/2, 2/3, 3/4, 5/6, 7/8
-
Warrantly:
-
one year
-
Certificate:
-
CE,CB,FCC
audio video rf modulator ip to dvb t 8channels for hotel iptv system

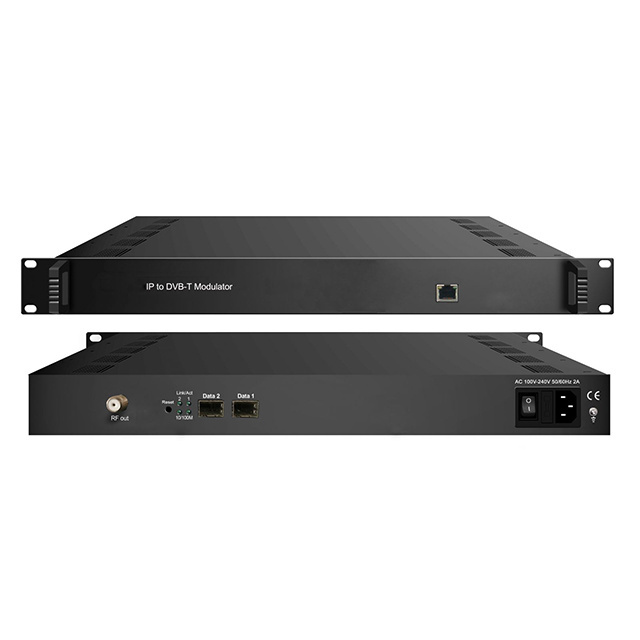

OPT 5508 IP to 8 DVB-T modulator is an all-in-one device.
It has 8 multiplexing channels and 8 DVB-T modulating channels, and supports maximum 1024 IP input through the GE port and 8 non-adjacent carriers (50MHz~960MHz) output through the RF output interface.
The device is also characterized with high integrated level, high performance and low cost.
This is very adaptable to newly generation DTV broadcasting system.
Features
-
2 GE input, SFP interface
Supports up to 1024 channels TS over UDP/RTP, unicast and multicast, IGMP v2v3
Max 840Mbps for each input
Supports accurate PCR adjusting
Supports PID remapping and PSI/SI editing
Supports up to 180 PIDs remapping per channel
Support 8 multiplexed TS over UDP/RTP/RTSP output
8 DVB-T non-adjacent carriers output, compliant to ETSI EN300 744 standard
Supports RS (204,188) encoding
Support Web-based Network management
Technical parameters:
|
Input |
Input |
512×2 IP input, 2 100/1000M Ethernet Port (SFP) |
|
Transport Protocol |
TS over UDP/RTP, unicast and multicast, IGMP V2/V3 |
|
|
Transmission Rate |
Max 840Mbps for each input channel |
|
|
Mux |
Input Channel |
1024 |
|
Output Channel |
8 | |
|
Max PIDs |
180 per channel |
|
|
Functions |
PID remapping(auto/manually optional) |
|
|
PCR accurate adjusting |
||
|
PSI/SI table automatically generating |
||
|
RF Output |
Interface |
F typed output port for 8 non-adjacent carriers |
|
RF Range |
50~960MHz, 1kHz stepping |
|
|
Output Level |
-20~+10dbm (for all carriers), 0.5db stepping |
|
|
MER |
≥ 40dB |
|
|
ACL |
-55 dBc |
|
|
TS output |
8 IP output over UDP/RTP/RTSP, unicast/multicast, 2 100/1000M Ethernet Ports |
|
|
System |
Web-based Network management |
|
