Quick Details
-
Brand Name:
-
Huayun
-
type:
-
spraying paint conveyor rollers
-
bearing:
-
6204 /6205/6305/6306/6307/6308
-
origin:
-
china conveyor roller manufacture
-
shaft:
-
45#steel (GB) equal to C45 (DIN)
-
feather:
-
surface electrostatic spraying roller
-
certification:
-
CE,ISO,BV,SGS,IKA,ETC
-
bearing brand:
-
C&U, HRB,SKF or as requirements
-
model number::
-
diameter from 50mm to 219mm
-
tube material::
-
carbon steel Q235 equal to S235JR
-
advantage:
-
factory conveyor roller direct
Quick Details
-
Warranty:
-
1 Year
-
Weight (KG):
-
1
-
Place of Origin:
-
China
-
Brand Name:
-
Huayun
-
type:
-
spraying paint conveyor rollers
-
bearing:
-
6204 /6205/6305/6306/6307/6308
-
origin:
-
china conveyor roller manufacture
-
shaft:
-
45#steel (GB) equal to C45 (DIN)
-
feather:
-
surface electrostatic spraying roller
-
certification:
-
CE,ISO,BV,SGS,IKA,ETC
-
bearing brand:
-
C&U, HRB,SKF or as requirements
-
model number::
-
diameter from 50mm to 219mm
-
tube material::
-
carbon steel Q235 equal to S235JR
-
advantage:
-
factory conveyor roller direct

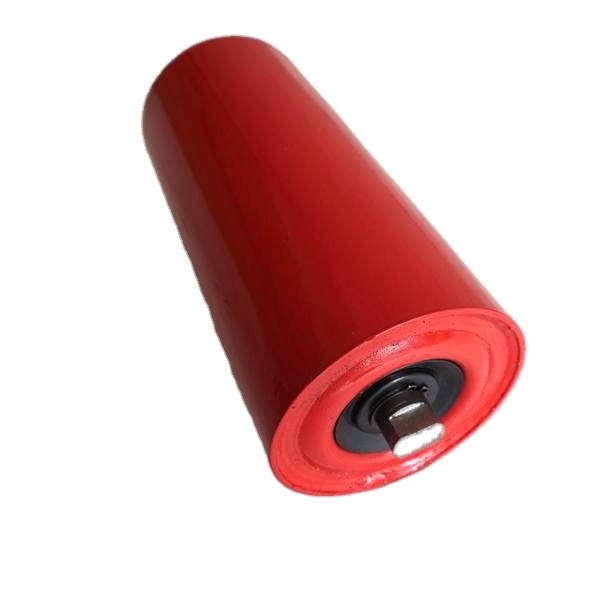

spraying paint conveyor roller assembly line with 6024 fag for conveyor machine
HuaYun brand
conveyor roller/idler
has been exported to more than 30 countries all over the world and particularly suitable for South America market. we have professional engineers and all of them have rich experience in this field, we can design the goods independently and make roller by your design
Friction idler/roller: it can effectively prevent the belt running deviation.
Side idler/roller: Good ability of correcting deviation.
Impact roller/idler: Reduce the belt being weared.
UHMWPE roller/idler : Good weather and aging resistance
Spiral idler/roller: clean and self-aligning roller.
Suspension idler/roller: used in the pit
Nylon roller/idler : Low noise
Different conveyo idler/roller milling:
The conveyor roller widely used in construction sites,mines,factories,warehouses, quarrie stations,harbours,coal,mining,harbor,power station,building materials,metallurgy
specification of HuaYun conveyor roller/idler
|
Roller Dia (mm) |
Length Scope(mm) |
Shaft Dia (mm) |
Bearings Type (Min-Max) |
Roller's Tube Thickness |
|
50 |
150-2500
|
20;25 |
204 |
3.2mm-4.0mm
|
|
63.5 |
20;25 |
204 |
||
|
76 |
20;25 |
204 205 |
||
|
89 |
20;25 |
204 205 |
3.2mm-6.0mm |
|
|
102 |
20;25;30 |
204 205 305 |
3.5mm-6.0mm
|
|
|
108 |
20;25;30 |
204 205 305 306 |
||
|
114 |
20;25;30 |
205 206 305 306 |
||
|
127 |
20;25;30 |
204 205 305 306 |
||
|
133 |
20;25;30 |
205 206 207 305 306 |
||
|
140 |
20;25;30 |
205 206 207 305 306 |
||
|
152 |
20;25;30 |
205 206 207 305 306 307 308 |
4.0mm-6.0mm
|
|
|
159 |
20;25;30;40;45 |
205 206 207 305 306 307 308 |
||
|
165 |
20;25;30;40;45 |
207 305 306 307 308 |
4.5mm-6.0mm
|
|
|
177.8 |
20;25;30;40;45 |
207 306 307308 309 |
||
|
190.7 |
20;25;30;40;45 |
207 306 307308 309 |
||
|
194 |
20;25;30;40;45 |
207 307 308 309 310 |
||
|
219 |
20;25;30;40;45 |
308 309 310 |
Also,We can make the roller according to your drawing or as your requirement.
Prodcution process of conveyor roller:
Surface Treatment of conveyor roller: conveyor rollers
1) We can provide the following surface coating/treatment by outsourcing.
|
Surface Treatment |
Anodizing (max. available length of the aluminum profiles are 30m) |
|
Zinc plate/cold galvanize (Cr3+ RoHS free or Cr 6+) |
|
|
Rubber coating (NR, NBR and EPDM etc.) |
|
|
Aluminum spraying coating |
|
|
Zinc spraying coating |
|
|
Hot galvanize |
|
|
Chrome coating |
|
|
Teflon coating |
|
|
Powder coating |
|
|
Alodine coating |
|
|
Case hardening |
|
|
Brown finish |
|
|
Soft nitridizing |
|
|
Passivation |
|
|
Paint |
Test for conveyor steel roller/idler:
1.axial loading≥10kn
2.axial moving≤1.2mm
3.radial moving≤0.5mm
4.rotation resistance≤3.5n
the package of the conveyor roller:
About us:
Service ;
1. We can supply the professional installation technician and workers; we have more than 300 technician and workers ready to install the machines for you.
2. We can supply the professional training and even we can arrange workers to help you operate the vibrating feeder
.
Warranty:
1. We always offer our machine on the base of the result from our test basis, the feedback from our clients, and the research from our R&D, so we can guarantee the quality and function of our machine. We have more than 160 excellent and diligent workers and based on the advanced equipment so we can deliver the order on time and can meet the urgent requirements on terms
Welcome all companies to contact us for business
negotiation. It is our honour to serve you.
