Quick Details
-
Dimension(L*W*H):
-
3500x2300x1580
-
Power:
-
274kw
-
Engine Capacity:
-
9726
-
Product name:
-
concrete mixer truck drum
-
Color:
-
Customized
-
Loading capacity:
-
12 meters cubic
-
Driving type:
-
Left Hand Drive
-
Chassis Brand:
-
Foton.Sino..IVECO.Shacman,JAC
-
Mixer Body Volume:
-
12cbm 12 Wheeler Cement Mixer Truck
-
Emission:
-
III
-
Filling medium:
-
Dry Powder
-
Tank material:
-
Carbon Steel Sino Bulk Cement Truck
-
After Warranty Service:
-
Video technical support
Quick Details
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
CLW
-
Weight:
-
3520 kg
-
Dimension(L*W*H):
-
3500x2300x1580
-
Power:
-
274kw
-
Engine Capacity:
-
9726
-
Product name:
-
concrete mixer truck drum
-
Color:
-
Customized
-
Loading capacity:
-
12 meters cubic
-
Driving type:
-
Left Hand Drive
-
Chassis Brand:
-
Foton.Sino..IVECO.Shacman,JAC
-
Mixer Body Volume:
-
12cbm 12 Wheeler Cement Mixer Truck
-
Emission:
-
III
-
Filling medium:
-
Dry Powder
-
Tank material:
-
Carbon Steel Sino Bulk Cement Truck
-
After Warranty Service:
-
Video technical support
CLW 2m3 3m3 4m3 5m3 6m3 7m3 8m3 9m3 10m3 12 M3 Concrete TRANSIT MIXER DRUM HOIST
Capacity:10m3 to 12m3
Specialization: As per your requirement accurately!
Ms xi chen email: chinatrucks @ foxmail.com whatsapp/Wechat/Mobile:0086-18727992788
Concrete Transit Mixer Without Truck chassis is an important vehicle to transport concrete of ready mixed from concrete batching plant to the work sites. A drum is installed on a chassis of a cement transport truck . The mixer drum is either driven by the truck engine or by a separate power take off device. There are many spiral blades inside the drum. When in the process of mixing and transporting the drum of concrete trucks rotate in one direction, generally rotate as a direction of clockwise (may vary with the manufacturer). The concrete in the drum is pushed towards the bottom of the drum so as to to get uniformity of concrete. While transporting the concrete to the construction site, it is rotating clockwise and keeping the concrete inside constantly stirring. Once concrete mixing transport trucks arrive at the work site to pour the concrete, the drum rotation is reversed to anti-clockwise. Now the blade in the drum pushes the concrete towards the drum outlet, then concrete through the discharging chute flow to the construction site ( The discharging chute could be turned for 180 degree ). Mixing system of transit concrete mixers. Feeding tube, batching plant body, spiral blades and center shaft make up the whole mixing system. The mixer tank is placed on the frame at an angle, one end is supported by bearing pedestal of center shaft, and the other end is supported by two rollers, the outside surface of cylinder is equipped with wave channel.
The body Structure:
| Material of Tank | The tank is made of alloy-steel and carbon steel Q345, the tank body is six mm thick and the head is eight mm thick. | ||
| Hydraulic System | REXROTH | Reduction drive | PMP(Italian Brand)/ ZF(German brand) |
| Radiator | KaiTong | Water System | 500L water pot, Air pressure water supply |
| Feeding speed | M3/min≥ 3 |
Unloading speed |
M3/min≥ 2 |
|
Discharge reside rate |
%< 0.5 | Operation method | Left and right sides and cab three-way operation |
| Unloading range | 180° up and down height adjustment | Safety equipment | Adding a leak receiving device |
| Delivery time | 30 days after receiving the payment | ||
| Warranty | 12 months, from the date of supply. | ||
Ms xi chen email: chinatrucks @ foxmail.com whatsapp:0086-18727992788

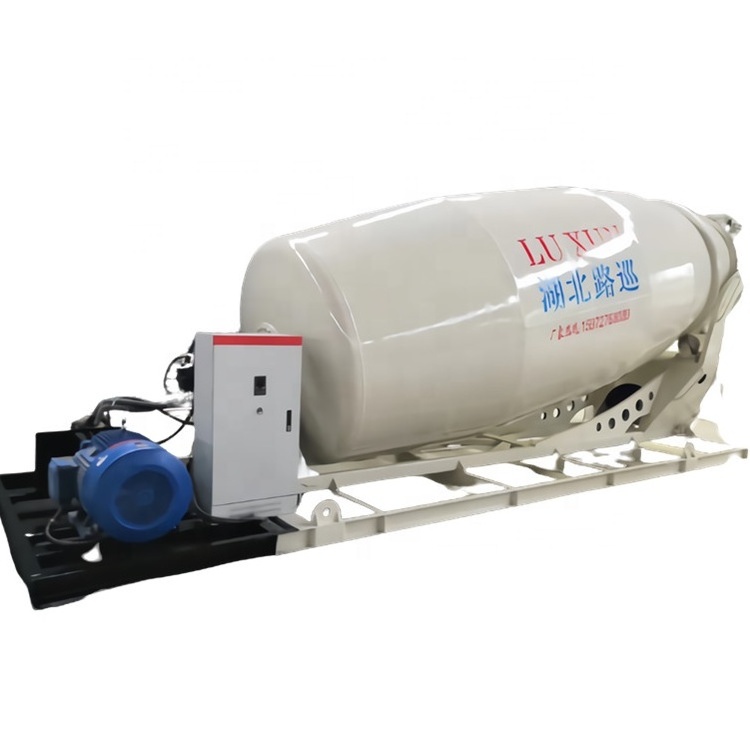

Product Photo:
m
ixer drum
The rear side of JAC 8x4 12m3 concrete mixer truck.
The capacity of FOTON 6X4 concrete mixer truck is around 8m3~14m3.
Ms xi chen email: chinatrucks @ foxmail.com whatsapp/Wechat/Mobile:0086-18727992788
We're the biggest concrete mixer truck manufacturer in China.
