Quick Details
-
Controller Type:
-
MPPT, PWM
-
Mounting Type:
-
Ground Mounting
-
Certificate:
-
CE RoHS
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Xindun
-
Model Number:
-
ESS SOLAR SYSTEM
-
Load Power (W):
-
300w~7000w
-
Output Voltage (V):
-
220V
-
Output Frequency:
-
50Hz/60Hz
-
Work Time (h):
-
8-24 HOURS
-
Product name:
-
1kw 3kw 5kw off grid solar system
-
Solar panel:
-
Monocrystalline or poly
-
Type:
-
Off-grid System
-
Battery:
-
Lead Acid Battery or gel battery
-
Controller:
-
Intelligent Controller
-
Load:
-
Household Appliances
-
Keyword:
-
5kw off grid solar system
-
Protection:
-
Short Circuit Protection
-
Usage:
-
home and industry
-
Inverter:
-
pure sine wave off grid
Quick Details
-
Application:
-
Home
-
Solar Panel Type:
-
Monocrystalline Silicon, Polycrystalline Silicon
-
Battery Type:
-
Lead-Acid, Lithium Ion
-
Controller Type:
-
MPPT, PWM
-
Mounting Type:
-
Ground Mounting
-
Certificate:
-
CE RoHS
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Xindun
-
Model Number:
-
ESS SOLAR SYSTEM
-
Load Power (W):
-
300w~7000w
-
Output Voltage (V):
-
220V
-
Output Frequency:
-
50Hz/60Hz
-
Work Time (h):
-
8-24 HOURS
-
Product name:
-
1kw 3kw 5kw off grid solar system
-
Solar panel:
-
Monocrystalline or poly
-
Type:
-
Off-grid System
-
Battery:
-
Lead Acid Battery or gel battery
-
Controller:
-
Intelligent Controller
-
Load:
-
Household Appliances
-
Keyword:
-
5kw off grid solar system
-
Protection:
-
Short Circuit Protection
-
Usage:
-
home and industry
-
Inverter:
-
pure sine wave off grid
1. 3 times peak power, excellent loading capability.
2. Combine inverter/solar controller/battery all in one.
3. Multiple output: 2*AC output socket, 4*DC 12V, 2*USB.
4. Working mode AC prior/ECO mode/Solar prior selectable.
5. AC charging current 0-10A selectable.
6. LVD/HVD/Charging voltage adjutable, suitable for kinds of battery
7. Adding fault code to monitor real-time work situations.
8. Continuous stable pure sine wave output with inbuilt AVR stabilizer.
9. Digital LCD and LED for visualization of operation status of the equipment.
10. Inbuilt automatic AC charger and AC mains switcher, stwitch time ≤ 4ms.

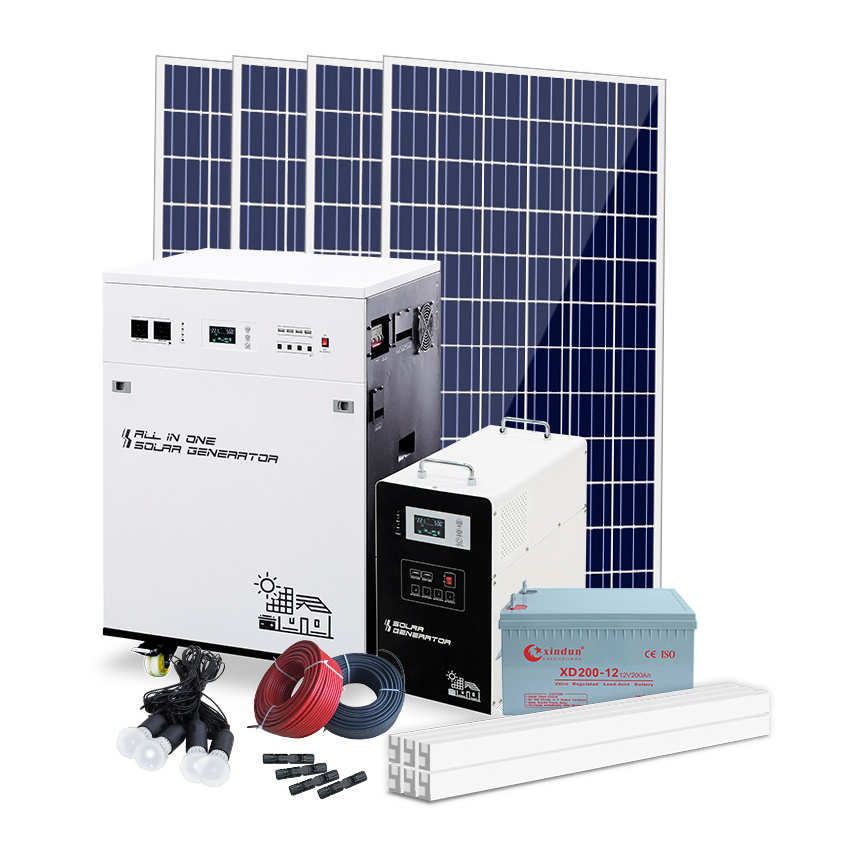

1kw solar generator system
| System | Model | Description | QTY | ||||
| PCS | |||||||
| 1000W Solar System | XD1000W | Components | Solar panel |
2pcs Mono solar panel 160W , Application area :Class A
Connection way : 2 pcs in parallel |
2 | ||
| All-in one solar generator |
built-in 1pcs 1000W/12V pure sine wave inverter
Low frequency output ,Transfer time :<4ms Multiple output: 2*AC output socket, 4*DC 12V, 2*USB. |
1 | |||||
|
built-in 1pcs 12V/40A PWM solar controller
Max PV input voltage :50V PV Array Max Power :560W |
|||||||
|
built-in 1pcs 12V 100AH GEL battery
Each size :407*172*208mm,29KG |
|||||||
| Solar bracket | 1 set of aluminum bracket for ground/pitched roof | 1 | |||||
| Solar cable | 60M PV cable 4mm2 | 1 | |||||
| MC4 Connector |
1 set of MC4 Connector :
1 set of MC4 branch connector (2input 1output) 1 set of MC4 branch connector ( 1 input 1 output ) |
1 | |||||
| System output | 3120WH =1920WH(PV electricity) + 1200WH(Battery backup electricity) | ||||||
| 110V/120V/220V/230V/240Vac can be customized before delivery | |||||||
| Recommended loads | 1pcs TV, 1pcs fan, 4pcs lights | ||||||
| Others | System will use solar prior, battery second, and then utility | ||||||
| System support utility or diesel/gasoline generator(>3000W) input | |||||||
| estimated 0.8CBM & 130KG per set | |||||||
| System | Model | Description | QTY | ||||
| PCS | |||||||
| 3000W Solar System | XD3000W | Components | Solar panel |
4pcs poly solar panel 330W ,Application area :Class A
Connection way : 4 pcs in parallel |
4 | ||
| All-in one solar generator |
built-in 1pcs 3000W/24V pure sine wave inverter
Low frequency output ,Transfer time :<4ms Multiple output: 2*AC output socket, 4*DC 12V, 4*USB. |
1 | |||||
|
built-in 1pcs 24V/60A MPPT solar controller
Max PV input voltage :150V , PV Array Max Power :1680W |
|||||||
|
built-in 2pcs 12V 200AH GEL battery
Each Size :522*240*220mm,55KG |
|||||||
| Solar bracket | 1 set of aluminum bracket for ground/pitched roof | 1 | |||||
| Solar cable | 60M PV cable 4mm2 | 1 | |||||
| MC4 Connector |
1 set of MC4 Connector :
3 sets of MC4 branch connector (2input 1output) 1 set of MC4 branch connector ( 1 input 1 output ) |
1 | |||||
| System output | 11400WH =6600WH(PV electricity) + 4800WH(Battery backup electricity) | ||||||
| 110V/120V/220V/230V/240Vac can be customized before delivery | |||||||
| Recommended loads | 1pcs AC(2P), 1pcs fridge, 1pcs cooker, 1pcs TV, 2pcs fan, 4pcs lights | ||||||
| Others | System will use solar prior, battery second, and then utility | ||||||
| System support utility or diesel/gasoline generator(>9KW) input | |||||||
| estimated 1.1CBM & 320KG per set | |||||||
| System | Model | Description | QTY | ||||
| PCS | |||||||
| 5000W Solar System | XD5000W | Components | Solar panel |
8pcs poly solar panel 330W ,Application area :Class A
Connection way : 2pcs in series ,4 groups in parallel |
8 | ||
| All-in one solar generator |
built-in 1pcs 5000W/48V pure sine wave inverter
Low frequency output ,Transfer time :<4ms Multiple output: 2*AC output socket, 4*DC 12V, 4*USB. |
1 | |||||
|
built-in 1pcs 48V/60A MPPT solar controller
Max PV input voltage :150V ,PV Array Max Power :3360W |
|||||||
|
built-in 4*12V 200AH GEL battery
Each Size :522*240*220mm,55KG |
|||||||
| Solar bracket | 1 set of aluminum bracket for ground/pitched roof | 1 | |||||
| Solar cable | 100M PV cable 4mm2 | 1 | |||||
| MC4 Connector |
1 set of MC4 Connector :
3 sets of MC4 branch connector (2input 1output) 5 sets of MC4 connector(1input 1output) |
1 | |||||
| System output | 25440WH =15840WH(PV electricity) + 9600WH(Battery backup electricity) | ||||||
| 110V/120V/220V/230V/240Vac can be customized before delivery | |||||||
| Recommended loads | 1pcs AC(2P), 1pcs fridge, 1pcs cooker, 1pcs TV, 2pcs fan, 4pcs lights | ||||||
| Others | System will use solar prior, battery second, and then utility | ||||||
| System support utility or diesel/gasoline generator(>15KW) input | |||||||
| estimated 1.9 CBM & 540KG per set | |||||||
|
Solar generator:
1. Combine inverter/solar controller/battery all in one cabinet. 2. Built-in PWM/Mppt solar controller. 3. Built-in solar inverter. 4. Built-in battery. 5. Low frequency pure sine wave output .6. Multiple output: 1*AC output socket, 4*DC 12V, 2*USB.
7. With bulbs, wires with switch.
9. Automatic AC charger and AC mains switcher, switch time ≤ 4ms. 0. AC charging current 0-30A selectable. |
|
Solar panel:
1. Front Glass: 3.2mm, Anti Reflection Coaring, High Transmission, Low Iron, Tempered Glass. 2. Frame: Anodized Aluminium Alloy. 3. Warranty: 25-years performance warranty. 12-years warranty on materials and workmanship. |
|
|
Gel battery (Built-in solar generator):
1. GEL series battery is manufactured with special separators and silica gel immobilizing the electrolyte inside the battery. 2. The proven silica gel technology can improve battery cycle life and performance at wider temperature range. |
|
|
Solar bracket:
Description of Mounting 1. Aluminum Alloy 6005-T5. 2. Fasteners Material SUS304. 3. Easy Installation. 4. Can Be used in different forms,Tin Roofs,Flat Roofs. 5. The installation angle can be adjusted according to the demand. 6. 10 Years Warranty, Over 25 Years Service Life. |
|
|
Cables and parts:
1.PV cable is a special type of cable used in solar generator system. It has the characteristics of high temperature resistance and friction resistance, and has a long service life. 2. Battery cable (connection between batteries) .3. Battery cable (connection between batteries and solar hybrid inverter) . 4. Terminals and MC4 plug. |
300w~1kw soalr system case:
2kw~7kw solar system case:
Package
Carton Box for packaging, or Wooden Box advised for Samples to protect in transportations.
Shipping
1. Fedex/ DHL/ TNT/ UPS for samples, door-to-door.
2. By air or by sea for batch goods, for CFL, Air port/ Port receiving.
3. Customers specifying freight forwarders or negotiable shipping methords.
4. Delivery time: 7 days for samples; 10 to 25 days for batch goods.
| Payment | ||
| T/T | EXW | 30% T/T in advance, balance paid before dispatch |
| FOB | ||
| CNF(CFR) | 30% T/T in advance, balance paid against copy of B/L | |
| CIF | ||
| L/C, D/A, D/P, Money Gram, Western Union, Paypal (Optional) | ||
