110v 100w 200w 250w 300w Best Selling Resistance tube Rod heater Cartridge Heating Element For Packing Machinery

110v 100w 200w 250w 300w Best Selling Resistance tube Rod heater Cartridge Heating Element For Packing Machinery

FOB Reference Price: Get Latest Price

≥1 Pieces

US $8.6

≥100 Pieces

US $5.4

≥10000 Pieces

US $1

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Jiangsu, China

Brand Name:: Hongtai

Dimension(L*W*H):: customized

Weight:: 1 KG

heater:: Cartridge Heating Element

Sheath material:: SUS304 for Cartridge Heating Element

Wattage Tolerance:: +5%, -10%

Resistance tolerance:: +10%, -5%

Voltages available:: 12V/110v/220v

Max operating temp:: 650

Length tolerance:: ±1 mm

Diameter tolerance:: -0.02mm

Standard Cold Zone:: 5-10mm

Insulation resistance (cold):: ≥ 500 MΩ

Quick Details

Type:: Cartridge Heater

Power Source:: Electric

Voltage:: 12v/110v/220v

Place of Origin:: Jiangsu, China

Brand Name:: Hongtai

Dimension(L*W*H):: customized

Weight:: 1 KG

heater:: Cartridge Heating Element

Sheath material:: SUS304 for Cartridge Heating Element

Wattage Tolerance:: +5%, -10%

Resistance tolerance:: +10%, -5%

Voltages available:: 12V/110v/220v

Max operating temp:: 650

Length tolerance:: ±1 mm

Diameter tolerance:: -0.02mm

Standard Cold Zone:: 5-10mm

Insulation resistance (cold):: ≥ 500 MΩ

Product Description

cartridge heater is a piece of equipment, made of MgO powder or MgO tube, ceramic cap, resistance wire(NiCr2080), High temperature leads, seamless stainless steel sheath(304,321,316,800,840). usually in tube form, that is used in heating applications by way of insertion into metal blocks via a series of drilled holes. Cartridge heaters are manufactured in two basic forms - high density and low density.

High density cartridge heaters are used to heat plastic injection moulds, dies, platens and so forth, whereas low density cartridge heaters are more suitable for packing machinery, heat sealing, labelling machines and hot stamping applications.

Name	Electric 100w 110v 230v 300w cartridge heater for salt spray chamber
Wattage Tolerance	+5%, -10%
Resistance tolerance	+10%, -5%
Voltages available	380V,240V, 220V,110V,36V,24V or 12V
Max operating temp	870ºC(1600F)
Length tolerance	± 2% or 3.2mm (1/8”), whichever is greater.
Camber tolerance	1.7mm per meter (0.020” per foot).
Diameter tolerance	Diameter at each end may vary +0.05mm -0.1mm (+.002" -.004")
Standard Unheated Area	5-10mm;
Internal thermocouple	type J or K;
Thermocouple Location	Disc End, Sheath, Center of Heater;
Insulation resistance (cold)	≥ 500 MΩ;
Maximum leakage current (cold)	≤ 0.5 mA;
Diameter	from 3.0mm to 30mm;

Product Details

Good material selection,
SUS304/SUS310/Incoloy 800/Inconel 601

Solid stainless steel laser welding, neat weld

Clear print on heater surface

Solid material, longer life, long time use is not easy to deformation

Good sealing on the end of tube

High density, compact structure,Each product is tested six times

Support customization

For the heater ,any length of power and voltage thread specifications can be customized

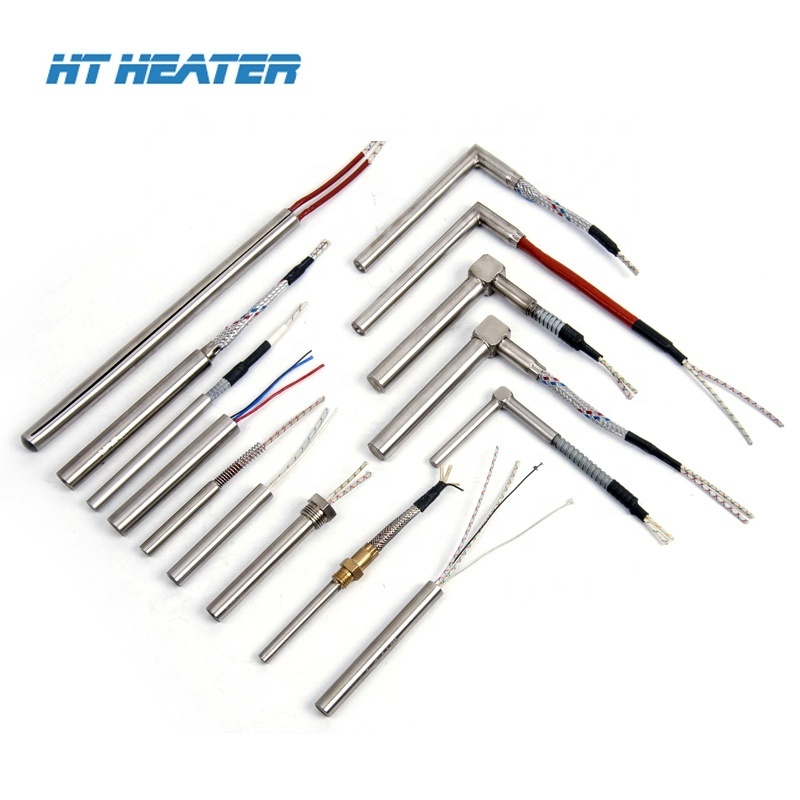

Different Type of Cartridge heaters

We can make many type cartidge heater. High density type ,low watt type, right angle type, Please check the following

Review

Application

* Injection moulding-Internal heating of nozzies
* Hot runner systems-Heating of manifolds
* Packaging industry-Heating of cutting bars
* Packaging industry-Heating of hot stamps
* Laboratories-Heating of analytical equipment
* Medical:Dialysis,sterilization,Blood Analyzer,Nebulizer,Blood/Fluid Warmer,Temperature Therapy
* Telecommunications:Deicing,Enclosure Heater
* Transportation:Oil/Block Heater,Aiecraft Coffee Pot Heaters,
* Food Service:Steamers,Dish Washers,
* Industrial:Packaging Equipment,Hole Punches,Hot Stamp.
