Quick Details
-
Brand Name:
-
SIGO
-
Model Number:
-
SG-ST870
-
Product name:
-
SG-ST870 multi-functional book binding machine
-
Binding Material:
-
Plastic comb & Double wire
-
Max.Punching Capacity:
-
25 Sheets
-
Max.Binding:
-
500 Sheets (4.8-51mm Comb ring)/120 Sheets (4.8-14.3mm double wire)
-
Binding Size:
-
A4/Letter
-
Hole Distance:
-
14.3mm(Comb)/8.47mm(Wire 3:1)
-
Hole Quantity:
-
21 (Comb)/34 (Wire 3:1)
-
Moable Pins:
-
No
-
Depth Margin:
-
2.5/4.5/6.5mm
-
Hole Spec:
-
3*8mm(Comb)/4*4mm(Wire 3:1)
Quick Details
-
Type:
-
Comb Binding Machine
-
Power:
-
Manual
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
SIGO
-
Model Number:
-
SG-ST870
-
Product name:
-
SG-ST870 multi-functional book binding machine
-
Binding Material:
-
Plastic comb & Double wire
-
Max.Punching Capacity:
-
25 Sheets
-
Max.Binding:
-
500 Sheets (4.8-51mm Comb ring)/120 Sheets (4.8-14.3mm double wire)
-
Binding Size:
-
A4/Letter
-
Hole Distance:
-
14.3mm(Comb)/8.47mm(Wire 3:1)
-
Hole Quantity:
-
21 (Comb)/34 (Wire 3:1)
-
Moable Pins:
-
No
-
Depth Margin:
-
2.5/4.5/6.5mm
-
Hole Spec:
-
3*8mm(Comb)/4*4mm(Wire 3:1)

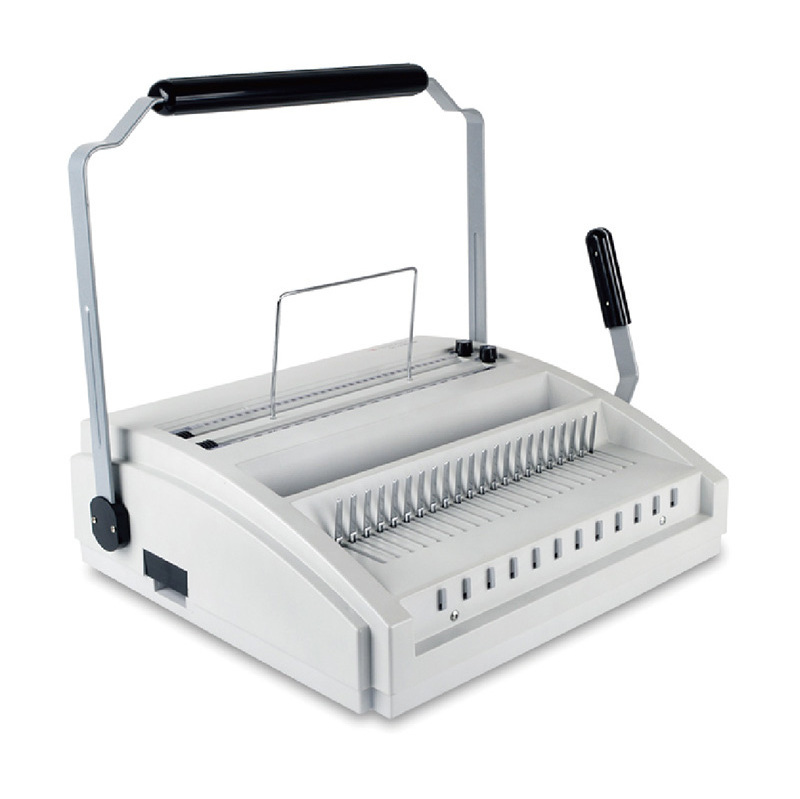

SG-ST870 multi-functional book binding machine
Product Details
Model:ST870
It is comb and wire 3:1,2-in-1 punching and binding machine
A4 Size base(300mm), it is made of ABS plastic cover, but inside is made of metal, very strong.
It is a machines which is vertical paper,very easy to operate, and because it is 2-in-1 machine, so it has smaller room to place.
The best choice of using in office and school.
Max.Punch:25 sheets 70g A4 paper
Max.Bind:450 sheets 70g paper(51mm comb ring)
120 sheets 70g paper(14.3mm wire 3:1 ring)
Hole quantity:21pcs(comb)/34pcs(wire3:1)
Hole size:3*8mm rectangle(comb)/5.5mm round hole(wire3:1)
Hole distance:14.3mm（comb）/8.47(wire3:1)
Paper margin:2.5/4.5/6.5mm
N.W.:14kgs(each machine with color box)
G.W.:30kgs(2pcs/carton)
|
Model
|
SG-ST870 (comb+wire 3:1)
|
SG-CW2918 (comb+wire 3:1)
|
SG-WW2919 (wire3:1+wire2:1)
|
SG-CW2917 (coil+wire3:1)
|
|
Binding Material
|
Plastic comb & Double wire
|
Plastic comb & Double wire
|
Double wire
|
Spiral coil & Double wire
|
|
Max punching
|
25 Sheets
|
20 Sheets
|
20 sheets
|
20 sheets
|
|
Max.Binding
|
500 Sheets (4.8-51mm Comb ring)
|
500 Sheets (4.8-51mm Comb ring)
|
120 Sheets (4.8-14.3mm double wire)
|
Arbitrary (coil)
|
|
|
120 Sheets (4.8-14.3mm double wire)
|
120 Sheets (4.8-14.3mm double wire)
|
320 Sheets (15.9-31.8mm double wire)
|
120 Sheets (4.8-14.3mm double wire)
|
|
Binding Size
|
A4/letter
|
A4/B5/Letter/A5/etc.
|
A4/B5/Letter/A5/etc.
|
A4/B5/Letter/A5/etc.
|
|
Hole Distance
|
14.3mm(Comb)/8.47mm(Wire 3:1)
|
14.3mm(Comb)/8.47mm(Wire 3:1)
|
8.47mm(Wire 3:1)/12.7mm(Wire 2:1)
|
6.35mm(Coil 4:1)/8.47mm(Wire 3:1)
|
|
Hole Quantity
|
21 (Comb)/34 (Wire 3:1)
|
21 (Comb)/34 (Wire 3:1)
|
34 (Wire 3:1)/23 (Wire 2:1)
|
46 (Coil 4:1)/34 (Wire 3:1)
|
|
Moable Pins
|
No
|
All Selectable Pins
|
All Selectable Pins
|
All Selectable Pins
|
|
Depth Margin
|
2.5/4.5/6.5mm
|
2.5/4.5/6.5mm
|
2.5/4.5/6.5mm
|
2.5/4.5/6.5mm
|
|
Hole Spec
|
4×4mm(Wire 3:1)/4×5.5mm(Wire 2:1)
|
Φ4mm(Coil)/4×4mm(Wire)
|
3*8mm(Comb)/Φ4mm(Coil 4:1)
|
Φ4mm(Coil)/4*4mm(Wire)
|
|
Punching Form
|
Manual
|
Manual
|
Manual
|
Manual
|
|
Product Size
|
420*420*170mm
|
450*410*135mm
|
450*410*135mm
|
450*410*135mm
|
|
Model
|
SG-CC2916
(comb+coil 4:1)
|
SG- CW2016
(comb+wire 3:1)
|
SG-WW2018
(wire3:1+wire2:1)
|
|
Binding Material
|
Plastic comb & Spiral coil
|
Plastic comb & Spiral coil
|
Double wire
|
|
Max punching
|
20 Sheets
|
20 Sheets
|
20 sheets
|
|
Max.Binding
|
500 Sheets (4.8-51mm Comb ring)
|
500 Sheets (4.8-51mm Comb ring)
|
120 Sheets (4.8-14.3mm double wire)
|
|
|
Arbitrary (coil)
|
120 Sheets (4.8-14.3mm double wire)
|
260 Sheets (15.9-25.4mm double wire)
|
|
Binding Size
|
A4,Letter, A5, etc.
|
F4/A4/B5/Letter/A5/etc.
|
F4/A4/B5/Letter/A5/etc.
|
|
Hole Distance
|
14.3mm(Comb)/8.47mm(Wire 3:1)
|
14.3mm(Comb)/8.47mm(Wire 3:1)
|
8.47mm(Wire 3:1)/12.7mm(Wire 2:1)
|
|
Hole Quantity
|
21 (Comb)/34 (Wire 3:1)
|
21 (Comb)/34 (Wire 3:1)
|
34 (Wire 3:1)/23 (Wire 2:1)
|
|
Moable Pins
|
No
|
All Selectable Pins
|
All Selectable Pins
|
|
Depth Margin
|
2.5/4.5/6.5mm
|
2.5/4.5/6.5mm
|
2.5/4.5/6.5mm
|
|
Hole Spec
|
4×4mm(Wire 3:1)/4×5.5mm(Wire 2:1)
|
Φ4mm(Coil)/4×4mm(Wire)
|
3*8mm(Comb)/Φ4mm(Coil 4:1)
|
|
Punching Form
|
Manual
|
Manual
|
Manual
|
|
Product Size
|
420*420*170mm
|
450*410*135mm
|
450*410*135mm
|
|
Model
|
SG-CW2019
(coil+wire3:1)
|
SG- ST2960
(comb+wire 3:1)
|
SG-TT2930
(wire3:1+wire2:1)
|
|
Binding Material
|
Spiral coil & Double wire
|
Plastic comb & Double wire
|
Double wire
|
|
Max punching
|
20 Sheets
|
25 Sheets
|
25 sheets
|
|
Max.Binding
|
Arbitrary (coil)
|
500 Sheets (4.8-51mm Comb ring)
|
120 Sheets (4.8-14.3mm double wire)
|
|
|
120 Sheets (4.8-14.3mm double wire)
|
120 Sheets (4.8-14.3mm double wire)
|
260 Sheets (15.9-25.4mm double wire)
|
|
Binding Size
|
F4/A4/B5/Letter/A5/etc.
|
F4/A4/B5/Letter/A5/etc.
|
F4/A4/B5/Letter/A5/etc.
|
|
Hole Distance
|
6.35mm(Coil 4:1)/8.47mm(Wire 3:1)
|
14.3mm(Comb)/8.47mm(Wire 3:1)
|
8.47mm(Wire 3:1)/12.7mm(Wire 2:1)
|
|
Hole Quantity
|
56 (Coil 4:1)/40 (Wire 3:1)
|
24 (Comb)/40 (Wire 3:1)
|
40 (Wire 3:1)/27 (Wire 2:1)
|
|
Moable Pins
|
All Selectable Pins
|
All Selectable Pins
|
All Selectable Pins
|
|
Depth Margin
|
2.5/4.5/6.5mm
|
2.5/4.5/6.5mm
|
2.5/4.5/6.5mm
|
|
Hole Spec
|
Φ4mm(Coil)/4*4mm(Wire)
|
3*8mm(Comb)/4*4mm(Wire 3:1)
|
4*4mm(Wire 3:1)/4*5.5mm(Wire 2:1)
|
|
Punching Form
|
Manual
|
Manual
|
Electric
|
|
Product Size
|
450*430*270mm
|
450*470*280mm
|
450*470*280mm
|
Detailed Images
Certifications
Our Service
1.One year warranty on whole machine/parts.
2.Professional service before and after sale.
3.Supply training video and user's manual in English.
4.Long-term support for the software and machine maintenance.
5.Free lifetime technology support on all orders.
Packing & Delivery
|
Packaging
|
|
|
|
Size
|
420 (L) * 420(W) * 170 (D)mm
|
|
|
Weight
|
18 KGS
|
|
|
Packaging Details
|
The normal package is non-fumigation casewooden box(Size: L*W*H).
