Quick Details
-
Application:
-
Industrial Profile
-
MOQ:
-
1pcs
-
Voltage:
-
380V 50 or 60 KHZ
-
Keyword:
-
15KW Heating machine
-
Logo:
-
Accept
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Weight (KG):
-
65
-
Product name:
-
Induction Heating machine
-
Application:
-
Industrial Profile
-
MOQ:
-
1pcs
-
Voltage:
-
380V 50 or 60 KHZ
-
Keyword:
-
15KW Heating machine
-
Logo:
-
Accept

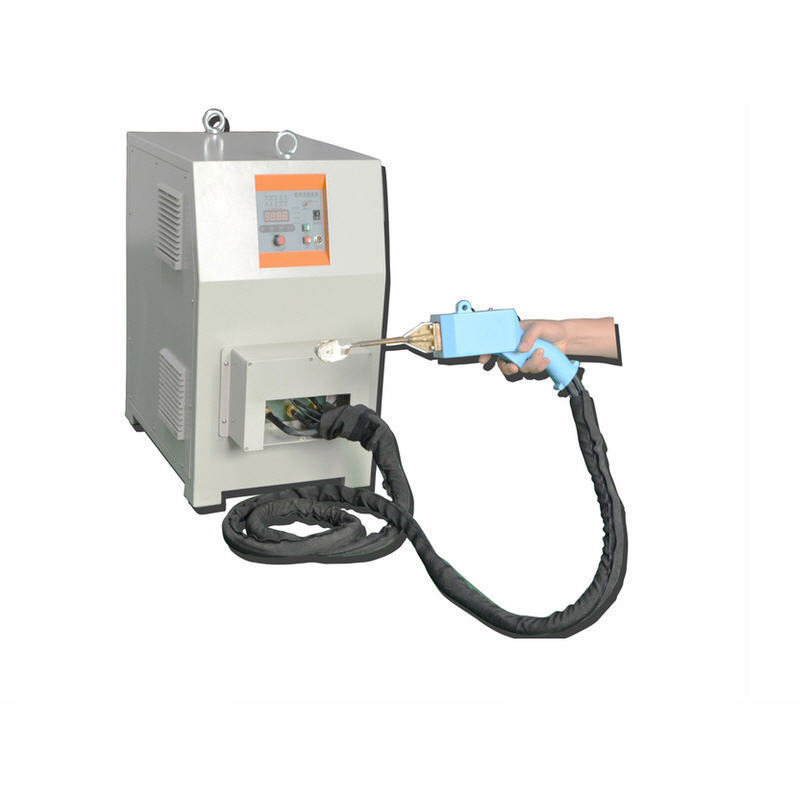

Remote Coil Induction Brazing Machine for Brazing Welding Copper, Brass Pipe Joint tube with Removing Coils
This machine is special for condition that work-piece difficultly moving and after heating need do other process. With this hand-held machine, can easily handle the induction coil to the work-piece. Widely used for transformer motor wire brazing, fridge and air condition tube head brazing, com-presser copper tube brazing, wire head brazing etc.
Mobile induction heaters are suitable for the heating of metal parts on site,
For example,
1)brazing of transformer copper bar connector
2)Brazing of copper tube in air conditioner application
3)mould heating
4)pre-weld heating and so on
D.
Welding of heating disc of electric hot-water kettle mainly refers to the braze welding of stainless steel flat base, aluminum sheet and tubular electric heating elements of various forms
Installing Desire:
1, power supply wire: 6mm2 soft copper; Ground wire 4mm2 soft copper;
2, cooling water desire: Clean and not easy to scale, Inlet water temperature 25-36degree';
3, cooling water systerm: Running water; Circulating water from a pump to a tank; Use an industry refrigerate machine.
Parameter of GY-20
| Model |
GLY-20
|
| Working voltage |
3 phase 380V, 50/60HZ
|
| Soft cable length |
0.5-10m
|
| Max input power |
20KW
|
| Oscillation frequency |
20-50KHZ
|
| Efficiency |
95%
|
| Duty cycle |
100%
|
| Chiller cooling power and capacity |
5.6KW, 9632Kcal/hr
|
| Machine weight |
40kg
|
| Machine dimension(L*W*H) |
600*260*500mm
|
| Heating head weight |
2.3kg
|
| Heating head diameter |
60mm
|
| Heating head length |
160mm
|
