Material:
photo paper, T-shirt transfer paper, stickers, glossy paper, transparent Films, paper cards, etc.
Field:
DTS integrates the functions of kiss cutting, die cutting and creasing. It is widely used for
proofing and small batch production of labels, tags, packaging boxes, processing of
advertising signs and paper art, etc.
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Befitter
-
Voltage:
-
220V
-
Dimension(L*W*H):
-
787*740*1320mm
-
Weight:
-
114 kg
-
Marketing Type:
-
New Product 2022
-
PLC Brand:
-
Befitter
-
Max cutting size:
-
A3+(483*330mm)
-
Tool type:
-
Blades,creasing tool, pen
-
Positioning method:
-
High resolution CCD camera
-
Scanning code type:
-
dot mark/QR code
Quick Details
-
Type:
-
Die-cutting Machine
-
Production Capacity:
-
960mm/s
-
Max. workable width:
-
A3+(483*330mm)
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Befitter
-
Voltage:
-
220V
-
Dimension(L*W*H):
-
787*740*1320mm
-
Weight:
-
114 kg
-
Marketing Type:
-
New Product 2022
-
PLC Brand:
-
Befitter
-
Max cutting size:
-
A3+(483*330mm)
-
Tool type:
-
Blades,creasing tool, pen
-
Positioning method:
-
High resolution CCD camera
-
Scanning code type:
-
dot mark/QR code
Product Description

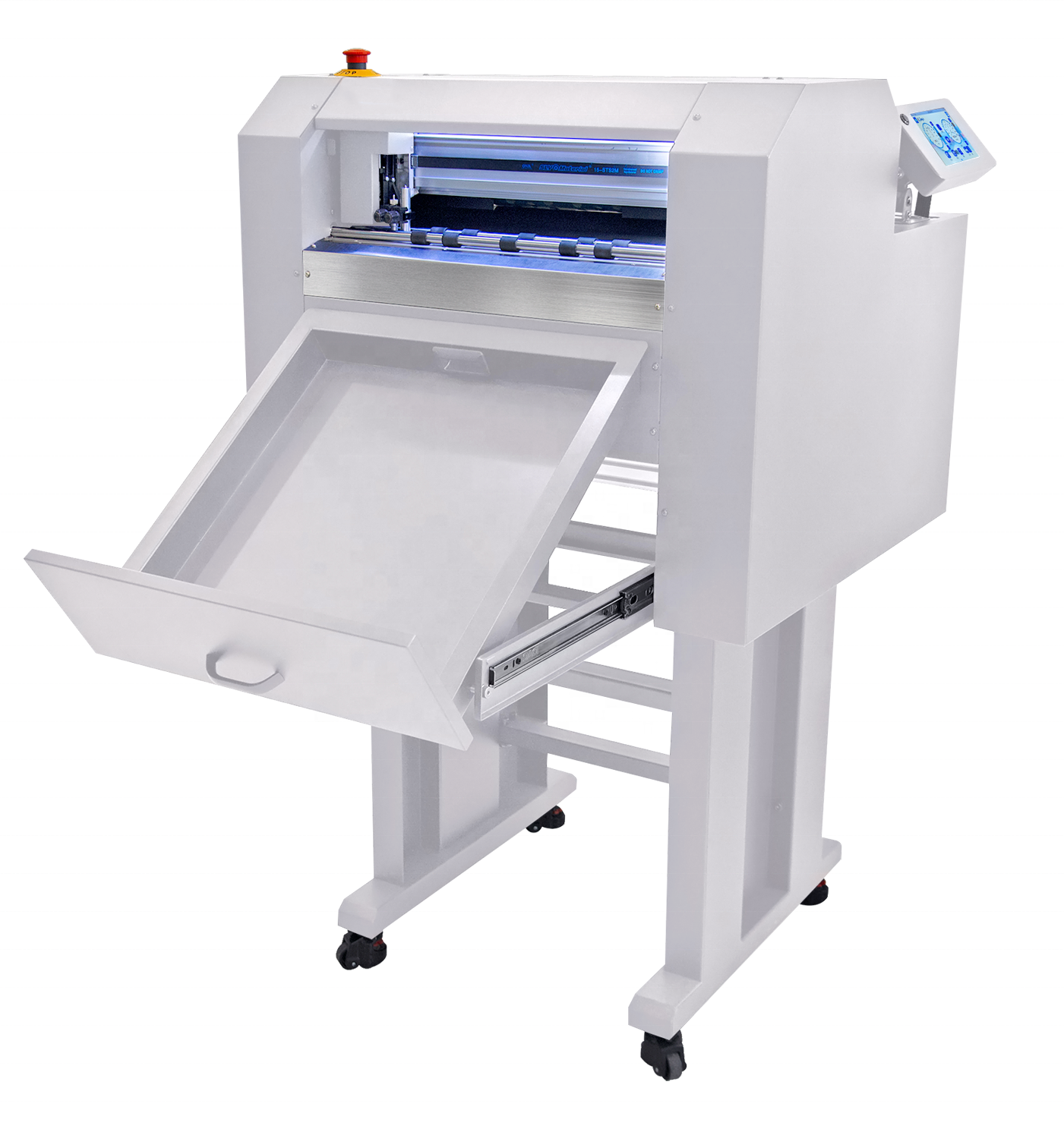

A3+ Air suction automatic feeding CCD camera stickers cardboard PVC label sheet creasing die cutting machine
Feature
The sheet label cutter is designed for multiple functions including cutting and creasing.
With dual tools, it can easily make full cutting, kiss cutting, creasing and plotting. The
unique air suction paper feeding method, suitable for wider range of materials, including
self-adhesive, paper cards, films and so on. It is the ideal machine for reliable and
automatic production of labels and small packaging boxes, great choice of copy shops,
product labeling, office applications and many others.
With dual tools, it can easily make full cutting, kiss cutting, creasing and plotting. The
unique air suction paper feeding method, suitable for wider range of materials, including
self-adhesive, paper cards, films and so on. It is the ideal machine for reliable and
automatic production of labels and small packaging boxes, great choice of copy shops,
product labeling, office applications and many others.
Samples
APPLICATION:
Manufacture Specification
|
Model
|
ASC1907
|
|
Max cutting size
|
A3+(483*330mm)
|
|
Tool type
|
Blades, creasing tool,pen
|
|
Paper feeding method
|
Top suction feeding system
|
|
Positioning method
|
High resolution CCD camera
|
|
Scanning code type
|
dot mark/QR code
|
|
Scan marks speed
|
5-10s
|
|
Max cutting speed
|
960mm/s
|
|
Max force
|
creasing tool:0-750gf(3gf step)
cutting tool:0-750gf(3gf step)
|
|
Mechanical resolution
|
0.2mm
|
|
Die cutting precision
|
0.1mm(duplicate)
|
|
Min label size
|
5*5mm
|
|
Max feeder capacity
|
1000sheets(200gsm)
|
|
Max material thickness
|
350gsm
|
|
Cutting control system
|
XY-High-power brush-less servo motor
|
|
Control panel
|
5 inch touch screen+physical buttons
|
|
Data transfer method
|
USB
|
|
OS Compatible
|
Windows7,8,10
|
|
Software
|
Dedicated cutting server(equipped with CDR and AI plugin)
|
|
Power
|
350W
|
|
Working voltage
|
110VAC-120VAC,50/60HZ, max current 6.8A
200VAC-240VAC,50/60HZ, max current 3.4A
|
|
Machine size
|
787*740*1320mm
|
|
Packing size
|
970*970*880mm
|
|
Machine weight(N.W/G.W)
|
114kg/146kg
|
