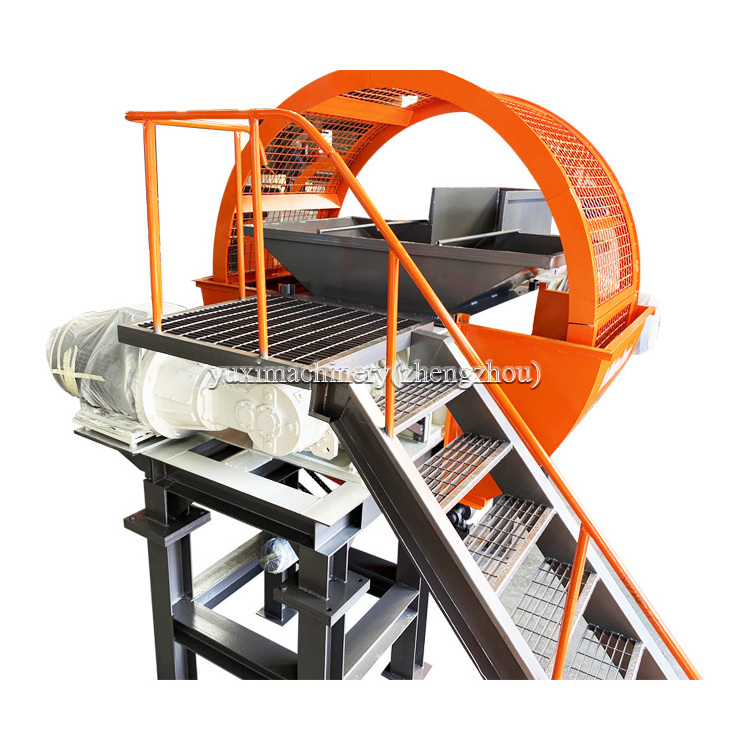

Waste Plastic Rubber Recycling Machines Double Shaft Used Tires Shredder For Sale
Waste Plastic Rubber Recycling Machines Double Shaft Used Tires Shredder For Sale
Waste Plastic Rubber Recycling Machines Double Shaft Used Tires Shredder For Sale
Waste Plastic Rubber Recycling Machines Double Shaft Used Tires Shredder For Sale
Waste Plastic Rubber Recycling Machines Double Shaft Used Tires Shredder For Sale
Waste Plastic Rubber Recycling Machines Double Shaft Used Tires Shredder For Sale
Waste Plastic Rubber Recycling Machines Double Shaft Used Tires Shredder For Sale
Waste Plastic Rubber Recycling Machines Double Shaft Used Tires Shredder For Sale

Waste Plastic Rubber Recycling Machines Double Shaft Used Tires Shredder For Sale

FOB Reference Price: Get Latest Price
≥1 Sets
US $16980
≥5 Sets
US $12460
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Production Capacity (kg/h):
5000 - 8000 kg/h
Brand Name:
YUXI
Voltage:
380V/50Hz/3Phase
Dimension(L*W*H):
3200*2000*1900mm
Power (kW):
74
Weight (T):
5.7
Capacity:
6-10T/H
Type:
Two Shaft shredder
Blade material:
9CrSi/D2/SKD-11

Quick Details

Max.Production Capacity (kg/h):
8000
Place of Origin:
Henan, China
Machine Type:
Tires Shredder
Production Capacity (kg/h):
5000 - 8000 kg/h
Brand Name:
YUXI
Voltage:
380V/50Hz/3Phase
Dimension(L*W*H):
3200*2000*1900mm
Power (kW):
74
Weight (T):
5.7
Capacity:
6-10T/H
Type:
Two Shaft shredder
Blade material:
9CrSi/D2/SKD-11
Product Description

Introduction

YX series double shaft shredder is designed large torque shear equipment in order to break large hard materials.The equipment is widely used to tear up the bundles of material containing foreign matter or high hardness materials.The modular design of the machine box greatly reduces the cost of maintenance of the main components of the equipment,Save maintenance time,In the large-scale cutting equipment has a great advantage.
Available according to customer requirements:

♣ Custom motor power and reducer
♣ Hydraulic drive (non-motor drive)
♣ Hydraulic press device
♣ Cutlery thickness and number of knives
Model
YX-600
YX-1000
YX-1200
YX-1500
Spindle power
4-15*2KW
4-30*2KW
4-37*2KW
4-45*2KW
Spindle speed
18-20r/min
18-20r/min
18-20r/min
14-16r/min
Capacity
2-5t/h
5-10t/h
6-15t/h
8-18t/h
Number of  cutterpan
26
30
28
30
Diameter cutterpan
260
360
372
530
Broken size
3-10cm
3-10cm
3-10cm
3-10cm
Hopper size
820*900mm
1200*1000mm
1400*1000mm
2000*2000mm
Dimensions(mm)
2600*2000*1900
3000*2000*1900
3200*2000*1900
4000*1700*2400
Weight
2.5t
5t
6t
12t

♣ A variety of containers: plastic beverage cans, plastic barrels, drums, crates, packaging barrels,PP bottle,PE pet bottle.
♣ Waste appliances: TV, washing machine, refrigerator shell, printer, keyboard, waster Microwave oven,waster computer,waster mouse,Circuit board.
♣ Pipe: large pipe, pipe fittings, PE pipe,PVC tube.
♣ Wood: wooden pallets, plastic pallets, forklift pallets,Used furniture.
♣ Rubber:waster wire, tires tires, truck tires.
♣ Scrap metal: car shell, aluminum, scrap aluminum, engine shell, Lead plate,waster steel,waster iron.
♣ Garbage:Food waste,animal carcass, medical waste, garden garbage,Fruit trash,Vegetable trash,glass.
We can see the effect of shredding as follows:

Details Images
Working Principle
The material enters the shredding box by the feeding system. The chamber carries a shredding blade. The material is shredded into small pieces by a combination of tearing, squeezing, and shearing.

Double shaft shredder blade thickness is divided into 15mm, 20mm, 40mm, 50mm, 75mm, 100mm. The blade thickness can be selected according to the final product size.
Machine Blades
The shredder machine can be customized different blades according to your raw materials and finished product size.
Planetary Reducer
►The internal gear of the planetary reducer adopts 20CrMnTi carburizing and quenching and has the characteristics of small volume, lightweight, high bearing capacity, long service life, stable operation, low noise, large output torque, large speed ratio, high efficiency, and safety performance. ►It has the characteristics of power splitting and multi-tooth meshing.
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine and use the machine.

* Engineers available to service machinery overseas.

More pictures
Our Company

Package & Delivery

Certifications
FAQ

Q: Why choose us?

A: Several year's experience
We have rich experience in equipment. Our machines have high reputation at our country and abroad(such as the Middle East,Southeast Asia,Africa and so on more than 10 countries and regions.)
Manufacturer,not dealer
Factory direct sale makes price more competitive.Customer are always welcome to our factory.
Fast delivery:
We promise the goods can be shipped out on delivery date after confirmation of the order.
Professional after-sale service
Professional after sale service.if necessary,oversea installation and provide technical exchange, train client to operate the machine.Any other reasonable assistance what you needed, please contact us.

Q: How about price?
A: We are factory and be able to give you the lowest price than market one, and we have a policy that " for saving time and absolutely honest business attitude,we quote as low as possible for any customer, and discount can be given according to quantity".
Q: When we only building one shredder machine production line, can we use it to shred wood
material or waste metal material?
A: Yes, you can. It depends on the difference of blades teeth and quantity.Can be customized.
Q: What is the difference between your machine and others'?
A: Every machine is unique, We can help you decide your unique situation and decide which tool is right for your job.
Q: Will you dispatch the engineer to guide installation the high output shredder equipment ?
A: Yes, according to the customer's requirement, we will dispatch the engineer to guide installation the high output shredder equipment .
Q: How about you to ensure the shredder machine equipment normal running?
A: Except the installation engineer, we also provide the production engineer to guide how to keep a good production.
