Quick Details
-
Model Number:
-
TLT240SB
-
Warranty:
-
1 Years
-
warranty:
-
one year
-
Voltage:
-
220v/380V
-
Motor power:
-
2 .2kw
-
Color:
-
Blue.Red.Grey
-
Max lifting height:
-
1850mm
-
Application:
-
Car Repair Center
-
Certification:
-
ce
Quick Details
-
Lifting Capacity:
-
4000kg
-
Place of Origin:
-
China
-
Brand Name:
-
cnlaunch
-
Model Number:
-
TLT240SB
-
Warranty:
-
1 Years
-
warranty:
-
one year
-
Voltage:
-
220v/380V
-
Motor power:
-
2 .2kw
-
Color:
-
Blue.Red.Grey
-
Max lifting height:
-
1850mm
-
Application:
-
Car Repair Center
-
Certification:
-
ce

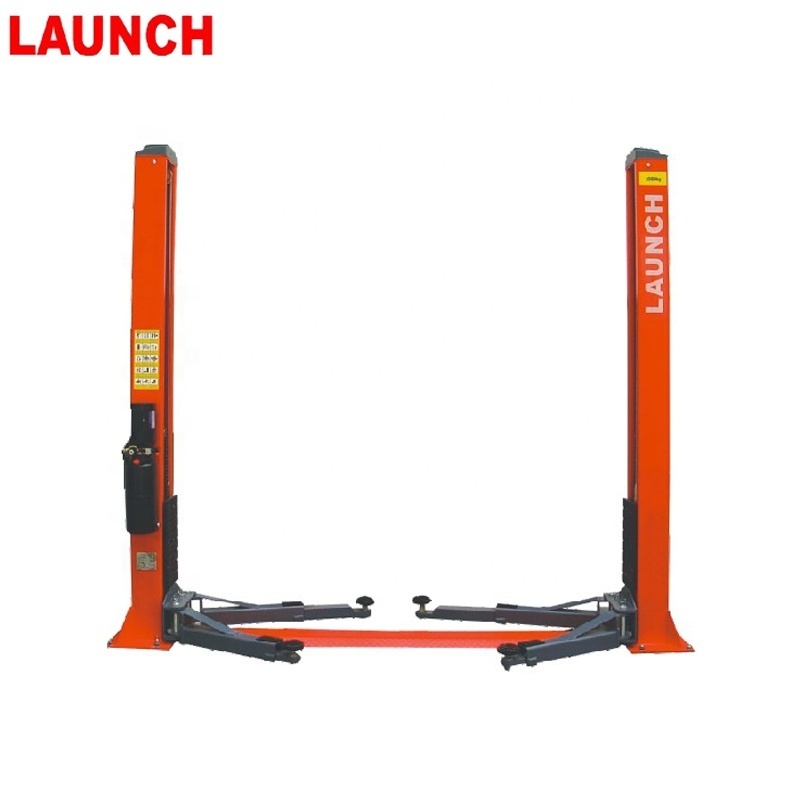

TLT240SB Car Shop used 2 post car lift for sale
TLT240SB Economical Floor Plate Two Post Lift(CE standard configuration)
Economical Floor Plate Two Post Lift (Rated Capacity: 4.0Ton)
Feature
Bilateral manual safety unlocking system.
The cable and oil pipe are fully concealed; with decent and
elegant appearance.
Double hydraulic cylinder and high strength chain drive
makes stable and smooth lifting and lowering.
Wire rope equalization system forces synchronous
movement of two carriages and effectively prevents vehicle
form tilting.
24V low voltage control box(IP54 level)ensures operator's
safety .
24V cylinder travel limit switch effectively protects cylinder
and extends its lifespan
Door rubber pad protects car door from being damaged in
collision.
More lifting pads with different height meets the
requirements for light lorries and SUVs.
Passed 115% dynamic loading test and 150% static loading
test.
CE certificated.
| Specification | |
| Rated load | 4000kg |
| Lifting height | 1850mm |
| Initial height | 110mm |
| Lifting time | 50s |
| Lowering time | 20s 40s |
| Passing width | 2486mm |
| Overall height | 3370mm |
| Motor power | 2 .2kw |
| Motor voltage | 3 phase/380v or Single phase/220V |
| Working noise | 75dB(A) |
| Working oil pressure | 18M Pa Specification |
Dimensions:
