Quick Details
-
Model Number:
-
HM-SZ211026
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Hangmei
-
Product name:
-
portable shipping container hydroponics farm greenhouse agriculture
-
Application:
-
Agriculture Hydroponic Planting
-
Features:
-
temperature climate control,led grow lemp
-
Growing system:
-
vertical farming
-
Product series:
-
40ft container vertical farm
-
Inner dimension:
-
11585x2290x2544mm
-
External dimensions:
-
12191x2438x2896mm
-
Optional system:
-
Hydroponic Growth System Etc
-
Delivery time:
-
Shipped Within 15-30 Days
-
Advantage:
-
High Field Output
Quick Details
-
Size:
-
Small
-
Type:
-
container greenhouse
-
Cover Material:
-
Steel Structure
-
Model Number:
-
HM-SZ211026
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Hangmei
-
Product name:
-
portable shipping container hydroponics farm greenhouse agriculture
-
Application:
-
Agriculture Hydroponic Planting
-
Features:
-
temperature climate control,led grow lemp
-
Growing system:
-
vertical farming
-
Product series:
-
40ft container vertical farm
-
Inner dimension:
-
11585x2290x2544mm
-
External dimensions:
-
12191x2438x2896mm
-
Optional system:
-
Hydroponic Growth System Etc
-
Delivery time:
-
Shipped Within 15-30 Days
-
Advantage:
-
High Field Output
Greenhouse Details Introduction

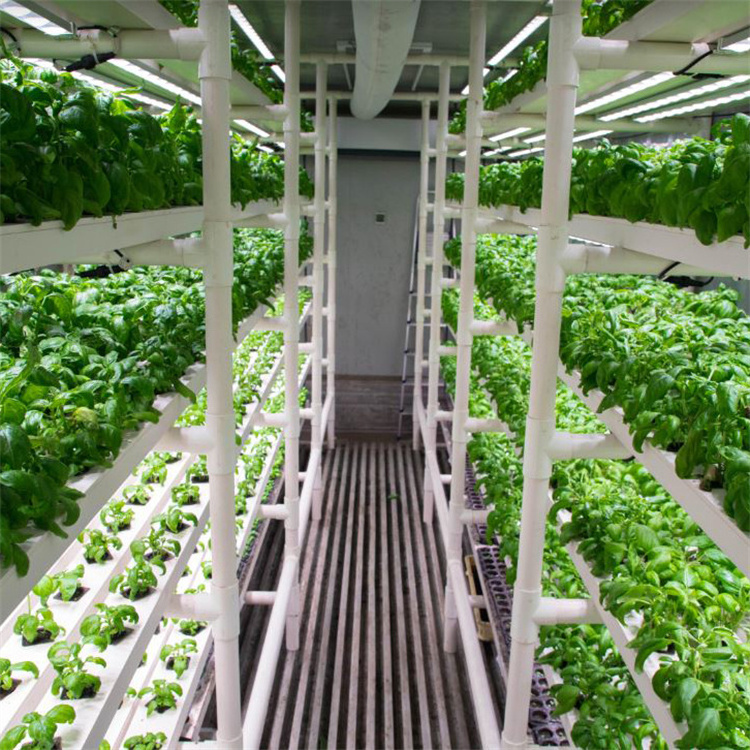

THE CONTAINER FARM: A NEW TYPE OF AGRICULTURE
We use 40HC refrigerated container with a good insulation. It is a closed growing system which enables a farmer (agrotechnician) to achieve constant production of vegetables all year around. The facility utilizes artificial control of light, temperature, moisture, and carbon dioxide concentrations.
Plant factories can produce vegetables about two to four times faster than typical outdoor planting.
Organic crops grown are healthier and do not use pesticides.
The plant factory can be moved to facilitate the transportation of vegetables
|
Container Greenhouse
|
|
|
|
|||
|
1、40RF（inner size:2.3m*2.6m*11.9m），growing area 2.3m*10.5m，control area 2.3m*1.5m
2、2 sets growing bed with the width of 800mm or 850mm 3、container equipped with intelligent control system、growing system，irrigation system，growing lighting system，air-condition system，fresh air circulation system，CO2 system etc. |
|
|
|
|||
|
NO.
|
name
|
|
specification
|
|||
|
1
|
container
|
|
40RF
insulated container polyurethane insulation layer |
|||
|
2
|
floor
|
|
1.5mm PVC plastic flooring;
Wear-resistant and waterproof |
|||
|
3
|
growing system
|
growing bed
|
support frame, net
|
|||
|
|
|
growing pot
|
PE pot
|
|||
|
|
|
drainage gutter
|
PE drainage gutter
|
|||
|
4
|
fertilizer and irrigation system
|
pump
|
Constant pressure water pump
|
|||
|
|
|
irrigation pipe
|
Φ20 PE pipe
|
|||
|
|
|
water dropper
|
4L/h
|
|||
|
|
|
drop arrow
|
2L/h, 2 pics/pot
|
|||
|
|
|
fertilizer machine
|
4 channels,peristaltic pumps injector
|
|||
|
|
|
fertilizer tank
|
food grade PP board,10L
|
|||
|
|
|
irrigation tank
|
food grade PP board,300L
|
|||
|
|
|
EC sensor
|
220V.3.2-inch display screen，
0.2-200.0US/CM |
|||
|
|
|
PH sensor
|
220V.3.2-inch display screen，
0-14PH |
|||
|
5
|
growing lighting system
|
light
|
200W,LED special for cannabis
|
|||
|
|
|
jacking system
|
motor, driving system
|
|||
|
6
|
illuminating system
|
control area
|
220V,20W,white light
|
|||
|
|
|
growing area
|
220V,20W,white light
|
|||
|
7
|
fresh air circulation system
|
fresh air machine
|
air exchange function and heat recovery function
|
|||
|
|
|
circulation fan
|
220V,30W,200m³/h
|
|||
|
|
|
air pipe
|
PVC pipe
air outlet and return air inlet |
|||
|
8
|
air conditioning system
|
air conditioner |
Cooling/Heating
Refrigeran: R410a Power: 3HP Refrigerator Power:2350W Heating power:2800W Circulating Air Volume: 1200m³/h. |
|||
|
9
|
growth blowing system
|
fan
|
3 speed regualtion and shaking function
|
|||
|
10
|
intelligent control system
|
intelligent control box
|
10 inches touch screen, manual and automatic control, PLC control system,online control function
Siemens PLC controller Schneider electrical accessories |
|||
|
11
|
CO2 sytems
|
|
8L CO2 tank
solenoid valve Pressure reducing valve |
|||
|
12
|
sensors
|
indoor air temperature,
humidity and CO2 integrated sensor |
LED display,
-40 to 125℃, 0-100%RH. RS485 output |
|||
|
|
|
soil temperature
and humidity sensor |
24V,0.4W,0-5000PPM
measuring range:-40℃～+80℃ 0RH%-100RH% |
|||
|
|
|
illumination intensity
|
0-200000 LUX
precision: ±7%(25℃) RS485 output response time:0.1s |
|||
|
|
|
Weather station
|
air temperature, humidity and CO2
|
|||
|
13
|
other accessories
|
|
cable, cabling channel,conduit,pvc pipe, valve etc.
|
|||
