Price Term:EXW Shenzhen,China
Payment Term:T/T in advance
Delivery Time:10 days ARO
Packing Details: standard Export Packing or customized packing
- Product Details
- {{item.text}}
Quick Details
-
Product name:
-
Mini Agile TV Demodulator
-
Model:
-
GDM100 Mini Agile TV Demodulator
-
Application:
-
CATV, CCTV or Video Surveillance
-
Input Frenquency Range:
-
50MHz~860MHz
-
RF Return Loss:
-
14dB
-
Input Level:
-
-10dBmV~+15dBmV
-
Input Impedance:
-
75Ω
-
Noise Figure:
-
10dB (typ.)
-
Type:
-
Cable TV System
-
Power:
-
220V AC power supply
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Greatway
-
Model Number:
-
GDM100 Mini Agile TV Demodulator
-
Product name:
-
Mini Agile TV Demodulator
-
Model:
-
GDM100 Mini Agile TV Demodulator
-
Application:
-
CATV, CCTV or Video Surveillance
-
Input Frenquency Range:
-
50MHz~860MHz
-
RF Return Loss:
-
14dB
-
Input Level:
-
-10dBmV~+15dBmV
-
Input Impedance:
-
75Ω
-
Noise Figure:
-
10dB (typ.)
-
Type:
-
Cable TV System
-
Power:
-
220V AC power supply
Product Description

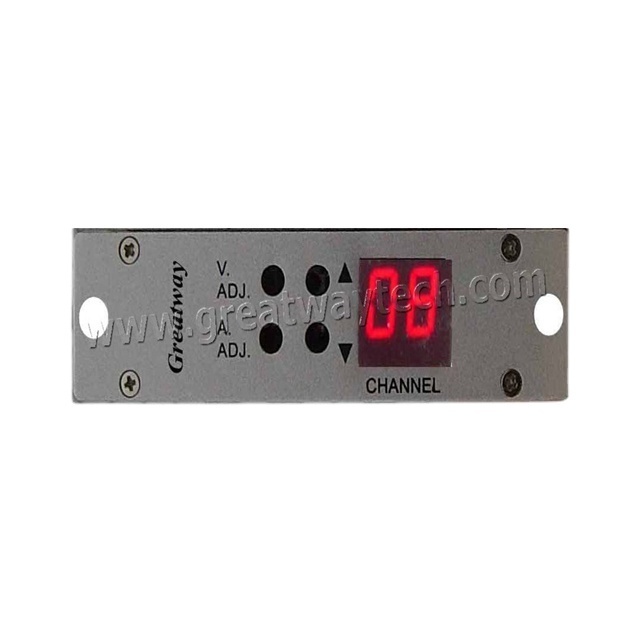

GDM100 is a modular mini agile TV demodulator for applications in CATV, CCTV or Video Surveillance. The input TV signal is demodulated as adjustable video and audio with excellent SNR. GDM100 can be used with external 12V DC power adapter or mounted on the 19” 2U Chassis.
Features
● 45~862MHz NTSC or PAL TV Channel RF Input
● Video and Audio Outputs Adjustable
● Saw Filter on IF for better channel selection
● Modular Design for Stand along or 19” 2U Chassis
Specification
|
RF
|
|
|
|
Input Frequency Range
|
50MHz ~ 860MHz
|
|
|
RF Return Loss
|
14dB
|
|
|
Input Level
|
-10dBmV ~ +15dBmV
|
|
|
Input Impedance
|
75Ω
|
|
|
Noise Figure
|
10dB (typ.)
|
|
|
VIDEO
|
|
|
|
Output Level
|
1V ~ 1.2Vp-p @75Ω
|
|
|
S/N Ratio
|
45dB (typ.)
|
|
|
Frequency Response
|
±1dB 5MHz ~ 3MHz, ±2dB 3 ~ 3.58MHz
|
|
|
AUDIO
|
|
|
|
Output Level
|
0.65Vrms±0.15 @25KHz
|
|
|
Output Impedance
|
600Ω
|
|
|
S/N Ratio
|
55dB (typ.)
|
|
|
Distortion Ratio
|
≤1.5%( 50Hz ~ 15KHz )
|
|
|
Frequency Response
|
≤2dB
|
|
|
GENERAL
|
|
|
|
Power Supply
|
12V DC / 180mA
|
|
|
Operational Temperature
|
0℃ ~ 70℃
|
|
|
Dimensions
|
104 × 29 × 150mm
|
|
Ordering Information:
GDM100-A-B Mini Agile TV Demodulator
A (TV System): N_NTSC, P_PAL D/K, PB_PAL B/G
B (Power Adapter): D_Default, C_CE certified, P_PSE Certified, U_UL Certified
