Quick Details
-
Certification:
-
ISO
Quick Details
-
Weight (KG):
-
15
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
JS
-
Certification:
-
ISO

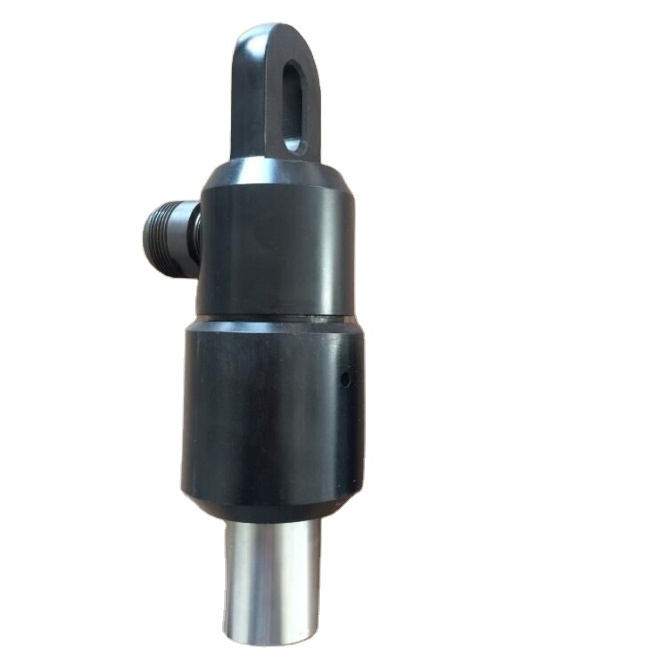

Surface Compact Plus Water Swivel
BQ NQ HQ PQ Compact Plus / Universal Water Swivel for drilling rig
JINSHI have Standard universal water swivel and Compact Plus water swivel for drilling.
Features:
1. suitable for use with water or drilling mud only. Packing and mating wear wear sleeves are subject to wear and generally operate with a small degree of leakage depending on RPM and vibration level.
2.adapter subs are available to adapt to BQ NQ HQ PQ drill rod.
Compact Plus water swivel Features:
• Swivel cap complete with lifting bail for hoisting cable
applications.
• #16 NPT hose connection.
• AW rod box spindle connection.
• Suitable for use with water or drilling mud.
• Easy servicing in the field with common tools.
• Majority of components are common with underground compact
plus water swivel.
Surface Universal Water Swivel
Features:
• Swivel cap complete with lifting bail for hoisting cable applications.
• #20 NPT hose connection.
• BW rod box spindle connection.
• Specially designed bearing lubrication keeps contaminants away and relieves excess lubrication pressure.
• Suitable for use with water or drilling mud.
• Easy servicing in the field with common tools.
|
ID |
Item |
Unit |
Weight (Kg) |
|
1-15 |
C01 type water swivel |
set |
14.43 |
|
1 |
Swivel cap |
pc |
6.30 |
|
1A |
Hose joint |
pc |
0.50 |
|
2 |
Spring |
pc |
0.02 |
|
3 |
Swivel packing |
set |
0.05 |
|
4 |
O ring |
pc |
0.01 |
|
5 |
Swivel packing housing |
pc |
1.00 |
|
6 |
Spindle nut |
pc |
0.20 |
|
7 |
Spacer |
pc |
0.01 |
|
8 |
Washer |
pc |
0.01 |
|
9 |
Water tube |
pc |
0.30 |
|
10 |
Retaining ring |
pc |
0.02 |
|
11 |
Ball Bearing |
pc |
0.70 |
|
12 |
Spindle |
pc |
1.70 |
|
13 |
Thrust Bearing |
pc |
0.50 |
|
14 |
Swivel body |
pc |
3.10 |
|
15 |
Grease fitting |
pc |
0.01 |
we also have JS-01, JS-02, JS-03, JS-04 water swivel, which can drill from shallow to deep holes.
Jinshi will response in 8 hours to the problems caused by our products. When necessity arises inside the country, technical support will arrive in 24 hours within a 1000 kilometers radius of the company, will arrive in 48 hours for other parts of China. Due to the limitation of branch offices in foreign countries, technical support will arrive your work site in 15 days after visa is issued.
