Quick Details
-
Color Print Speed:
-
Null
-
Max. Resolution:
-
203dpi
-
Brand Name:
-
NAITING
-
Model Number:
-
NT-POS80-BS
-
Place of Origin:
-
Shanghai, China
-
Product name:
-
260mm/s thermal receipt bill printer 80mm
-
Printing Method:
-
Thermal Line Printing
-
Application:
-
Department Stores, Supermarket
-
Paper type:
-
thermal printer Paper
-
Interface:
-
USB+LAN
-
Print command:
-
ESC/P0S
-
Key:
-
printer thermal
-
Color:
-
Black Color
-
Weight:
-
2kg
-
Paper width:
-
79.5+/-0.5 Mm
Quick Details
-
Interface Type:
-
usb+ethernet
-
Max Paper Size:
-
80mm
-
Black Print Speed:
-
250mm/s
-
Color Print Speed:
-
Null
-
Max. Resolution:
-
203dpi
-
Brand Name:
-
NAITING
-
Model Number:
-
NT-POS80-BS
-
Place of Origin:
-
Shanghai, China
-
Product name:
-
260mm/s thermal receipt bill printer 80mm
-
Printing Method:
-
Thermal Line Printing
-
Application:
-
Department Stores, Supermarket
-
Paper type:
-
thermal printer Paper
-
Interface:
-
USB+LAN
-
Print command:
-
ESC/P0S
-
Key:
-
printer thermal
-
Color:
-
Black Color
-
Weight:
-
2kg
-
Paper width:
-
79.5+/-0.5 Mm
Products Description
|

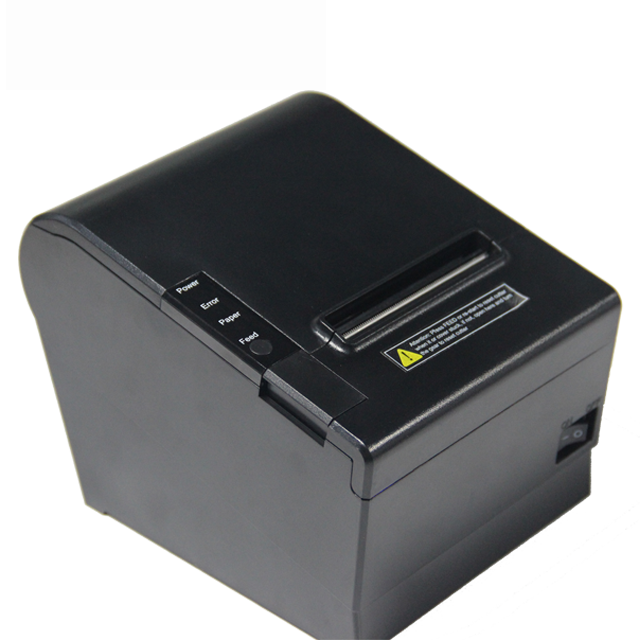

Item 80MM thermal printer NT-POS80-BS
|
|
Parameter
|
|
|
Printing parameter
|
Printing method
|
Thermal printing
|
|
|
|
Resolution
|
203DPI,8 dots/mm
|
|
|
|
Printing width
|
72mm(576 dots)
|
|
|
|
Printing speed
|
About 250 mm/s
|
|
|
|
Interfaces
|
USB+Ethernet
|
|
|
Power supply
|
Input
|
100-240V AC,50-60HZ
|
|
|
|
Output
|
24V DC-2.0A
|
|
|
|
External Only
|
Power Adaptor
|
|
|
Command set
|
/
|
ESC/POS compatible commands
|
|
|
Storage
|
RAM
|
RAM 8M bytes, receive buffer area 1M bytes
|
|
|
|
FLASH
|
FLASH 8k bytes, NV bitmap 256K bytes
|
|
|
characters
|
Chinese
|
GB18030 24×24
|
|
|
|
Words, figures
|
ASCII 9×17,12×24
|
|
|
|
User-defined
|
Support
|
|
|
|
Code pages
|
Optional international character sets 45
|
|
|
Bar codes
|
1D
|
UPC-A、UPC-E、EAN-8、EAN13、CODE39、ITF、CODEBAR、CODE128、CODE93
|
|
|
2D
|
PDF417、QR Code
|
|
Detection function
|
Sensor
|
Paper out, cover opened, paper will be lack(optional),un-take out printed paper(optional)
|
|
LED indicator
|
Power indicator
|
Green
|
|
|
Paper out indicator
|
Red
|
|
|
Error indicator
|
Red
|
|
Buzzer
|
/
|
Built-in Buzzer
|
|
Paper Requirement
|
Type
|
Standard thermal receipt paper
|
|
|
Width
|
79.5±0.5mm
|
|
|
Thickness
|
0.056~0.1mm
|
|
|
Diameter
|
80mm(Max.)
|
|
Physical characteristics
|
Paper loading
|
Easy paper loading
|
|
|
Paper cutting
|
Manual or automatically cut paper
|
|
|
Operating condition
|
-10℃ ~ 50℃，25% ~ 80%RH
|
|
|
Storage condition
|
~40℃ ~ 70℃，≤93%RH（40℃）
|
|
|
Outline dimension
|
145mm×195mm×144mm（W×L×H）
|
|
|
Weight
|
1.5Kg
|
|
Reliability
|
TPH life
|
150km
|
|
|
Cutter life
|
2,000,000 times
|
|
|
Motor life
|
360,000 hours
|
|
Software function
|
Driver procedure
|
Windows（WIN7/WIN8/Vista/XP/2000）
Ubuntu 12.04 32/64, Ubuntu 14.04 32/64 |
