Quick Details
-
Application:
-
Traffic Control
-
Power supply:
-
Lithium Battery 30Ah
-
Shape:
-
Rectangle
-
Weight:
-
2.85kg
-
Working time:
-
24hours Working
-
screen:
-
6.5 inch
-
Work temperature:
-
-40℃ to 60℃
-
battery:
-
30Ah
-
WARRANTY:
-
1 Year
Quick Details
-
Place of Origin:
-
Liaoning, China
-
Brand Name:
-
DEAN
-
Product name:
-

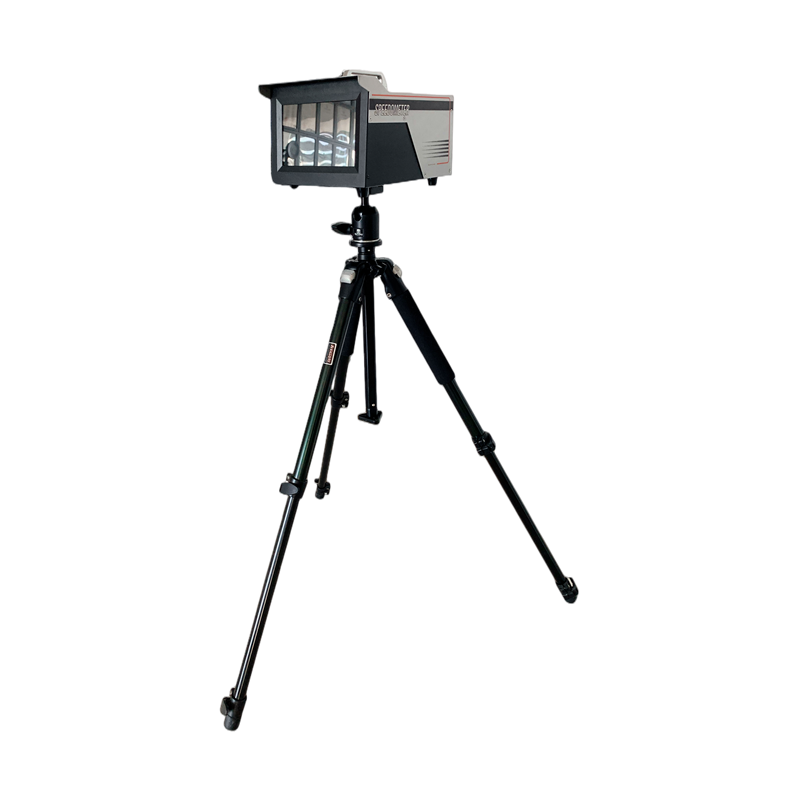

Integrated vehicle over speed radar detector camera
-
Application:
-
Traffic Control
-
Power supply:
-
Lithium Battery 30Ah
-
Shape:
-
Rectangle
-
Weight:
-
2.85kg
-
Working time:
-
24hours Working
-
screen:
-
6.5 inch
-
Work temperature:
-
-40℃ to 60℃
-
battery:
-
30Ah
-
WARRANTY:
-
1 Year
Product Description
Specification
|
|
parameter name
|
Specific parameters
|
|
device host
|
size
|
220*190*155mm
|
|
|
shell material
|
Galvanized spray paint shell
|
|
|
Weight (KG)
|
3.85KG
|
|
industrial computer
|
model
|
ECM-I715
|
|
|
size
|
1(W*H): 146mm*108mm
|
|
|
processor
|
Intel® Celeron® Processor J1900 processor frequency 2.0~2.42GHz, quad-core four-thread, 2M cache, 22nm, TDP 10W
|
|
|
system memory
|
DDR3L 4G
|
|
|
hard disk
|
128G solid state
|
|
|
power supply
|
DC IN 9~36V
|
|
|
Operating temperature
|
-20℃～60℃
|
|
|
Storage temperature
|
-40℃～85℃
|
|
|
operating system
|
Windows 7
|
|
display screen
|
model
|
LCD screen EE070NA-01D
|
|
|
size
|
7 inches
|
|
|
resolution
|
1024*600
|
|
|
Display mode
|
Normally White, Transmissive
|
|
radar
|
speed error
|
When the speed value is between 0-100km/h, the error is less than -3km/h. When the speed value is greater than 100km/h, the error
is less than -3%. |
|
|
Speed range
|
(10~300)km/h
|
|
|
working frequency
|
24.14.GHz
|
|
|
capture rate
|
>99%
|
|
|
Capture distance
|
0-300m
|
|
|
power supply
|
(9 ~ 16) VDC
|
|
|
trigger form
|
Support head, tail, double trigger
|
|
|
direction discrimination
|
Support, can distinguish coming and going
|
|
|
Working power consumption
|
<2W
|
|
|
Operating temperature
|
-40℃~ 85℃
|
|
|
Working humidity
|
Relative humidity 5% ~ 95%
|
|
|
protection level
|
IP67
|
|
|
weight
|
0.5 kg
|
|
camera
|
model
|
MER-503-20GM/CP
|
|
|
resolution
|
2448(H)×2048(V)
|
|
|
frame rate
|
20 fps
|
|
|
sensor
|
2/3" ,Global Shutter Sony IMX264 CMOS
|
|
|
pixel size
|
3.45 μm × 3.45 μm
|
|
|
spectrum
|
black and white / color
|
|
|
exposure time
|
20μs~1s
|
|
|
power supply interface
|
12 VDC (powered by 8-Pin interface) or PoE
|
|
|
power
|
<3W @12VDC, <3.75W@PoE
|
|
|
Operating temperature
|
0°C ~ +45°C
|
|
|
storage temperature
|
-20°C ~ +70°C
|
|
|
Working humidity
|
10% ~ 80%
|
|
Battery
|
type
|
External 30AH lithium battery
|
|
|
Specification
|
223*81*171mm; 2.7KG
|
|
|
shell material
|
Anti-static aluminum-magnesium alloy oxidation paint shell
|
|
|
Endurance
|
About 10 hours; depending on the use environment
|
|
|
charging time
|
about 7 hours
|
|
tripod
|
tripod
|
Victaulic professional grade tripod
|
|
|
Tripod Specifications
|
175MM-1530MM; 0.433KG; black
|
|
flash
|
Flash parameters (optional)
|
Flash power: 50WS
|
|
|
|
Guide number (GN): 73 (ISO 100 1M)
|
|
|
|
Flash color temperature: 5000-6000K
|
|
|
|
Flash output power: 50WS
|
|
|
|
Call back time: 1.2s
|
|
|
|
Second flash interval: <50ms
|
|
|
|
Flash delay: less than 100us (the delay from when the camera sends a trigger signal to when the flash reaches maximum brightness).
|
|
|
|
Flashing life: no less than 1 million times (imported bayonet lights with special capacitors no less than 10 million times).
|
|
|
|
Optimum illumination distance: The illuminance that can be provided at a distance of 15-22 meters from the front of the lamp is
the best brightness. |
|
|
|
Control mode: digital input or TTL high level Working voltage: DC 12V (11V-14V)
|
|
|
|
Ambient temperature: -30℃~70℃
|
|
|
|
Sealing grade: IP65
|
