Quick Details
-
Insulation Material:
-
0
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
TANKII
-
Model Number:
-
Nichrome 80
-
Color:
-
White
-
Ni(min):
-
76%
-
Alloy Or Not:
-
alloy
Quick Details
-
Application:
-
Heating
-
Conductor Material:
-
nickel alloy
-
Conductor Type:
-
Solid
-
Insulation Material:
-
0
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
TANKII
-
Model Number:
-
Nichrome 80
-
Color:
-
White
-
Ni(min):
-
76%
-
Alloy Or Not:
-
alloy

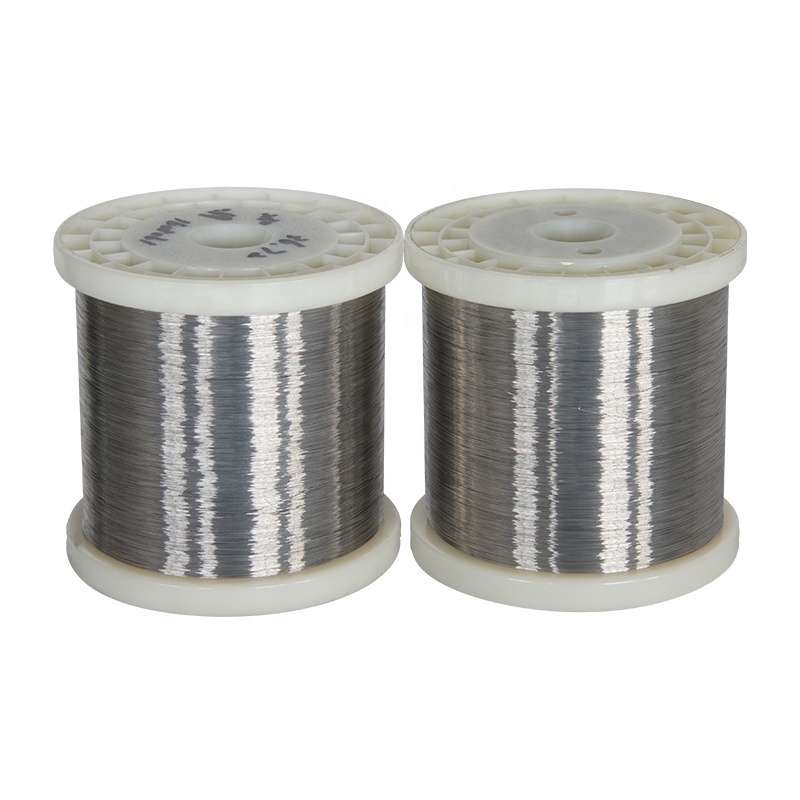

nickel nichrome electric heating alloy wire
G rade : Ni80Cr20 ,also called Ni 8,MWS-650,NiCrA,Tophet A,HAI-NiCr 80,Chromel A,Alloy A,N8,Resistohm 80, Stablohm 650,Nichorme V,Ni80 etc.
Chemical Content(%)
|
C |
P |
S |
Mn |
Si |
Cr |
Ni |
Al |
Fe |
Other |
|
Max |
|||||||||
|
0.03 |
0.02 |
0.015 |
0.60 |
0.75~1.60 |
20.0~23.0 |
Bal. |
Max 0.50 |
Max 1.0 |
- |
Mechanical Properties of nichrome wire
|
Max Continuous Service Temperature: |
1200 ℃ |
|
Resisivity 20 ℃ : |
1.09 ohm mm2/m |
|
Density: |
8.4 g/cm3 |
|
Thermal Conductivity: |
60.3 KJ/m·h· ℃ |
|
Coefficient of Thermal Expansion: |
18 α×10-6/ ℃ |
|
Melting Point: |
1400 ℃ |
|
Elongation: |
Min 20% |
|
Micrographic Structure: |
Austenite |
|
Magnetic Property: |
nonmagnetic |
Temperature Factors Of Electrical Resistivity
|
20 ℃ |
100 ℃ |
200 ℃ |
300 ℃ |
400 ℃ |
500 ℃ |
600 ℃ |
|
1 |
1.006 |
1.012 |
1.018 |
1.025 |
1.026 |
1.018 |
|
700 ℃ |
800 ℃ |
900 ℃ |
1000 ℃ |
1100 ℃ |
1200 ℃ |
1300 ℃ |
|
1.01 |
1.008 |
1.01 |
1.014 |
1.021 |
1.025 |
- |
Regular size of Nickel alloy wire :
We supply products in the shape of wire,flat wire,strip.We can also make customized material according to useris requests.
Bright and white wire--0.025mm~3mm
Pickling wire:1.8mm~10mm
Oxidized wire:0.6mm~10mm
Flat wire:thickness 0.05mm~1.0mm,width 0.5mm~5.0mm
Process:
Wire :Material preparation→melting→re-melting→forging→hot rolling→heat treatment→surface treatment→drawing(rolling)→finish heat treatment→inspection→package→warehouse
Product features of nichrome wire :
1)Excellent anti-oxidation and mechanical strength at high temperature;
2)High resistivity and low temperature coefficient of resistance;
3)Excellent reelability and forming performance;
4)Excellent welding performace
Application of all grade s :
Cr20Ni80:in braking resistors,industrial furnaces,flat irons, ironing machines, water heaters, plastic moulding dies, soldering irons, metal sheathed tubular elements and cartridge elements.
Cr30Ni70:in industrial furnaces. well suited for reducing atmospheres, as it is not subject to 'green rot'.
Cr15Ni60:in braking resistors,industrial furnaces,hot plates, grills, toaster ovens and storage heaters. For suspended coils in air heaters in clothes dryers, fan heaters, hand dryers.
Cr20Ni35:in braking resistors,industrial furnaces.In night-storage heaters, convection heaters, heavy duty rheostats and fan heaters. For heating cables and rope heaters in defrosting and de-icing elements, electric blankets and pads, car seats, baseboard heaters and floorheater.
Cr20Ni30:in solid hot plates, open coil heaters in HVAC systems, night-storage heaters, convection heaters, heavy duty rheostats and fan heaters.For heating cables and rope heaters in defrosting and de-icing elements, electric blankets and pads, car seats, baseboard heaters, floor heaters and resistors.
