Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Techfine
-
Model Number:
-
GA8048JMH
-
Input Voltage:
-
220/230/240VAC
-
Output Voltage:
-
220/230]240VAC±5%
-
Output Frequency:
-
50/60Hz±0.1%
-
Certificate:
-
CE
-
Warranty:
-
12 months
-
Maximum AC charging current:
-
60A
-
Wave form:
-
Pure Sine Sine Wave
-
Inverter efficiency:
-
98%
-
PV power:
-
16000VA
-
PV voltage range:
-
90-500VDC
-
Battery type:
-
VRLA/ GEL / DEEP CYCLE / LITHIUM
-
Battery voltage:
-
48vdc
-
Maximum PV charging current:
-
120A
-
Controller type:
-
MPPT
-
Maximum PV voltage:
-
500vdc
Quick Details
-
Output Type:
-
Single
-
Type:
-
DC/AC Inverters
-
Inverter Efficiency:
-
98%
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Techfine
-
Model Number:
-
GA8048JMH
-
Input Voltage:
-
220/230/240VAC
-
Output Voltage:
-
220/230]240VAC±5%
-
Output Frequency:
-
50/60Hz±0.1%
-
Certificate:
-
CE
-
Warranty:
-
12 months
-
Maximum AC charging current:
-
60A
-
Wave form:
-
Pure Sine Sine Wave
-
Inverter efficiency:
-
98%
-
PV power:
-
16000VA
-
PV voltage range:
-
90-500VDC
-
Battery type:
-
VRLA/ GEL / DEEP CYCLE / LITHIUM
-
Battery voltage:
-
48vdc
-
Maximum PV charging current:
-
120A
-
Controller type:
-
MPPT
-
Maximum PV voltage:
-
500vdc

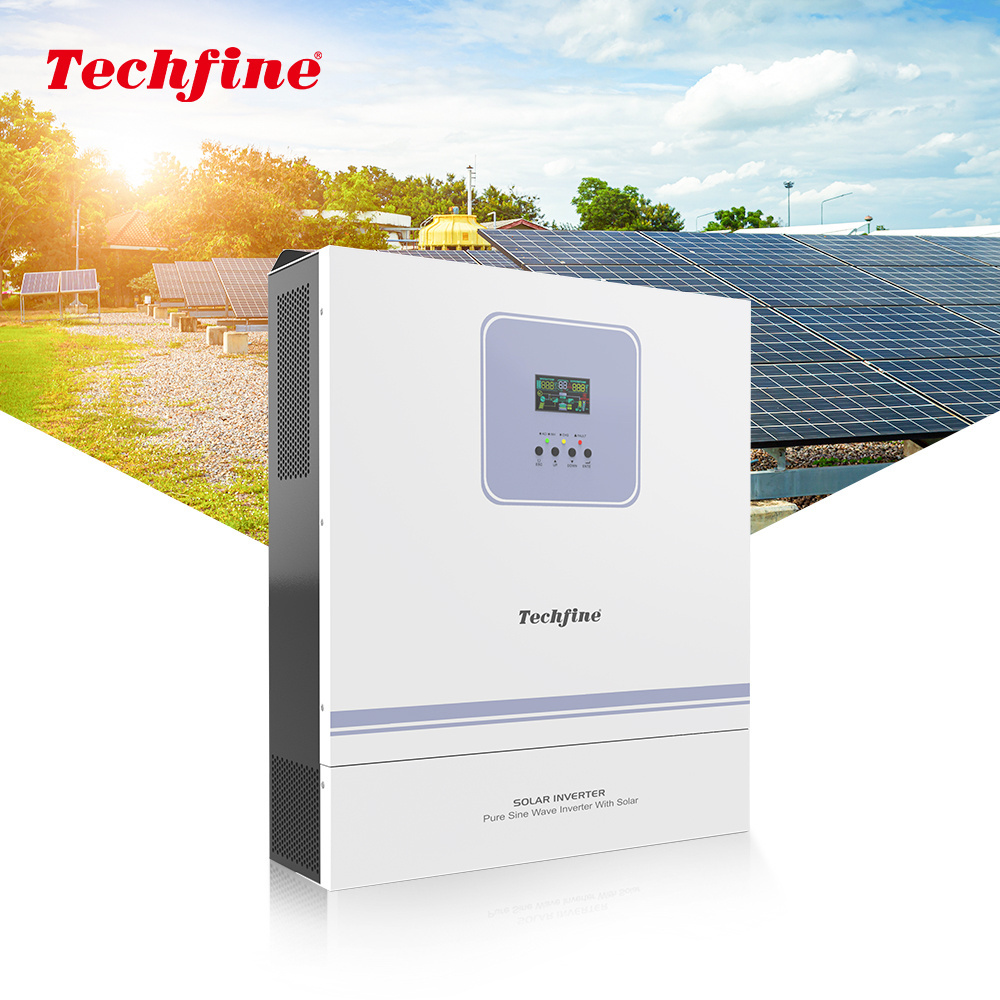

Mppt High Frequency 500vdc Solar Inverter 48V 230V 8000W Hybrid Off Grid Inverter 120A Solar Charge Controller Inverter
Products Details
Product Paramenters
Model
|
GA8048JMH
|
GA11048JMH
|
|
Nominal Voltage
|
220/230/240VAC
|
|
|
Voltage Range
|
90-280VAC3V(Inverter Mode) 170-280VAC3V(UPSMode)
|
|
|
Frequency
|
50-60Hz Auto sensing
|
|
|
Rated Output Power
|
8000W
|
11000W
|
|
Output Voltage(Ac)
|
220/230]240VAC±5%
|
|
|
Output Frequency
|
50/60Hz±0.1%
|
|
|
Waveform
|
Pure sine wave
|
|
|
Transfer time(AC to DC)
|
10ms for Computer Equipment, 20ms for Household Equipment
|
|
|
Peak Power
|
16000VA
|
22000VA
|
|
Overload Capacity(Battery Mode)
|
21s@105%~150%Load; 11s@150%~200%Load; 400ms@>200%Load
|
|
|
Peak Efficiency(Battery Model)
|
98%
|
|
|
Norminal Voltage
|
48VDC
|
|
|
constant charging Voltage
|
56.4VDC
|
|
|
Float Charging Voltage
|
54VDC
|
|
|
Pv Charging Way
|
MPPT
|
|
|
Max PV Input Power
|
2*4000W
|
2*5500W
|
|
MPPT Controller Voltage
|
90-500VDC
|
|
|
MAX PV Input Voltage
|
500VDC
|
500VDC
|
|
MAX Pv Charge Current
|
120A
|
150A
|
|
MAX AC Charge Current
|
60A
|
60A
|
|
MAX Charge Current
|
120A
|
150A
|
|
LCD Display
|
AC input Voltage,AC input frequency,PV Voltage,PV Current,Output Voltage. Output Frequency, Battery Voltage,Load Current,etc.
|
|
|
RS232
|
5PIN/Pitch2.0mm
|
|
|
Expansion Slot Communication Interface
|
2x5PIN/Pitch2.54mm,Lithium battery BMS communication card、WIFl,etc
|
|
|
Parallel Interface
|
Yes
|
|
|
Operating Temperature
|
0-40°C
|
|
|
Humidity
|
20%~95%(Non-condensing)
|
|
|
Storage Temperature
|
-15~60°C
|
|
|
Altitude
|
<1000m
|
|
|
Noise(dB)
|
≤50db
|
|
Our Company
FAQ
Q1: Are you a manufacturer or a trading company?
-- We are a factory more than 20years experience to provide good quality with competitive price.
Q2:How about the delivery time?
-
- Ready sample;7 working days for bulk order after your deposit is confirmed.
Q3:HOW IS THE AFTER-SALE SERVICE?
-- We provide 1-2years warranty and 1%sapre parts for free
Q4:WHAT KIND OF CERTIFICATION YOU HAVE?
-- EN-IEC 60335-1, EN-IEC 60335-2-29, IEC 62109-1,and so on.
-- All series UPS pass different labor testing according to different countries's requirements
-- All series UPS pass different labor testing according to different countries's requirements
Q5.CAN I HAVE A SAMPLE ORDER?
-- Yes,we welcome sample order to test and check quality.
Q6.DO YOU SUPPORT OEM ?
-- Yes.Please inform us formally before our production and confirm the design firstlybased on our sample.
