Quick Details
-
Weight (KG):
-
2100 kg
-
Product name:
-
Conveyor line Ultrasonic Cleaning
-
Application:
-
Hardware Industry
-
Ultrasonic Power:
-
3kw+3kw+2.4Kw+2.4kW
-
Ultrasonic Frequency:
-
28/40KHz Optional
-
Other Performance:
-
Filtration&circulation
-
Tank Material:
-
SUS304/SUS316
-
Unit Size:
-
6000(L)*1200(W)*680(H)mm
Quick Details
-
Marketing Type:
-
New Product 2022
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
GW SONIC
-
Weight (KG):
-
2100 kg
-
Product name:
-
Conveyor line Ultrasonic Cleaning
-
Application:
-
Hardware Industry
-
Ultrasonic Power:
-
3kw+3kw+2.4Kw+2.4kW
-
Ultrasonic Frequency:
-
28/40KHz Optional
-
Other Performance:
-
Filtration&circulation
-
Tank Material:
-
SUS304/SUS316
-
Unit Size:
-
6000(L)*1200(W)*680(H)mm
Product Description

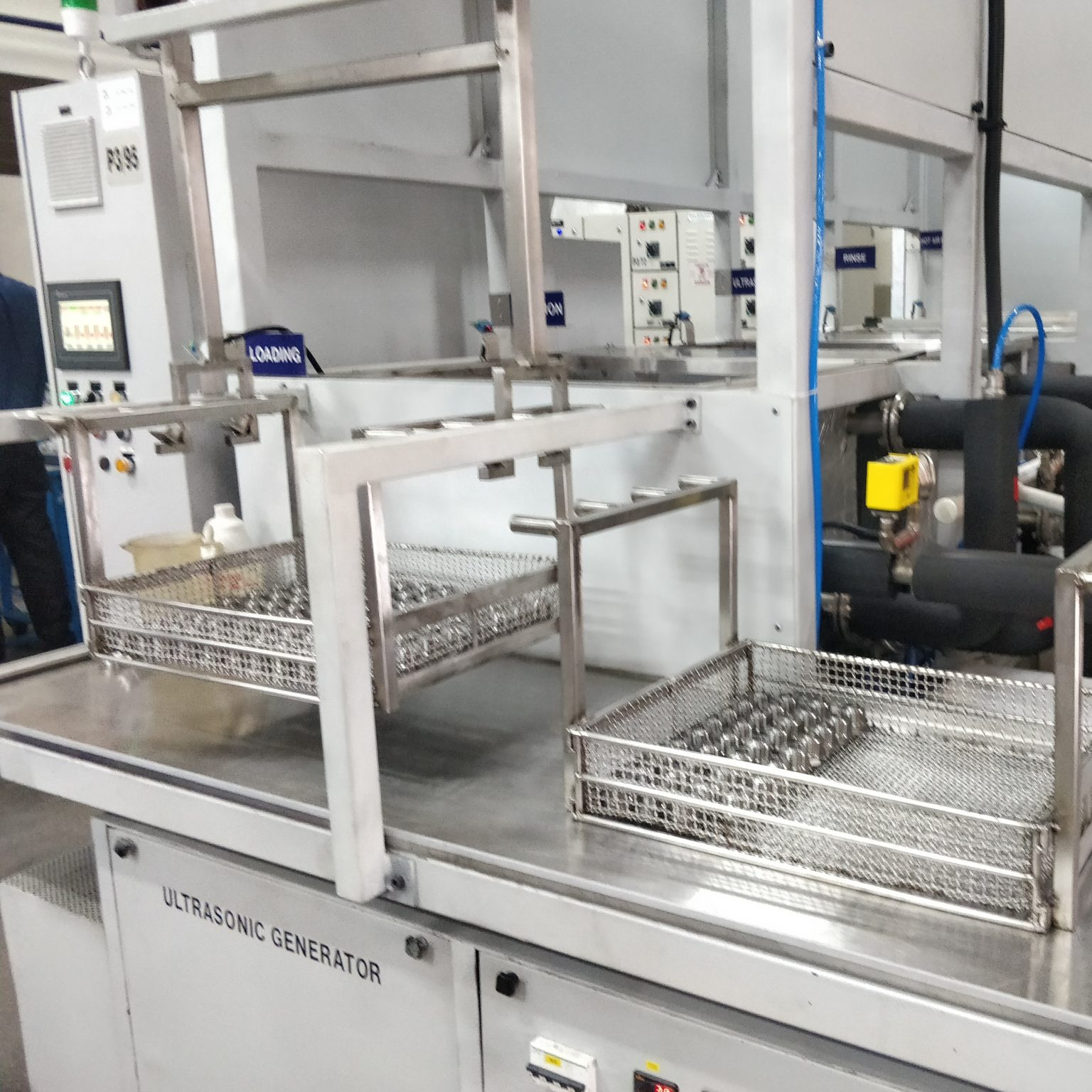

Conveyor ultrasonic & spray washer for copper fastener degreasing & metal chip cleaning
Application Area: Hardware, glass, die castings, stainless steel products
Application Area: Hardware, glass, die castings, stainless steel products
Working Process :Feeding→→Ultrasonic Rough Washing→→Ultrasonic Fine Washing→→Bubble Rinse→→Ultrasonic Rinse→
→Hot pure water ultrasonic rinse→→High pressure water gun blowing water→→Tunnel furnace drying→→Unload
Unit Size : L*W*H=11m*1.8m*1.3m
Ultrasonic cleaning tank: (4)
◆ Inner Tank size: (L X W X H): 700X700X700mm
◆ Circulating pump: use high efficiency stainless steel filter pump, flow and the strength of the head to ensure that the cleaning
solution to take away the dust
◆ cleaning fluid: water + degreasing agent
◆ Tank material: high quality SUS # 304 thickness 2.5mm stainless steel plate, the tank is inclined design
Bubble Rinse Tank: (1)
◆ Inner Tank size: (L X W X H): 700X700X700mm
◆ Bubble system: 304 stainless steel inflatable tube, the gas source for the Guichang to provide compressed air,
◆ cleaning tank: SUS # 3042.5mm stainless steel production, the tank for the tilt design
◆ cycle filter: a step-by-step filtration system, the use of high and low liquid level for overflow and precipitation filter
◆ cleaning fluid: pure water + a small amount of degreasing agent
◆ Tank material: high quality SUS # 304 2.5mm stainless steel plate production
Tunnel drying furnace (1)
◆ liner size: 6000X700X700mm (L X W X H)
◆ heating: the use of electric heating tube attached to insulation, to minimize heat loss.
◆ Imported digital thermostat, room temperature ~ 130. C is adjustable.
◆ heating power: 36KW
