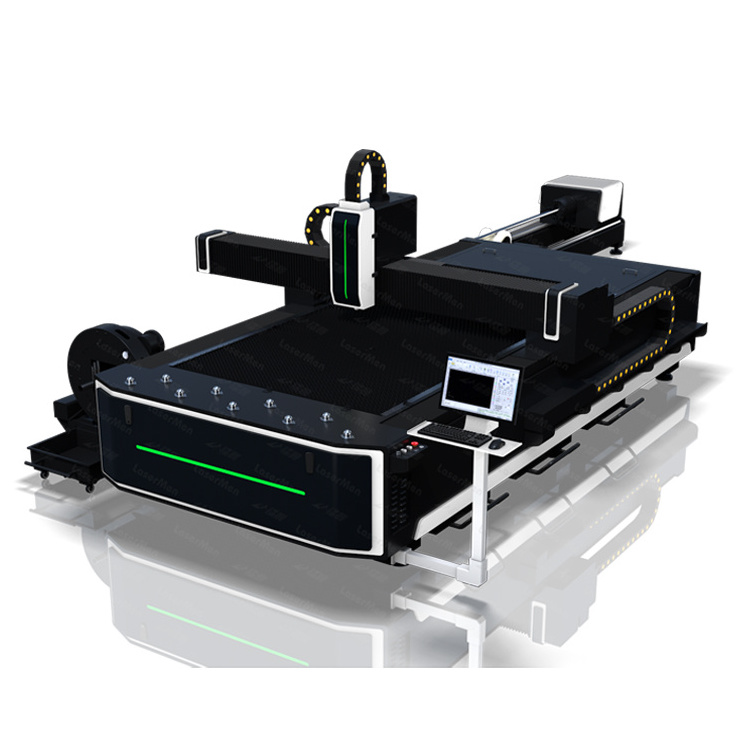

1000w 3000w 5000w 6000w cut square pipe laser cutting machines automatic metal sheet tube fiber laser cutting machine equipment

1000w 3000w 5000w 6000w cut square pipe laser cutting machines automatic metal sheet tube fiber laser cutting machine equipment

FOB Reference Price: Get Latest Price

≥1 Sets

US $34200

≥5 Sets

US $32500

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Control System Brand:: FSCUT

Cutting Area:: 1500*3000mm

Cutting Thickness:: Materials

Control Software:: Cypcut

Place of Origin:: Shandong, China

Brand Name:: LaserMen

Weight (KG):: 5000 KG

Product name:: LM-1530AFT plate abd tube fiber laser cutting machine

Laser type:: Fiber laser, 1080nm

Laser cutting head:: RayTools

Controller:: FSCUT

Cooling system:: Industrial water chiller

Transmission system:: Precision dual gear rack transmission

Driving system:: Servo motors

Lubrication system:: Auto lubrication

Laser power:: 1000W / 1500W / 2000W / 3000w

Keyword:: Plate and tube fiber laser cutting machine

Quick Details

Laser Type:: Fiber Laser

Cutting Speed:: ≤90m/min

Cooling Mode:: WATER COOLING

Control System Brand:: FSCUT

Cutting Area:: 1500*3000mm

Cutting Thickness:: Materials

Control Software:: Cypcut

Place of Origin:: Shandong, China

Brand Name:: LaserMen

Weight (KG):: 5000 KG

Product name:: LM-1530AFT plate abd tube fiber laser cutting machine

Laser type:: Fiber laser, 1080nm

Laser cutting head:: RayTools

Controller:: FSCUT

Cooling system:: Industrial water chiller

Transmission system:: Precision dual gear rack transmission

Driving system:: Servo motors

Lubrication system:: Auto lubrication

Laser power:: 1000W / 1500W / 2000W / 3000w

Keyword:: Plate and tube fiber laser cutting machine

1000w 3000w 5000w 6000w cut square pipe laser cutting machines automatic metal sheet tube fiber laser cutting machine equipment

Product Description

Jinan LaserMen CNC Equipment CO., Ltd.
1. Own factory, welcome to visit our factory

2. All laser cutting machine: 3 years warranty

3. Our Services: 24x7 hour

*Support customization

Please contact us for other customization requirements

1. Working area you can choose 3015+3m, 3015+6m

2. Fiber laser power : 1000W, 1500W, 2000W, 3000W etc.

3. Fiber laser generator brand :RAYCUS, RECI, MAX, JPT, IPG, BWT etc.

4. Laser cutting head you can choose Raytools/wsx ect.

5. Logo,color and others support customization

Model	LM-1530AFT plate and tube fiber laser cutting machine
Working area	3000*1500mm
Miximum length of pipe(Options)	3000mm(or)6000mm
Tube diameter	Round tube:Φ20mm~Φ120mm; Square tube :Φ20mm~80mm;
Laser type	Fiber laser generator
Laser power	1000W / 1500W / 2000W / 3000w
Transmission type	Servo motor, gantry, rack
Max. Cutting speed	90m/min
Chuck diameter	220mm
Min Line width	0.1mm
Positioning accuracy	0.01mm
Cutting thickness	Depending on laser power and material
Assisting gas	Compressed air, oxygen and nitrogen
Cooling mode	Industrial circulation water chiller

Product Display

Detailed Images

*Gantry

Aerospace grade aluminum light quality, high speed and high rigidity.

*Machine frame

To optimize the design of the welding lathe bed.

Lathe bed in the middle of reinforcing bar, improves the lathe bed stability.

*Fiber laser source

LaserMen Laser cooperation with Raycus RECI IPG MAX BWT with strict quality testing of every fiber source.

Double stricts selection is trustworthy.

*Cutting head

Double-layer protection design greatly enhances the user’s experience in replacing protective lenses. The risk of contamination of the lenses is almost zero.

*Control system

A set of low-cost laser cutting solutions cut from the medium power laser cutting system.

*Motor and driver

High accuracy, low noise, stable performance

*Pneumatic chuck

Max diameter 220mm for round tube

*Tube placement area

Support square tube and round tube

*Rotary length

3m or 6m can be customization

*Water chiller

S&A or hanli water chiller

Product quality inspection

Samples

Application Materials: Fiber Laser Cutting Equipment is suitable for metal cutting like Stainless Steel Sheet, Mild Steel Plate, Carbon Steel Sheet, Alloy Steel Plate, Spring steel Sheet, Iron Plate, Galvanized Iron, Galvanized Sheet, Aluminum Plate, Copper Sheet, Brass Sheet, Bronze Plate, Gold Plate, Silver Plate, Titanium Plate, Metal Sheet ect.

Application Industries:

CNC Fiber Laser Cutting Machines are widely used in manufacture Billboard, Signs, Advertising, Signage, Metal Letters, LED Letters, Kitchen Ware, Advertising Letters, Sheet Metal Processing, Metals Components and Parts, Ironware, Chassis, Racks & Cabinets Processing, Metal crafts, metal art ware, elevator panel cutting, hardware, auto parts, Glasses Frame, Electronic Parts, Nameplates, etc.
