Quick Details
-
Model Number:
-
GRS-6044
-
Name:
-
4 SAT-IF Satellite Optical Receiver
-
Operating bandwidth:
-
950~5950MHz
-
Receiver power:
-
-15dBm
-
Optical return loss:
-
40~60dB
-
Output level:
-
-65~-25dBm
-
Output return loss:
-
10dB
-
Certification:
-
CE, CE
-
Gain range:
-
-1.0~36dBm
-
Integrated phase noise:
-
4.0dB
-
RF number of connector:
-
4
Quick Details
-
Type:
-
Digital
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
guangtai
-
Model Number:
-
GRS-6044
-
Name:
-
4 SAT-IF Satellite Optical Receiver
-
Operating bandwidth:
-
950~5950MHz
-
Receiver power:
-
-15dBm
-
Optical return loss:
-
40~60dB
-
Output level:
-
-65~-25dBm
-
Output return loss:
-
10dB
-
Certification:
-
CE, CE
-
Gain range:
-
-1.0~36dBm
-
Integrated phase noise:
-
4.0dB
-
RF number of connector:
-
4
Products Description

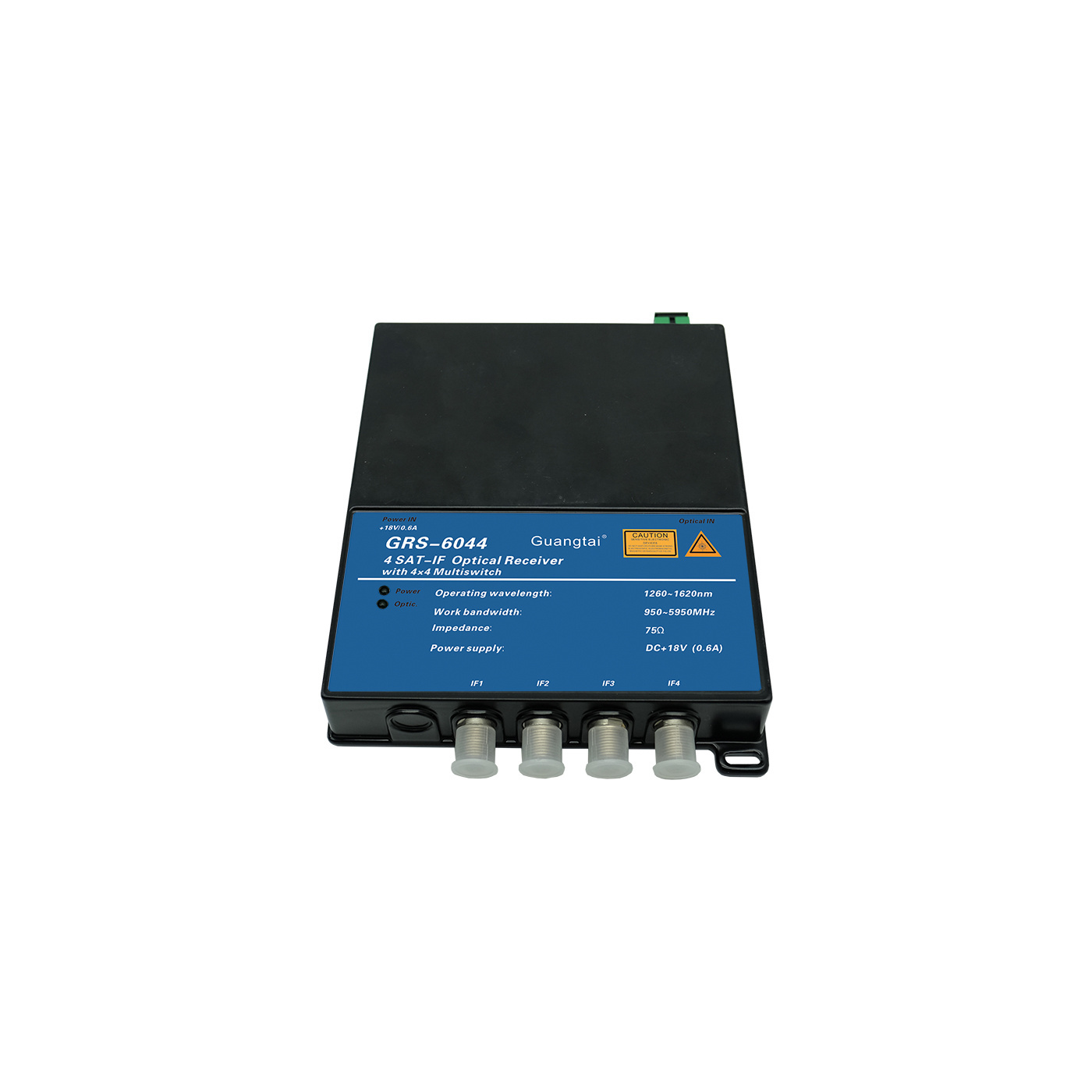

GRS-6044, a kind of 4-band SAT -IF O/E converter, which makes the superposed 4 ways SAT-IF signals in the band 950~5950MHz that transmitted by optic signal cleavage overlay and revert to standard VH,VL, HH, HL 4 ways SAT if signal (SAT-IF), and then pass by the built-in 4 * 4 satellite switch to output 4 way full-channel direct broadcasting satellite TV, and then serve for users.
GRS-6044/WD, GRS-6044/WF, can be compatible with any FTTx PON, to realize internet, Full-Band SAT-TV & CATV Triple-ply network and FTTH
GRS-6044 the forepart of the satellite antenna adopt satellite channel overlay LNB, such as TOL32, TWL01.
Product Features
1.
Adopt one fiber to transmit 4 ways polarization SAT-IF signal well
2. GRS-6044 (built-in 4*4 satellite switch)
Main Application
1. FTTH for DBS
2. Triple-play Overlay DVB-S
3. 4 SAT - IF overlay/ cleavage overlay optical fiber links
Technical Index
|
Performance
|
|
|
Index
|
|
|
Supplement
|
||||
|
|
|
|
Min.
|
Typ.
|
Max.
|
|
||||
|
Optic feature
|
|
(nm)
|
1260
|
|
1620
|
GRS-6044
|
||||
|
|
|
|
1540
|
|
1563
|
GRS-6044/WF, GRS-6044/WD
|
||||
|
|
Pass wavelength
|
(nm)
|
1310/1490
|
|
|
GRS-6044/WD
|
||||
|
|
Channel isolation
|
(dB)
|
40
|
|
|
|
||||
|
|
|
(A/W)
|
0.85
|
|
|
1310nm
|
||||
|
|
|
|
0.9
|
|
|
1550nm
|
||||
|
|
Receiver power
|
(dBm)
|
-15
|
|
|
|
||||
|
|
|
(dB)
|
40
|
45
|
|
FC/PC, SC/PC
|
||||
|
|
|
|
55
|
60
|
|
FC/APC, SC/APC
|
||||
|
|
Optical fiber connector
|
|
SC/APC
|
|
|
Optional FC/APC,SC/PC, FC/PC
|
||||
|
Frequency feature
|
|
(MHz)
|
950
|
|
1950
|
VL
|
||||
|
|
|
|
1100
|
|
2150
|
VH
|
||||
|
|
|
|
950
|
|
1950
|
HL
|
||||
|
|
|
|
1100
|
|
2150
|
HH
|
||||
|
|
|
|
13V+0Hz
|
|
|
VL
|
||||
|
|
|
|
13V+22KHz
|
|
|
VH
|
||||
|
|
|
|
18V+0Hz
|
|
|
HL
|
||||
|
|
|
|
18V+22KHz
|
|
|
HH
|
||||
|
|
Gain ripple across band
|
(dB)
|
-3.0
|
|
+3.0
|
|
||||
|
|
Gain ripple across 40MHz
|
(dB)
|
-0.5
|
|
+0.5
|
|
||||
|
|
Channel isolation
|
(dB)
|
|
30
|
|
|
||||
|
|
In band spurious power
|
(dB)
|
-25
|
|
|
|
||||
|
|
Out band spurious power
|
(dB)
|
|
|
-60
|
|
||||
|
|
Gain range
|
(dB)
|
-1.0
|
|
36
|
|
||||
|
|
Output level
|
(dBm)
|
-65
|
|
-25
|
|
||||
|
|
Integrated phase noise
|
(dB)
|
|
4.0
|
|
1KHz~13KHz
|
||||
|
|
OIP3
|
(dB)
|
+10
|
|
|
|
||||
|
|
Output isolation
|
(dB)
|
|
25
|
|
4×4 Satellite Switch
|
||||
|
|
Output return loss
|
(dB)
|
|
10
|
|
|
||||
|
|
Output impedance
|
(Ω)
|
|
75
|
|
|
||||
|
|
RF number of connector output
|
|
|
4
|
|
|
||||
|
|
RF connector
|
|
F-Female
|
|
|
|
||||
|
General feature
|
Power supply (DC)
|
(V)
|
|
+18
|
|
|
||||
|
|
Power consume
|
(mA)
|
|
|
300
|
|
||||
|
|
External power supply input voltage
|
(V)
|
90
|
|
265
|
|
||||
|
|
Operating temp.
|
(°C)
|
-30
|
|
+60
|
|
||||
|
|
Storage temp.
|
(°C)
|
-40
|
|
+70
|
|
||||
|
|
Size
|
(mm)
|
143×167×27
|
|
|
(W)x(D)x(H)
|
||||
FAQ
1. What are the payment terms of payment?
Usually, we accept T/T, PayPal, Western Union, and Alibaba Trade Assurance. You can select the terms of payment which is more convenient for you.
2. What about the lead time?
Usually, if there's stock, we ship the goods within 5-7 working days after the deposit is confirmed. If it is out of stock, the lead time depends.
3. How about the shipping?
When the package is small, we will deliver the goods via international Express like FedEx , DHL,TNT and UPS and so on. Door to door delivery service will be provided; while the goods have high weight and volume, we suggest using air or sea shipment.
4. Can you do OEM for us?
Yes. if there is a certain order quantity, we can do OEM including printing, logo, and customized model for you.
5. What are the advantages of your products?
A. Good quality and competitive prices
B. Strict quality control during production process.
C. Professional operations in processes of production, sales, assembling, packaging and shipping
D. Good after-sale service. Professional online technical support can be provided. Moreover, if there is any problem of the goods, we will help to solve the problem or provide replacement of the goods
6. How about the Warranty?
There are 12 months for the warranty. While the warranty is not responsible for those broken by violence or updated with other brands.
