- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
Daier
-
Model Number:
-
ASW-B05
-
Car Make:
-
Car
-
Size:
-
Standard Size
-
Product type:
-
Auto Switch
-
Max. Current:
-
20A
-
Max. Voltage:
-
12VDC
-
Switch Function:
-
OFF-(ON)
-
Housing Color:
-
Sliver
-
Contact Resistance:
-
50mΩ max
-
Operating Temperature:
-
-25℃~+85℃
-
Mechanical Life:
-
>10000 Cycles
-
Certificate:
-
CE,CQC,TUV
Quick Details
-
OE NO.:
-
automotive push button switches
-
Warranty:
-
1 Years
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Daier
-
Model Number:
-
ASW-B05
-
Car Make:
-
Car
-
Size:
-
Standard Size
-
Product type:
-
Auto Switch
-
Max. Current:
-
20A
-
Max. Voltage:
-
12VDC
-
Switch Function:
-
OFF-(ON)
-
Housing Color:
-
Sliver
-
Contact Resistance:
-
50mΩ max
-
Operating Temperature:
-
-25℃~+85℃
-
Mechanical Life:
-
>10000 Cycles
-
Certificate:
-
CE,CQC,TUV

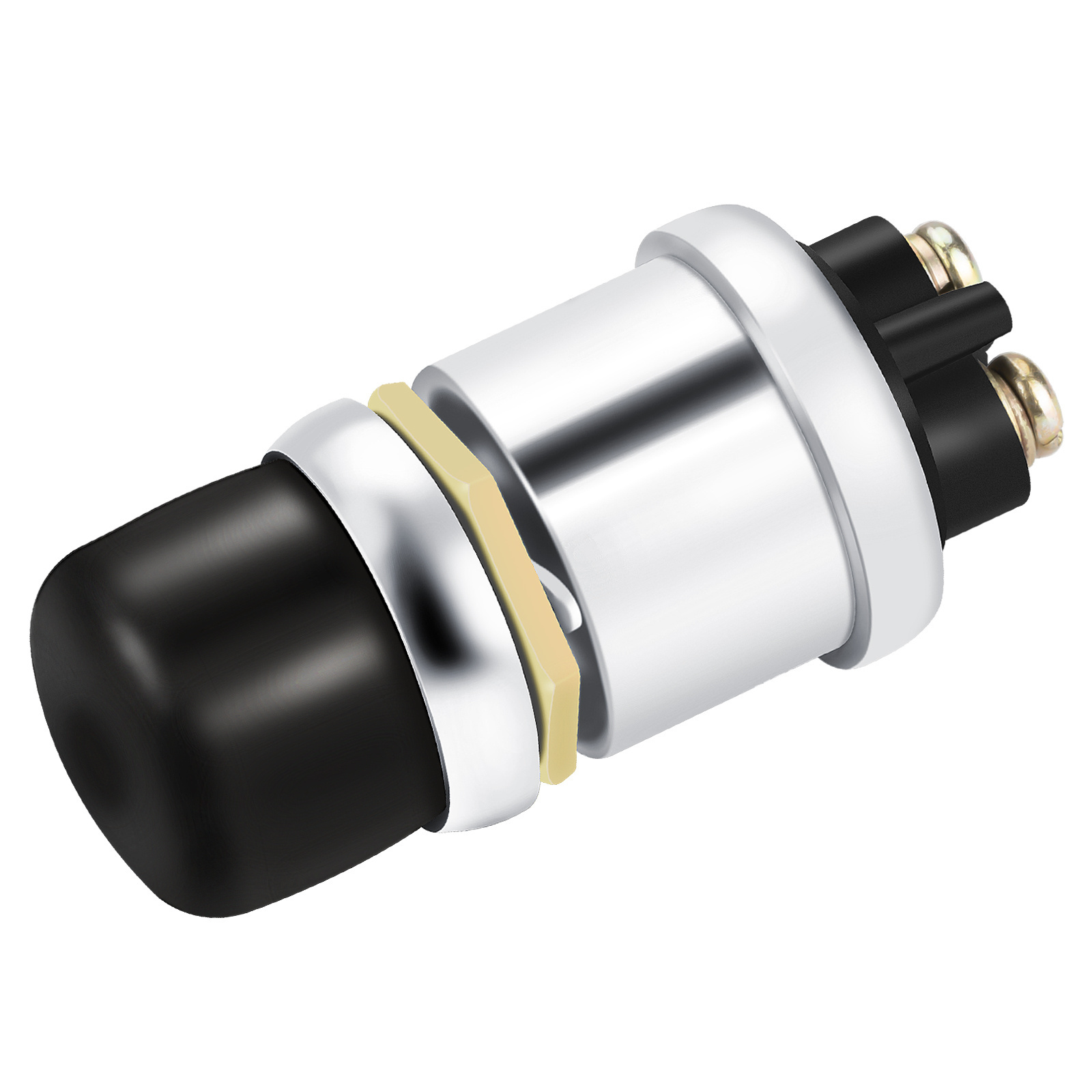

* 1.Feature: This push start button is momentary SPST design. The momentary push button switch with a black neoprene cover can prevent the switches from moisture and dirt.
* 2.Size: The height of the starter switch is 2.44 inch(without cover), the diameter of the switch is 1.1 inch. The reqiured
mounting hole of the horn button switch is 5/8 inch(0.625 inch).
* 3.Voltage: The rating of this waterproof engine start button is 20A 12V.
* 4.Function: The switch will normally remain at the off position; when pressing the button, the switch will be turned to on
position; after releasing the button, the switch will return to the off position.
* 5.Application: the push button widely used as the horn or ignition switch for truck, golf cart, jeep, lawn tractor, marine,
boat, etc.
* 2.Size: The height of the starter switch is 2.44 inch(without cover), the diameter of the switch is 1.1 inch. The reqiured
mounting hole of the horn button switch is 5/8 inch(0.625 inch).
* 3.Voltage: The rating of this waterproof engine start button is 20A 12V.
* 4.Function: The switch will normally remain at the off position; when pressing the button, the switch will be turned to on
position; after releasing the button, the switch will return to the off position.
* 5.Application: the push button widely used as the horn or ignition switch for truck, golf cart, jeep, lawn tractor, marine,
boat, etc.
|
Product Name
|
DaierTek Push Button Starter Switch 12V Push Start Button Momentary Engine Start Switch 12 Volt Horn Button for Marine Boat Truck Track Lawn Tractor
|
|
|
||
|
Rating
|
20A 12VDC
|
|
|
||
|
Switch Function
|
OFF-(ON)
car automotive push button switches starter
|
|
|
||
|
Operating Temperature
|
-25℃~+85℃
|
|
|
||
|
Housing color
|
Sliver
|
|
|
||
|
Mounting hole diameter
|
16 MM
|
|
|
||
Momentary Push Start Switch
Momentary Push Start Button Function: Push ON, Release OFF. SPST(Single Pole Single Throw) 2 pin Normal Open.
5/8 Inch Mounting Hole
The engine start button requires 5/8'' (0.625'') mounting hole. The height of the starter switch is 2.44 inch(without cover) and the diameter is 1.1 inch.
Waterproof Push Button Switch
The marine horn button come with a black neoprene cover for preventing the switches from moisture and dirt.
