Quick Details
-
Brand Name:
-
Easty
-
Weight:
-
100 KG
-
Dimension(L*W*H):
-
290*55*80cm
-
Product name:
-
Easty RS Roll Slitter
-
Name:
-
roll slitter
-
Keyword:
-
roll slitting machine
Quick Details
-
Voltage:
-
220V
-
Power:
-
2180W
-
Place of Origin:
-
China
-
Brand Name:
-
Easty
-
Weight:
-
100 KG
-
Dimension(L*W*H):
-
290*55*80cm
-
Product name:
-
Easty RS Roll Slitter
-
Name:
-
roll slitter
-
Keyword:
-
roll slitting machine

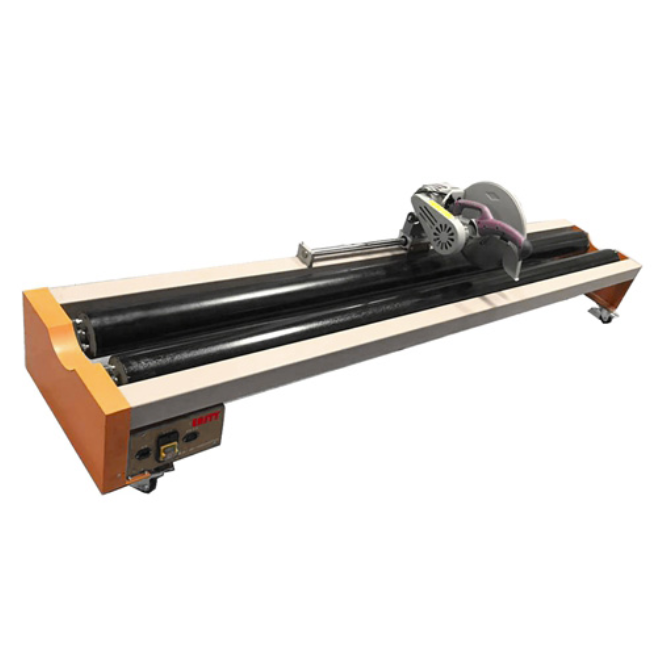

A s fully functional model, RS series offer a competitive slitting solution. New design use double supporting shafts instead of inner fixing system, which make cutting regardless of width possible. To fit large rolls and better cutting, motor is equipped on blade.
APPLICATION
* Banner / flex / mesh / tarpaulin
* Re flective / sheeting / self-adhesive vinyl
* Foam adhesive tape / double-sides adhesive tape / application tape
FEATURES
* Material lay-down design makes it easier to load material (especially heavy rolls)
* Foot switch control when cutting,
easy control
* Equipped with gear blade for PVC material
* Double supporting shafts rotate, greatly reduce machine cost
* Blade is equipped with motor for stronger power
* Suitable for wide ranges of diameter core regardless the length
* Position of blade can be set manually
* Smooth cutting edge and accuracy within 3mm
SPECIFICATIONS
|
Easty Roll Slitter |
RS-280 |
|
Rated Input Power |
2180W |
|
Voltage / Frequency |
Single phase 220V / 110V, 50Hz |
|
Max. Speed |
Up to 3800 r/min |
|
Max. Loading weight |
700 Kgs (1543 lb) |
|
Diameter of Blade |
355mm (13.98”) |
|
Max. Cutting Diameter |
600mm (23.62”) |
|
Packing Size (Wooden Crate) |
2900 * 550 * 800 mm (114.17” x 21.65” x 31.50”) |
*Parts are eligible for 12 months warranty under proper use (starting from EXW-factory time, not including consumable blades)
