Quick Details
-
Table Size:
-
0.90*0.8m
-
Weight:
-
1350 kg
-
Product name:
-
Articulating Boom Lift Man Lift Aerial Work Platform
-
Color:
-
Customers' Requirements
-
Usage:
-
Lift Workers
-
Max Working Height:
-
12m
-
Max Platform Height:
-
10m
-
Max Working Radius:
-
4.5m
-
Platform Dimensions (L*W):
-
0.90*0.8m
-
Machine Weight:
-
1350kg
-
Load Capacity:
-
200kg
-
LFP Battery:
-
24V/250Ah
Quick Details
-
Warranty:
-
2 years
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
SWLLIFT
-
Table Size:
-
0.90*0.8m
-
Weight:
-
1350 kg
-
Product name:
-
Articulating Boom Lift Man Lift Aerial Work Platform
-
Color:
-
Customers' Requirements
-
Usage:
-
Lift Workers
-
Max Working Height:
-
12m
-
Max Platform Height:
-
10m
-
Max Working Radius:
-
4.5m
-
Platform Dimensions (L*W):
-
0.90*0.8m
-
Machine Weight:
-
1350kg
-
Load Capacity:
-
200kg
-
LFP Battery:
-
24V/250Ah
Product Description

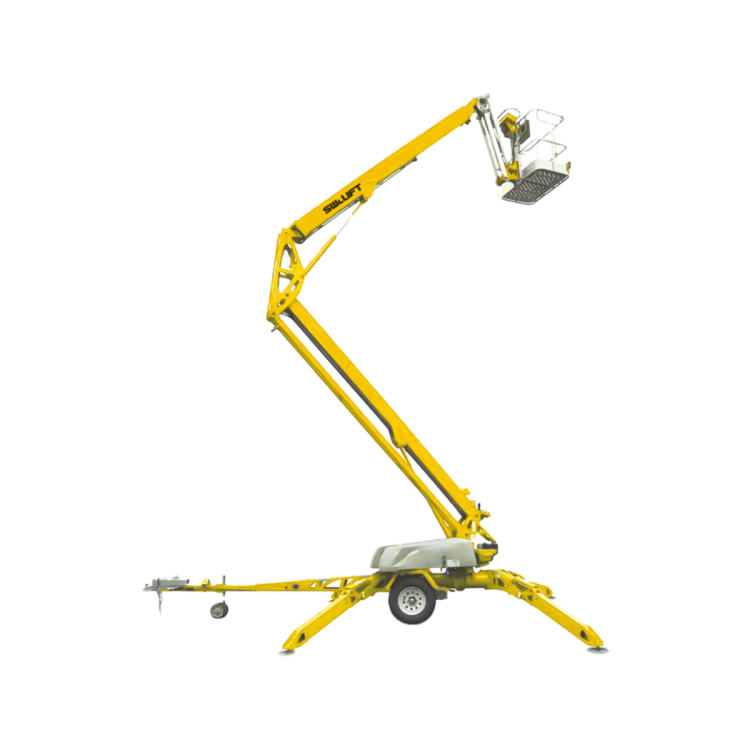

Towable Boom Lifts :
The tractor-arm aerial work platform is a piece of equipment used for high-altitude operations. It lifts the working platform to the required height through the telescoping and rotation of the traction arm, providing a safe and stable working environment for operators. This kind of platform usually has a large working range and load-bearing capacity, and can adapt to operating needs at different heights and angles. The operator can lift, telescope and rotate the platform through the control system to achieve the desired position and angle.
The boom of the trailer folding arm lift has a compact structure and is made of new high-quality steel. It is high in strength and light in weight. It is diesel-driven or battery-driven. It is equipped with automatic hydraulic support feet and is easy to operate. The workbench can be raised and extended horizontally, making it easy to reach the work across obstacles. location, ideal for aerial work equipment.
Flexibility:
The tractor-arm aerial work platform has a large working range and flexible maneuverability.
Advantages:
Efficiency:
The design of the tractor-arm aerial work platform makes lifting and telescopic functions fast and smooth, improving operating efficiency.
Safety:
The tractor-arm aerial work platform is equipped with a variety of safety devices to ensure the safety of operators.
Product Paramenters
|
Model
|
|
T10Li
|
|
|
|||
|
Max Working Height
|
|
12m
|
|
|
|||
|
Max Platform Height
|
|
10m
|
|
|
|||
|
Platform Dimension (L*W)
|
|
0.90×0.8m
|
|
|
|||
|
Max Working Radius
|
|
4.5m
|
|
|
|||
|
Machine Weight
|
|
1350kg
|
|
|
|||
|
Max Load Capacity
|
|
200kg
|
|
|
|||
|
LFP Battery
|
|
3.5km/h
|
|
|
|||
|
Driving Speed (Raised)
|
|
0.8km/h
|
|
|
|||
|
Battery Power
|
|
24V/250Ah
|
|
|
|||
|
Pump Motor Power
|
|
4.5kw
|
|
|
|||
|
Insulated Platform
|
|
500KV
|
|
|
|||
