Quick Details
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
HOPEWELL
-
Dimension(L*W*H):
-
customized
-
Weight (KG):
-
300 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Free spare parts, Video technical support, Online support
-
Application:
-
Marine
-
Cooling capacity:
-
360000BTU
-
Power sourse:
-
380V 50HZ
-
Name:
-
marine water chiller
-
Refrigerant:
-
R407C/R410A
-
Color:
-
White+Black
-
Heating capacity:
-
438000BTU
-
Weight:
-
600KG
-
SEA FLOW:
-
25M3/H
Quick Details
-
Type:
-
Chiller
-
Mounting:
-
Floor Standing
-
Airflow:
-
5000m³/h
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
HOPEWELL
-
Dimension(L*W*H):
-
customized
-
Weight (KG):
-
300 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Free spare parts, Video technical support, Online support
-
Application:
-
Marine
-
Cooling capacity:
-
360000BTU
-
Power sourse:
-
380V 50HZ
-
Name:
-
marine water chiller
-
Refrigerant:
-
R407C/R410A
-
Color:
-
White+Black
-
Heating capacity:
-
438000BTU
-
Weight:
-
600KG
-
SEA FLOW:
-
25M3/H

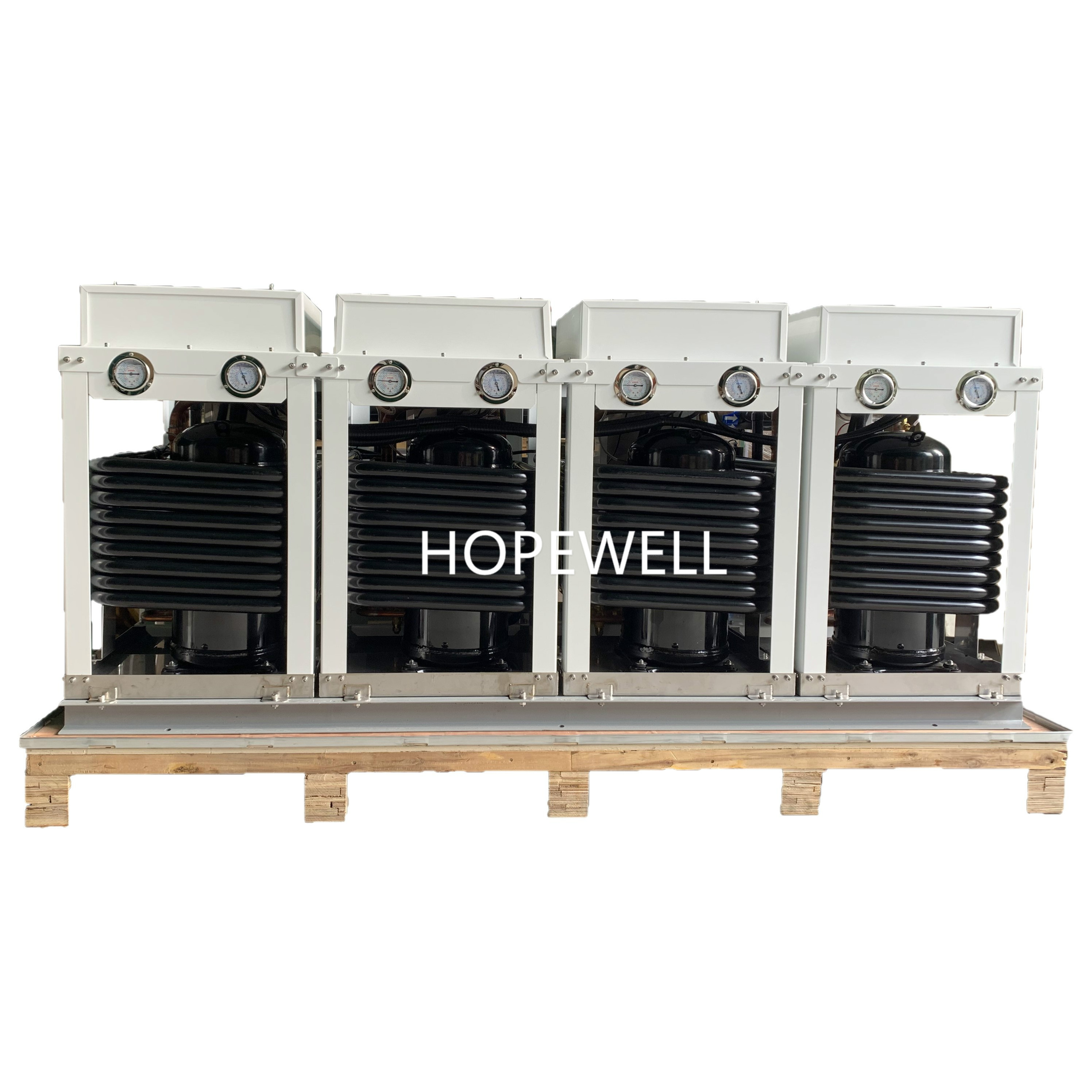

Marine Chilled Water Systems MHW SERIES
Marine MHW Series chilled water systems are flexible for installation. They are of high efficiency, reliability, and easy for maintenance.
Each chiller can be built up of 1-6 units. The capacity of each unit is 36,000-120,000Btu/h. Several units can be combined at random to achieve the total capacity of heating/cooling. They can be installed into one casing, which contain the main outlet/inlet of the seawater and circulating water, and can be installed separately to save the cabin space and the installation space of A/C.
Marine chiller can output the chilled water of 7℃ in cooling mode, and output 45℃ the hot water of 45℃ in heating mode. When the temperature of seawater is above 3.5℃, the chiller can operate efficiently under the heating mode. And in most situation heating pumps eliminate the requirement of fuel or electric heating.
All units have protective equipments inside, including: high/low pressure switches, circulating water flow switches, and the circulating water chilling transducer. The signal cable and compressor control cable are all led to the terminal box of the unit, which contains waterproof cable outlet.
Features:
1. 36,000-980,000Btu/h
2. Available in220V/50HZ/1Ph , 220V/60HZ/1Ph 380V/50HZ/3Ph,460V/60HZ/3PH
3. R22, R407c, R410a refrigerant gas optional
4. Compact structure, modular assembly to facilitate maintenance, save energy and improve service efficiency
5. Microcomputer control: stable and reliable, fast and convenient
6. High efficiency scroll compressors used, which is reliable, high efficiency and energy saving
7. Built-in three-way valve
8. Entirety framework to facilitate the installation of pipelines
9. Stainless steel, copper brazed plate heat exchangers
10. Equipped with safety device
11. vibration prevention measures to meet the requirements of marine equipment
12. C opper encased cupronickel condenser coils are highly resistant to corrosion from continuous seawater flow.
Specification sheet:
