RF Feeder cable heliax leaky cable 1/2'' 3/8" 5/8" 7/8" Superflexible Foam PE 50ohm RF corrugated coaxial cable

FOB Reference Price: Get Latest Price

≥3000 Meters

US $0.25

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Guangdong, China

Conductor:: Copper

Inner conductor material:: Aluminum clad copper wire

Shield:: Corrugated Bare Copper Tube

Insulation material:: Foamed polyethylene

Outer conductor:: 9.5mm

Jacket:: PVC PE

Application:: Telecom

Certification:: CE/ROHS/ISO9001/ANATEL

Brand name:: SURELINK

Quick Details

Brand Name:: SURELINK

Model Number:: Feeder cable

Type:: coaxial cable, Coaxial cable

Place of Origin:: Guangdong, China

Conductor:: Copper

Inner conductor material:: Aluminum clad copper wire

Shield:: Corrugated Bare Copper Tube

Insulation material:: Foamed polyethylene

Outer conductor:: 9.5mm

Jacket:: PVC PE

Application:: Telecom

Certification:: CE/ROHS/ISO9001/ANATEL

Brand name:: SURELINK

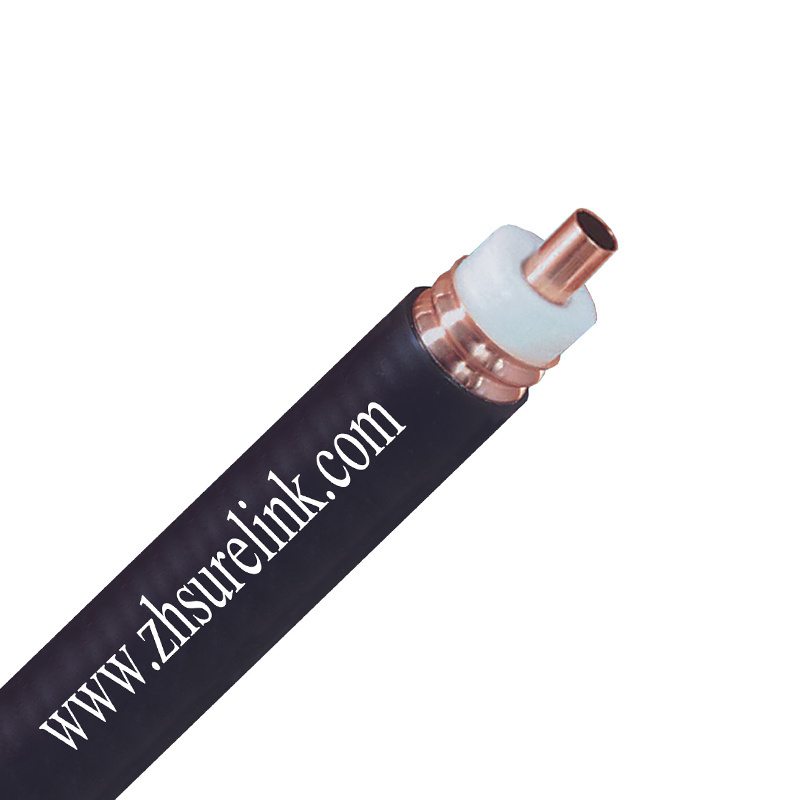

SURELINK RF Feeder cable heliax leaky cable 1/2'' 3/8" 5/8" 7/8" Superflexible Foam PE 50ohm RF corrugated coaxial cable

Product Description

Mechanical Characteristics

Item	Specification	Remarks
Dynamic minimum bending radius	95mm	Repeated 15 times
Static minimum bending radius	40mm	Single bend
Tensile strength	800N
Cable weight	130kg/km

Electrical Characteristics

Item	Specification	Remarks
Characteristic Impedance	50±1 ohm
Velocity	88%
Minimum Insulation resistance	5000 Mohm.km	DC 500V/minute
Capacitance	76pF/m
Dielectric strength	2500V
Peak power rating	15.6kW
RF peak voltage	1050V
VSHR typical value	1.15	10M~3000MHz
	1.10	800M~1000MHz
	1.10	1700M~2000MHz
	1.10	2100M~2400MHz

Attenuation & Average power rating

Frequency Mhz	Attenuation (dB/100m)	Average power (kw)	Frequency Mhz	Attenuation (dB/100m)	Average power (kw)
10	1.05	7.07	1800	15.35	0.46
100	3.41	2.12	1900	15.76	0.44
150	4.20	1.72	2000	16.26	0.43
200	4.89	1.52	2100	16.67	0.42
300	6.04	1.21	2200	16.87	0.41
450	7.49	1.01	2400	17.88	0.39
500	7.92	0.91	2500	18.28	0.39
700	9.49	0.77	2700	19.09	0.37
800	10.20	0.71	3000	21.31	0.34
900	10.91	0.67	4000	23.63	0.30
1000	11.21	0.64	5000	26.77	0.26
1500	13.94	0.52	6000	29.59	0.24
1700	14.85	0.47	8000	34.85	0.20

Technical Data

Type	Impedance	Diameter of Conductor		Jacket		Weight
Type	(Ohms)	Inner(mm)	Outer(mm)	Thickness(mm)	Diameter(mm)	(kg/km)
1-5/8"	50	17.30	46.50	1.75	50.00	1310
1-1/4"	50	13.10	35.80	1.80	39.40	980
7/8"	50	9.05	24.90	1.30	27.50	530
5/8"	50	7.05	19.80	1.20	22.20	400
1/2"	50	4.80	13.80	1.00	15.80	240
3/8"	50	3.15	9.53	0.85	11.20	135
7/8"S	50	9.42	24.90	1.05	27.50	430
1/2"S	50	3.60	12.20	0.70	13.20	120
1/4"S	50	1.01	6.40	0.60	7.40	80
