Quick Details
-
Brand Name:
-
LINO
-
Model Number:
-
LNS
-
Max. Current:
-
5mA
-
Max. Working Pressure:
-
100MPa
-
Name:
-
water pump hydraulic adjustable pressure switch
-
Pressure range:
-
-0.1~0~100MPa
-
Accuracy:
-
≤±0.5%FS
-
Display:
-
4 digits LED
-
Stability:
-
≤0.2% /year
-
Temperature drift:
-
±0.02FS/℃
-
Dispaly range:
-
-1999~9999
-
Power supply:
-
24V±20%
-
Switch type:
-
PNP/NPN
-
Protection:
-
IP65
Quick Details
-
Whether the smart:
-
Yes
-
Max. Voltage:
-
24V
-
Place of Origin:
-
Shaanxi, China
-
Brand Name:
-
LINO
-
Model Number:
-
LNS
-
Max. Current:
-
5mA
-
Max. Working Pressure:
-
100MPa
-
Name:
-
water pump hydraulic adjustable pressure switch
-
Pressure range:
-
-0.1~0~100MPa
-
Accuracy:
-
≤±0.5%FS
-
Display:
-
4 digits LED
-
Stability:
-
≤0.2% /year
-
Temperature drift:
-
±0.02FS/℃
-
Dispaly range:
-
-1999~9999
-
Power supply:
-
24V±20%
-
Switch type:
-
PNP/NPN
-
Protection:
-
IP65
Product Description

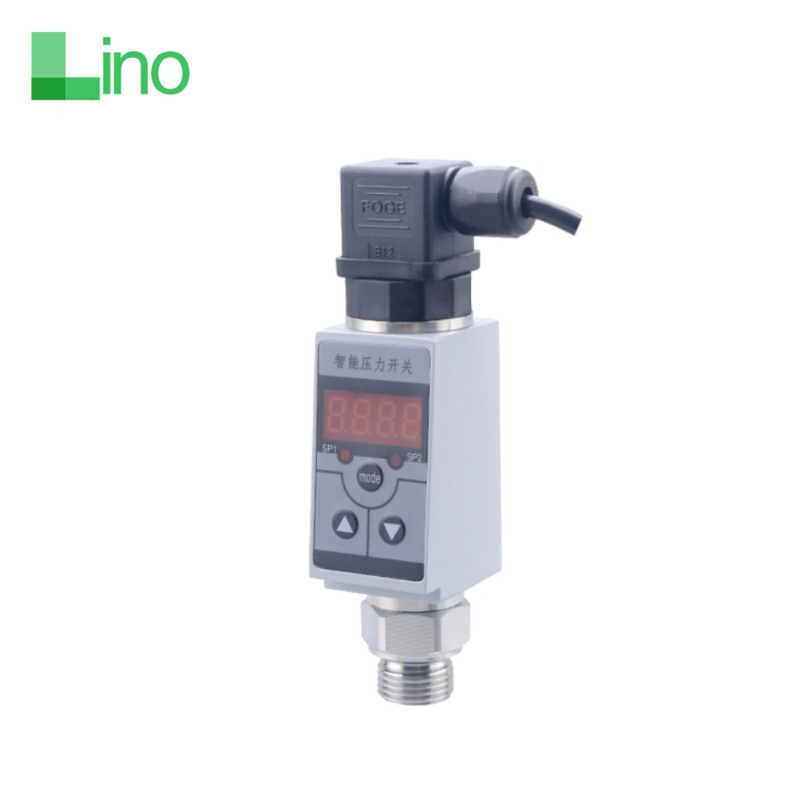

Description of LINO LED/LCD automatic pressure control switch for water pump hydraulic adjustable pressure switch
LINO LED/LCD automatic pressure control switch for water pump hydraulic adjustable pressure switch
is a fully digital measurement and control product integrating pressure/differential pressure measurement, display, contact control and transmission output, with RS485 digital interface. It can be installed directly on the field pressure measurement point or on the control panel of the test bench. It can be used to set various parameters such as zero point value, full scale value, and contact pressure value on the spot by buttons, and can also realize network and digital signal transmission through the RS485 bus function. And transmitter parameter remote setting and adjustment. We can produce solid state relay output interfaces with single, double or multi-point control according to user requirements, and can provide 4~20mADC, 0~10mADC, 0~5VDC, 1~5VDC and other signal output modes.
It is widely used in the automatic control field of hydropower, metallurgy and chemical industries, etc., to measure and control the pressure of fluid medium.
Details Images
Specification
|
Item
|
LINO LED/LCD automatic pressure control switch for water pump hydraulic adjustable pressure switch
|
|
|
||
|
Medium
|
iquid, gas (compatible with stainless steel)
|
|
|
||
|
Material
|
Diaphragm 316s stainless steel Process connection 304 stainless steel
|
|
|
||
|
Pressure range
|
-0.1~0～5、100、500、800、1000kPa……100MPa
|
|
|
||
|
Output signal
|
4~20mADC, 0~10mADC, 0~5VDC, 1~5VDC
|
|
|
||
|
Switch output
|
NPN, PNP, relay output
|
|
|
||
|
Power supply
|
24V DC
|
|
|
||
|
Accuracy
|
0.5%FS, 0.25%FS, 0.1%FS
|
|
|
||
|
Repeatability
|
0.5%FS, 0.25%FS, 0.1%FS
|
|
|
||
|
Compensation temp
|
-10℃～70℃
|
|
|
||
|
Work temperature
|
-20～+85℃
|
|
|
||
|
Stability
|
≤0.1±%FS/ Year
|
|
|
||
|
Response time
|
＜1ms
|
|
|
||
|
Overload pressure
|
200%
|
|
|
||
|
Medium
|
Aggressive media compatible with 316L
|
|
|
||
|
Protection
|
IP5
|
|
|
||
|
Electrical connector
|
Hirschmann, lead wire, PIN avaviation
|
|
|
||
Features
Picture details
Structure
