We use high quality CNP pump as raw water pump.Requested access to the system's raw water has a stable flow and pressure, its
purpose is to prevent water fluctuations have an impact on the system operation to ensure the stability of the system into the
water.
- Product Details
- {{item.text}}
Quick Details
-
Material:
-
Wooden package with film
-
Weight:
-
Depends on capacity
-
Size:
-
Depends on capacity
-
Power:
-
0.5~5.5
-
Weight (KG):
-
200 kg
-
Application:
-
Water Purify
-
Capacity:
-
1000LPH
-
Certification:
-
CE
-
Advantage:
-
Simple Installation
-
Type:
-
Pure Water Treatment System
-
Raw material:
-
SS 304
-
Keywords:
-
Ro Water Treatment
-
Feature:
-
Eco-Friendly Easy Operation
-
Usage:
-
Drinking Water Treatment Plant
-
Product name:
-
RO-1000
Quick Details
-
Marketing Type:
-
New Product 2024
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
AK-MACHINE
-
Material:
-
Wooden package with film
-
Weight:
-
Depends on capacity
-
Size:
-
Depends on capacity
-
Power:
-
0.5~5.5
-
Weight (KG):
-
200 kg
-
Application:
-
Water Purify
-
Capacity:
-
1000LPH
-
Certification:
-
CE
-
Advantage:
-
Simple Installation
-
Type:
-
Pure Water Treatment System
-
Raw material:
-
SS 304
-
Keywords:
-
Ro Water Treatment
-
Feature:
-
Eco-Friendly Easy Operation
-
Usage:
-
Drinking Water Treatment Plant
-
Product name:
-
RO-1000
Products Description

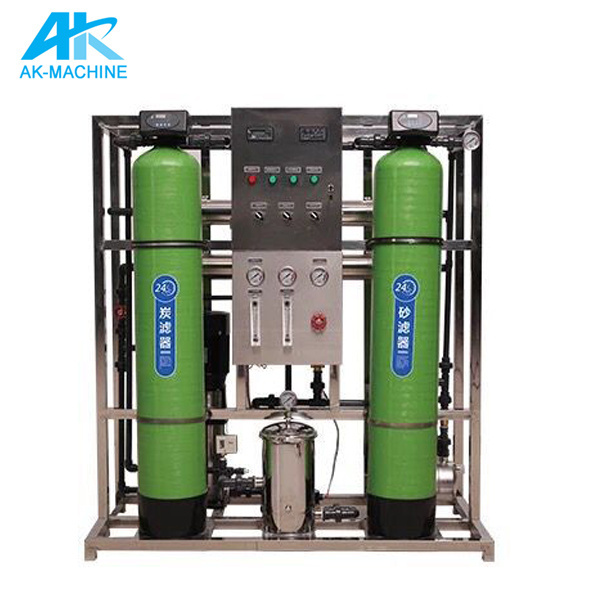

Water treatment equipment/ Mineral water plant
|
Production Capacity
|
250L-10000L per hour
|
|
TDS Of Raw Water
|
≤1000ppm（one stage）
|
|
TDS After Treatment
|
≤10ppm
|
|
Desalination Rate
|
≥97%
|
|
Process system
|
RO Reverse osmosis
|
|
RO Membrane
|
Dow, Hydranautics
|
|
Water Resourse
|
River water, well water, tap waterunderground water, rain
|
|
Application
|
drinking water, juice, soft drink, carbonated drink
|
Raw water→raw water tank → raw water booster pump→mechanical filter→activated carbon filter →precise filter →high-pressure pump→Reverse Osmosis Components→pure water tank→pure water
Details Images
Raw water pump
water softer
The sodium ion exchange softening is used to remove water calcium and magnesium ions , preparation of demineralized water of ion
exchange . The composition of the water hardness , calcium, magnesium , and softening in the ion exchange resin to exchange the
water calcium and magnesium ions by sodium ion exchange , so that the water is not easy to form carbonate scale and sulfate scale
, resulting in softened water
exchange . The composition of the water hardness , calcium, magnesium , and softening in the ion exchange resin to exchange the
water calcium and magnesium ions by sodium ion exchange , so that the water is not easy to form carbonate scale and sulfate scale
, resulting in softened water
Precision Filter
The precision filter, also known as cartridge filter housing,
is used to prevent impurities like particles from entering high pressure pump and reverse osmosis membrane module.
The filtration precision ranges form 0.10μm to 60μm and it is free from influences feed pressure fluctuation.
is used to prevent impurities like particles from entering high pressure pump and reverse osmosis membrane module.
The filtration precision ranges form 0.10μm to 60μm and it is free from influences feed pressure fluctuation.
RO reverse osmosis membrane
RO reverse osmosis equipment adopts the membrane separation to remove the water ions, organic matter, colloidal particles, bacteria and other impurities in the water desalination and purification to achieve the purpose. The principle is the solution to penetrate the membrane of water and separated, the water is leaking to the solution, the osmotic pressure between the two phases, if the solution phase
on the pressure, so the pressure is the osmotic pressure, the solution to the water, the water will be the opposite infiltration
to, obtained using reverse osmosis desalination of water. That is enough pressure in the raw water, through the permeable membrane and into pure water, no water through the membrane, the dissolved, suspended solids concentration increases gradually, as the concentration of water out. Reverse osmosis plant can not only desalt, but also filter out the organic matter, bacteria and so on.
RO water product is on-line motored by the LCD conductivity meter.Reverse osmosis systems are generally required to run once a day. If it is stopped to run More than a week, it should be taken protective measures, otherwise would have a serious impact on the life of membranes.
to, obtained using reverse osmosis desalination of water. That is enough pressure in the raw water, through the permeable membrane and into pure water, no water through the membrane, the dissolved, suspended solids concentration increases gradually, as the concentration of water out. Reverse osmosis plant can not only desalt, but also filter out the organic matter, bacteria and so on.
RO water product is on-line motored by the LCD conductivity meter.Reverse osmosis systems are generally required to run once a day. If it is stopped to run More than a week, it should be taken protective measures, otherwise would have a serious impact on the life of membranes.
UV sterilization
When microorganisms are iradiated by ultraviolet light, their proteins and nucleic acids absorb ultraviolet spectral energy,leading to protein denaturation and microbial death. The ultraviolet ray has certain penetrating ability to the clean transparent water, therefore can cause the water disinfection. Ultraviolet ray sterilization cannot change the physical and chemical properties of water, sterilization speed, high efficiency, no odor, so it is widely used.
ozone mixing tower and generator
Ozone generator is used to produce ozone and provide raw materials for mixing tower. The ozone mixing tank is a kind of water
treatment equipment. It is to fully mix water and ozone, thus achieving purposes of sterilization, retaining freshness and
avoiding secondary pollution for the producing of mineral pure water.
treatment equipment. It is to fully mix water and ozone, thus achieving purposes of sterilization, retaining freshness and
avoiding secondary pollution for the producing of mineral pure water.
Contact Us
Related Products
Product packaging
After Sales Service
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 20-30days,if complete production line it is 45-60 days.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance.
Payment>=1000USD, 30% T/T in advance ,balance Before shippment.
