Quick Details
-
Brand Name:
-
Hongfeng VAC
-
Model Number:
-
Non
-
Application:
-
PVD, CVD, PVD, CVD, vacuum coating
-
Technique:
-
Forging ,Machining
-
Grade:
-
Ti,TiAlSi,TiAl,Graphite,Zirconium,Cr,Al,AlCrSi,Si
-
Type of material:
-
Ti,TiAlSi,TiAl,Graphite,CrAl,Zirconium,Cr,Al,AlCrSi,Si
-
Size:
-
Cusomized
-
Shape:
-
Tubes or discs, and can be plates
-
Involved techniques:
-
Sputtering and arc ion plating
Quick Details
-
Powder Or Not:
-
Not Powder
-
Ti Content (%):
-
>99.99%
-
Place of Origin:
-
China
-
Brand Name:
-
Hongfeng VAC
-
Model Number:
-
Non
-
Application:
-
PVD, CVD, PVD, CVD, vacuum coating
-
Technique:
-
Forging ,Machining
-
Grade:
-
Ti,TiAlSi,TiAl,Graphite,Zirconium,Cr,Al,AlCrSi,Si
-
Type of material:
-
Ti,TiAlSi,TiAl,Graphite,CrAl,Zirconium,Cr,Al,AlCrSi,Si
-
Size:
-
Cusomized
-
Shape:
-
Tubes or discs, and can be plates
-
Involved techniques:
-
Sputtering and arc ion plating

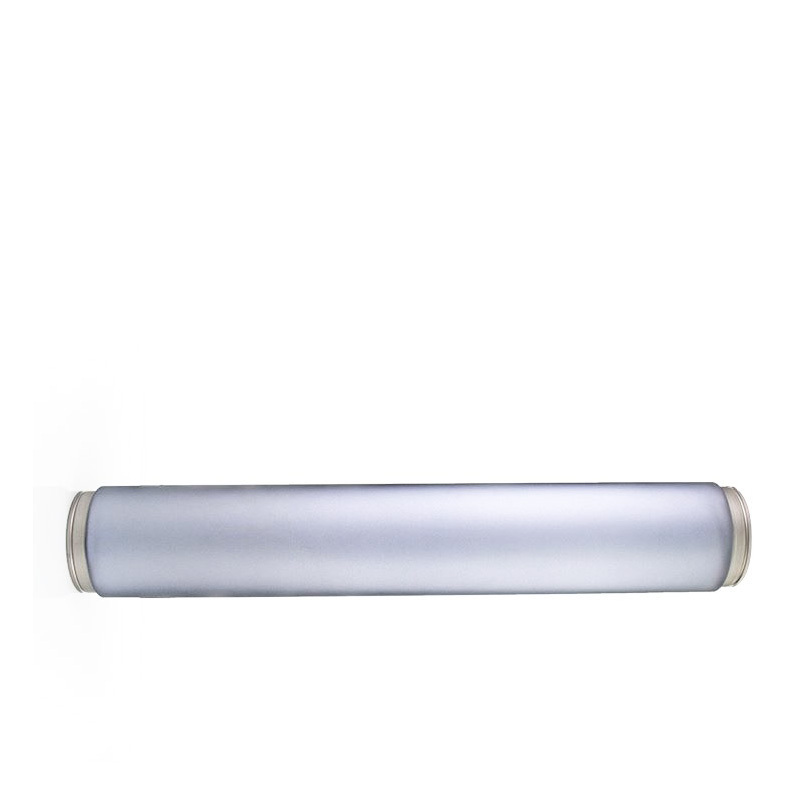

Cylindrical Magnetron Sputtering Target for PVD Vacuum Coating Titanium Tube Metal Tubes Raw Materials Coating Cathodes
Characteristic
| Technique | Forging ,Machining | ||||||
| Status | Annealed | ||||||
| Type | Round target | ||||||
| Surface | CNC lathe surface | ||||||
| Certificate | SO9001:2015, TUV, SGS ,EN10204.3.1 | ||||||
| Application |
1. Medical:titanium alloy (Ti6Al4V-ELI F136) and cp titanium (Ti Gr.2 F67) for implants
2. Used in semiconductor, chemical vapor deposition (CVD) and physical vapor deposition (PVD) display and optical applications |
||||||
Specifications:
| Specifications | Chromium | Chrome aluminum | Titanium | Titanium aluminum |
| Content | 99.99% | 99.99% | 99.99% | 99.99% |
| Density | 7.19cm 3 /g | customized | 4.5cm 3 /g | customized |
| Average particle size | ≤50μm | ≤50μm | ≤50μm | ≤50μm |
| Shape (Max or Minimum) | Customized | customized | customized | customized |
| Sintering technology | Hot isostatic pressure | hot isostatic pressure | hot isostatic pressure | hot isostatic pressure |
| Oxygen content | ≤150ppm | ≤150ppm | ≤100ppm | ≤100ppm |
We provide target materials in this type:
| Cylindrical Sputtering Target Material | Arc Target Material Discs |
| Titaninum | Titaninum |
| - | TiAlSi |
| - | TiAl |
| - | Graphite |
|
Silicon (3mm thickness for the silicon, with
stainless steel core) |
- |
| - | CrAl |
| - | Zirconium |
| Chrome | Chrome |
| Aluminum | Aluminum |
| - | AlCrSi |
Inquiry Guide :
The PVD coating machine can be used for different materials and industries. In order to recommend you the appropriate machine, we need your help on telling us:
What size of target material?
What purity?
