Quick Details
-
Brand Name:
-
Scodeno
-
Model Number:
-
XPTN-9000-85-2GX4GP-VX
-
Place of Origin:
-
Guangdong, China
-
Operating temperature:
-
-40℃~ +75℃
-
Level of protection:
-
IP50
-
Warranty:
-
5 Years
-
Input voltage:
-
DC48-58V
-
Buffer:
-
2M
-
WatchDog:
-
Support
-
PowerSurge protection:
-
10KV/10KV
-
Power Consumption:
-
PoE <246W
-
Installation Method:
-
DIN rail
-
Certification:
-
FCC, CE, RoHs
Quick Details
-
Transmission Rate:
-
10/100/1000Mbps
-
Communication Mode:
-
Full-Duplex & Half-Duplex
-
Switch Capacity:
-
26G
-
Brand Name:
-
Scodeno
-
Model Number:
-
XPTN-9000-85-2GX4GP-VX
-
Place of Origin:
-
Guangdong, China
-
Operating temperature:
-
-40℃~ +75℃
-
Level of protection:
-
IP50
-
Warranty:
-
5 Years
-
Input voltage:
-
DC48-58V
-
Buffer:
-
2M
-
WatchDog:
-
Support
-
PowerSurge protection:
-
10KV/10KV
-
Power Consumption:
-
PoE <246W
-
Installation Method:
-
DIN rail
-
Certification:
-
FCC, CE, RoHs

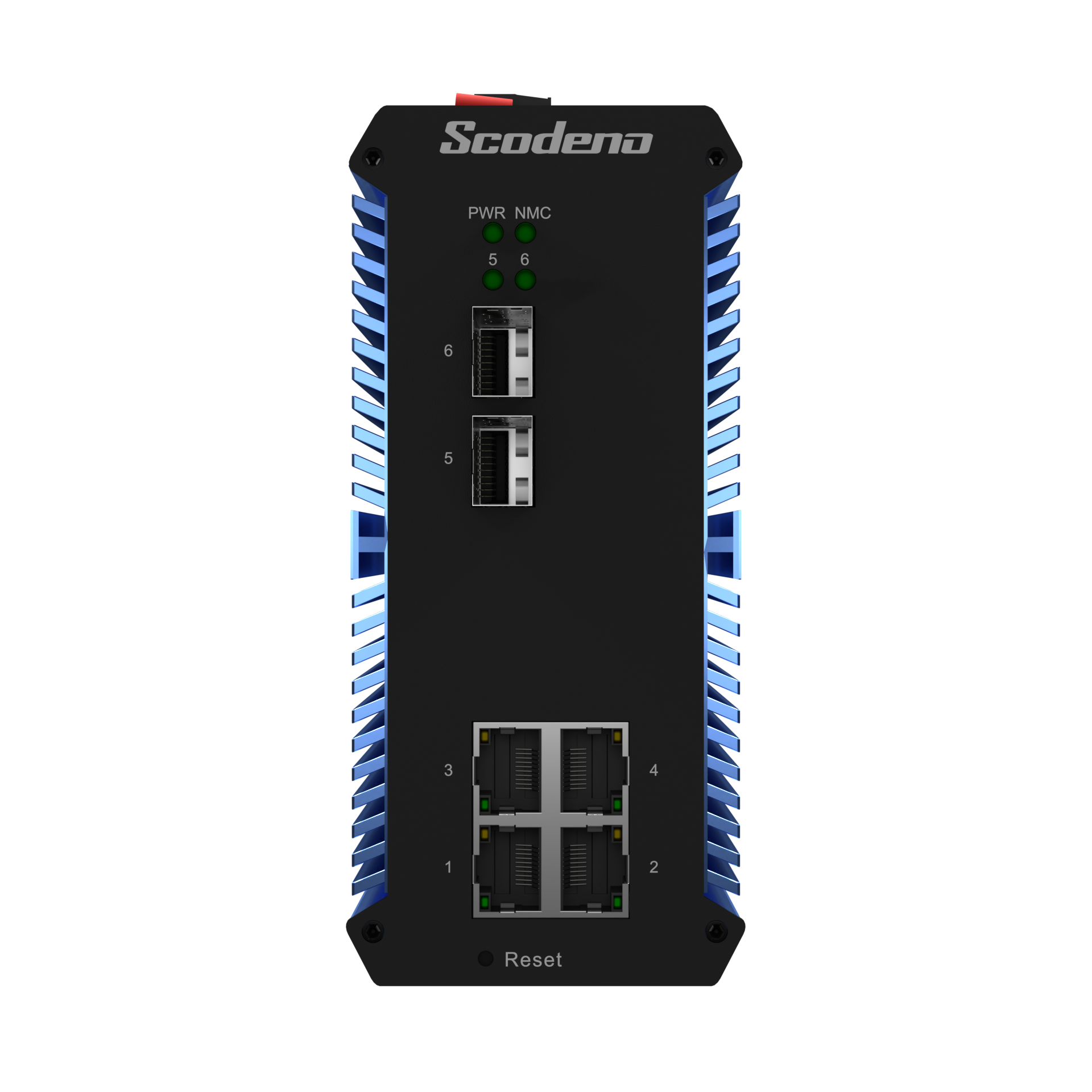

Managed Din-Rail industrial POE switch IP50 2 SFP 4 Ethernet Port Gigabit Switch outdoor POE switch
The device is 2*1000Base-X, 4*10/100/1000Base-T Managed PoE Industrial Ethernet switch, through the fanless cooling circuit design, wide range working environment temperature, high protection level and other technologies, provide high / low temperature, lightning protection and other outstanding industrial quality, and integrated switching, safety and various rich protocols, simultaneously supported The public Ethernet multi ring protection technology (ERPS) has greatly enhanced the flexibility of the network and enhanced the reliability and security of the industrial network. It can meet the deployment requirements of rail transit, safe city, intelligent transportation, outdoor monitoring and other harsh environments.
|
Provider Mode Ports |
|
|
Fixed port |
2*1000 Base-X ,4*10/100/1000 Base-T |
|
Management Port |
Support console |
|
Power interface |
Phoenix terminal, redundant dual power supply |
|
LED Indicators |
PWR ,Link/ACT LED |
|
|
|
|
Network Topology |
|
|
Ring topology |
Support |
|
Star topology |
Support |
|
Bus topology |
Support |
|
Tree Topology |
Support |
|
Hybrid topology |
Support |
|
Electrical Specifications |
|
|
Input voltage |
DC12~58V(Non-PoE), DC48-58V(PoE) |
|
Total Power consumption |
<10W(Non-PoE), <130W(PoE) |
|
|
|
|
PoE Support |
|
|
PoE port |
1-4 |
|
PoE P rotocol |
802.3af ,802.3at |
|
Pin Assignment |
1,2,3,6 |
|
PoE Management |
Support |
|
|
|
|
Layer 2 Switching |
|
|
Switching capacity |
36G |
|
Packet forwarding rate |
26.78Mpps |
|
MAC address table |
16K |
|
VLAN |
Support 4K |
|
Buffer |
12M |
|
Forwarding delay |
<10us |
|
MDX/MIDX |
Support |
|
Flow control |
Support |
|
Jumbo Frame |
Support 10Kbytes |
|
Spanning Tree |
Support STP/RSTP/MSTP |
|
Ring Protocol |
Support ERPS |
|
Link Aggregation |
Support 12 group |
|
Multicast |
Support IGMP Snooping |
|
Port Mirroring |
Support |
|
Storm Control |
Support |
|
Interface Counters |
Support |
|
QINQ |
Support |
|
802.1X |
Support |
|
MAC Authentication |
Support |
|
Port Isolation |
Support |
|
Rmon |
Support |
|
NTP client |
Support |
|
DHCP client |
Support |
|
DHCP snooping |
Support |
|
DHCP CLIENT |
Support |
|
PING/TRACEROUT |
Support |
|
Dying gasp |
Support |
|
DDM |
Support |
|
Convergence |
|
|
ACL |
Support ACL 500 Support IP standard ACL Support MAC expand ACL Support IP expand ACL |
|
QOS |
Support QoS re-marking, priority mapping Support SP, WRR queue scheduling Support engress rate-limited, egress rate-limit Support Policy-based QoS |
|
Management |
|
|
CLI |
Support |
|
Console |
Support |
|
Telnet |
Support |
|
WEB management |
Support |
|
Management IP |
Support IPV4/IPV6 |
|
SNMP |
Support SNMPv1/v2c/v3 |
|
User Management |
Support |
|
System Log |
Support |
|
Configuration File Download/Upload |
Support |
|
Upgrade Firmware |
Support |
