- Product Details
- {{item.text}}
Quick Details
-
Power:
-
3kw
-
Min. Lifting Height:
-
1.45m
-
Table Size:
-
2010*930mm
-
Overall Dimensions:
-
2016*1100*H mm
-
Weight:
-
1170 kg
-
Product name:
-
cheap scissor lift
-
Voltage:
-
3 Phase
-
HS Code:
-
8428909090
-
type:
-
manual scissor lift
-
color:
-
customized
-
Control methods:
-
Control Box + Control Panel
-
Lifting speed:
-
3-6m/min
-
Motor power:
-
3kw
-
Material:
-
High-duty Steel Structure
Quick Details
-
Warranty:
-
1 Year
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
XINJUXIN
-
Power:
-
3kw
-
Min. Lifting Height:
-
1.45m
-
Table Size:
-
2010*930mm
-
Overall Dimensions:
-
2016*1100*H mm
-
Weight:
-
1170 kg
-
Product name:
-
cheap scissor lift
-
Voltage:
-
3 Phase
-
HS Code:
-
8428909090
-
type:
-
manual scissor lift
-
color:
-
customized
-
Control methods:
-
Control Box + Control Panel
-
Lifting speed:
-
3-6m/min
-
Motor power:
-
3kw
-
Material:
-
High-duty Steel Structure
Product Description

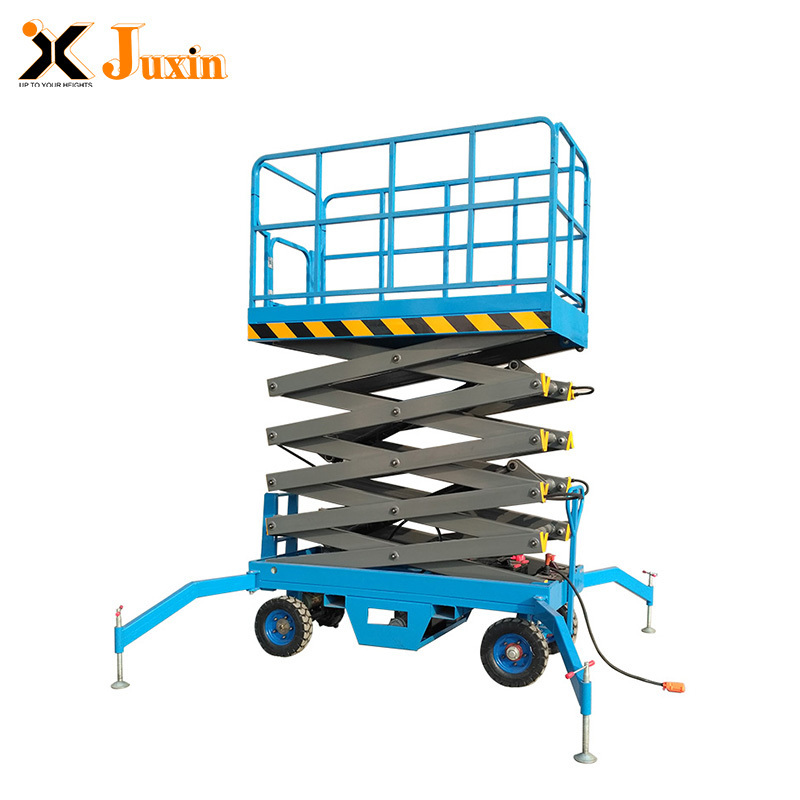

Hydraulic Electric Movable Scissor Lift AC DC Powered Man Lifting Indoor Outdoor Lifting Platform Aerial Access Platform
The mobile lifting platform is mostly made of shear fork lifting structure, which is made of rectangular pipe of manganese steel in Shanghai Bao steel. This series of products has the characteristics of flexible movement, stable lifting, convenient operation and large load. This series of products mostly use electric hydraulic as lifting power, but also can be equipped with manual hydraulic lifting device according to the need. There are various power forms: single-phase 220 v AC power supply, three-phase 380 v AC power supply, DC 12 v (24V ,36V ,48 v ,60 v), AC-DC dual-use or diesel engine. There are many ways of moving, such as manual movement, manual auxiliary movement, self-walking, track electric movement and so on. The series of hydraulic system accessories and electrical accessories are domestic and foreign well-known brand products, product quality is guaranteed. Mainly suitable for industrial and mining workshops, enterprises, stations, docks, buildings, pavilions and other high-altitude work places.
Details Images
ISO CE Approved Scissor Lifts For Aerial Working is mainly used to lift workers to high place for repairs, maintenance, cleaning or installation and so on. You can move it easily to the right working area. The Mobile Scissor Lift can be also equipped with battery. With the battery, you don't need to connect AC power, and you can let the mobile scissor lift at some work areas without power. Also, this type of mobile scissor lift can be installed with the driven wheel to move it by hands without any hardness.
Specification
|
Model
|
Platform size(mm)
|
Load
(kg)
|
Lifting Height
(m)
|
Overall size(mm)
|
Motor(kw)
|
Weight(kg)
|
|
SJY0.5-4
|
2010*930
|
500
|
4
|
2016*1100*1100
|
2.2
|
850
|
|
SJY0.5-6
|
2010*930
|
500
|
6
|
2016*1100*1245
|
3
|
950
|
|
SJY0.5-7
|
2010*930
|
500
|
7
|
2016*1100*1245
|
3
|
950
|
|
SJY0.5-8
|
2010*930
|
500
|
8
|
2016*1100*1365
|
3
|
1070
|
|
SJY0.5-9
|
2010*930
|
500
|
9
|
2016*1100*1485
|
3
|
1170
|
|
SJY0.5-10
|
2010*1130
|
500
|
10
|
2016*1290*1540
|
3
|
1360
|
|
SJY0.5-11
|
2010*1130
|
500
|
11
|
2016*1290*1660
|
3
|
1480
|
|
SJY0.5-12
|
2462*1210
|
500
|
12
|
2465*1360*1920
|
3
|
2000
|
|
SJY1.0-6
|
2010*1130
|
1000
|
6
|
2016*1290*1300
|
3
|
1250
|
|
SJY10.-8
|
2010*1130
|
1000
|
8
|
2016*1290*1420
|
3
|
1450
|
|
SJY1.0-10
|
2010*1130
|
1000
|
10
|
2016*1290*1540
|
3
|
1600
|
|
SJY1.0-12
|
2462*1210
|
1000
|
12
|
2465*1360*1920
|
3
|
2400
|
PS: Except our normal models, the platform size, loading capacity, color, travel height , batteries, trailer handle etc can be customized according to your request.
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
