Quick Details
-
Product name:
-
[Softel]DVB IP Multiplexer
-
IP input:
-
256 each module
-
MUX:
-
RF DVB-C
-
QAM out:
-
8 QAM RF out
-
Scrambler:
-
8each module
-
1U:
-
with 3 module
-
CAS:
-
support 4 simulscrypt CAS
-
MER:
-
above 42
-
Power supply:
-
2 power
-
MOQ:
-
1 unit
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
SOFTEL/OEM
-
Model Number:
-
SFT3107
-
Product name:
-
[Softel]DVB IP Multiplexer
-
IP input:
-
256 each module
-
MUX:
-
RF DVB-C
-
QAM out:
-
8 QAM RF out
-
Scrambler:
-
8each module
-
1U:
-
with 3 module
-
CAS:
-
support 4 simulscrypt CAS
-
MER:
-
above 42
-
Power supply:
-
2 power
-
MOQ:
-
1 unit
You May Also Like
CATV Encoder Modulator digital modulator
FTTH
4port
Gpon OLT price
1550nm
Softel 10db 35KM optical transmitter
Products Description
I. Product Overview

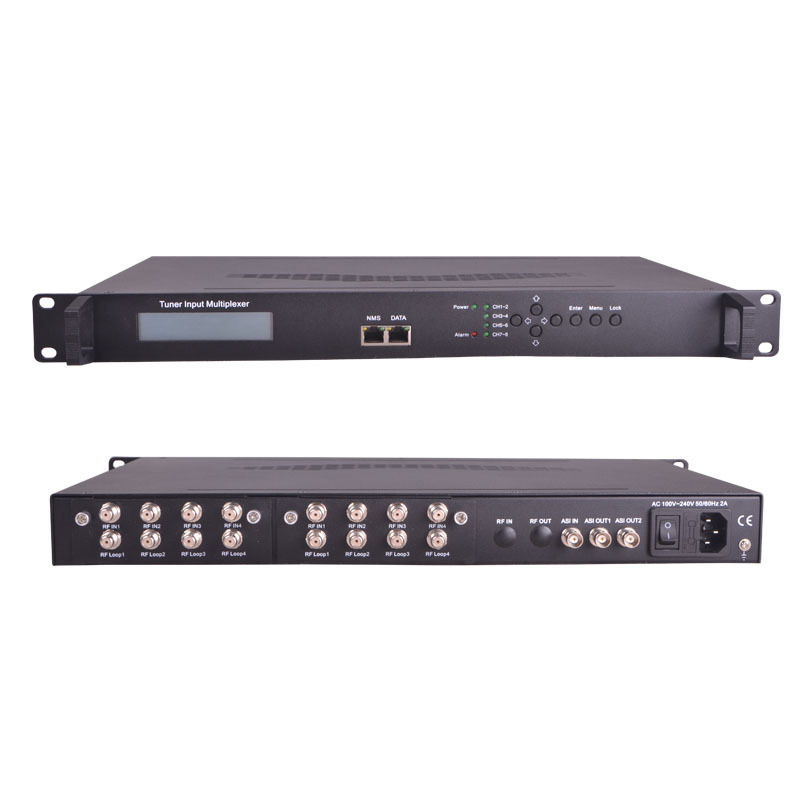

SFT3107 Tuner Input Multiplexer is the latest demodulation and multiplexing device for digital TV broadcasting head-end system.
Different from normal multiplexer, this multiplexer has 1 IP input, 2 ASI inputs, supports 6 tuner inputs (ISDB-T/DVB-C/S/S2/T/ATSC optional), two separate ASI output ports and one DATA port for two separate gigabit IP outputs.
Different from normal multiplexer, this multiplexer has 1 IP input, 2 ASI inputs, supports 6 tuner inputs (ISDB-T/DVB-C/S/S2/T/ATSC optional), two separate ASI output ports and one DATA port for two separate gigabit IP outputs.
In other words, It can multiplex the RF signals from satellite into the output ports via the 6 tuners, also it can multiplex up to 2 channels ASI input MPTS into the output transport stream (MPTS). In other words, one Tuner Input Multiplexer can work as 6 standalone FTA IRD and two separate ASI output multiplexer.
In conclusion, its high integration and cost effective design make this device widely used in the Next Generation of CATV Broadcasting system.
II. Features
* Fully complying with ISO13818 and EN300 468 standard
* Integrated demodulating and multiplexing functions
* 2 channels ASI input forre-multiplexing
* 1 IP input over UDP and RTP
* Support accurate PCR adjusting
* Support PID filtering, re-mapping
* Two groups (each group has 2 channels)separate TS outputs
* Support IP outputover UDP output as mirror of ASI output (RJ45), GE Port
* SupportPSI/SI (PAT and PMT tables) generation and edit
* Huge buffer memory for saving the overflowing code stream
* Supporting to multiplex one program to all outputs
* Network long-distance upgraded
* LCD/keyboard and net management, support NMS/SNMP
* Integrated demodulating and multiplexing functions
* 2 channels ASI input forre-multiplexing
* 1 IP input over UDP and RTP
* Support accurate PCR adjusting
* Support PID filtering, re-mapping
* Two groups (each group has 2 channels)separate TS outputs
* Support IP outputover UDP output as mirror of ASI output (RJ45), GE Port
* SupportPSI/SI (PAT and PMT tables) generation and edit
* Huge buffer memory for saving the overflowing code stream
* Supporting to multiplex one program to all outputs
* Network long-distance upgraded
* LCD/keyboard and net management, support NMS/SNMP
Details Images
Product Paramenters
|
Input interface
|
1 IP + 2 ASI+6 tuners(DVB-C/DVB-S/DVB-S2/DVB-T/DVB-T2/ISDB/ATSC)
|
|
|
|
Re-multiplex
|
2 channels TS re-multiplex
|
|
|
|
|
PID re-mapping (auto/manual optional)
|
|
|
|
|
PCR accurate adjusting
|
|
|
|
|
PSI/SI (PAT, PMT) tables auto generation and edition (For SFT3107);
PSI/SI (PAT, PMT) and PSIP (STT, MGT, VCT) tables auto generation and edition (For SFT3107B) |
|
|
|
Input
|
Packet format
|
204/188 self-adaption
|
|
|
Output port
|
ASI
|
2 groups separate outputs (each group has 2 channels)
|
|
|
|
IP
|
TS over UDP output as mirror of ASI output(RJ45), GE Port
|
|
|
PID
|
Output range
|
0x0000—0x1FFF
|
|
|
|
PID transparent
|
Any PID transparent and mapping achievable
|
|
|
|
Amount of output PID per input
|
64
|
|
|
NMS port
|
Ethernet port
|
10/100M
|
|
|
General
|
Demission(WxLxH)
|
482mm×410mm×44mm
|
|
|
|
Weight
|
6kg
|
|
|
|
Temperature
|
0~45℃(operation), -20~80℃(storage)
|
|
|
|
Power supply
|
AC 110V±10%, 50/60Hz
Or AC 220V±10%, 50/60Hz |
|
|
|
Consumption
|
18W
|
|
