- Product Details
- {{item.text}}
Quick Details
-
Dimension(L*W*H):
-
Machine Size
-
Weight (T):
-
10
-
Model Number:
-
YQ32
-
Warranty:
-
1 Year
-
Product name:
-

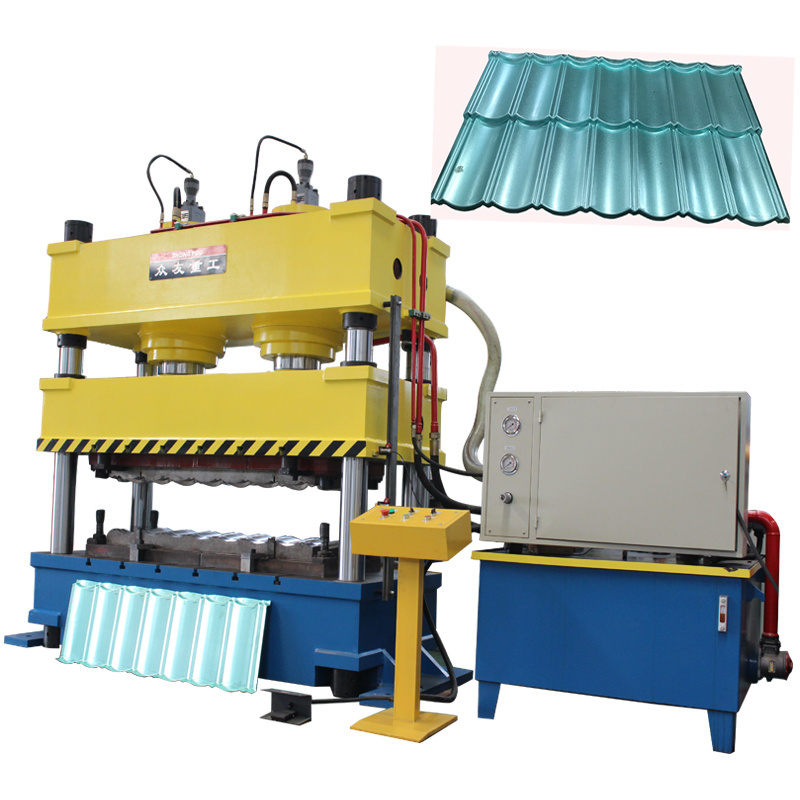

Hydraulic Cold Press Metal Stamp Stone coated tile Making Machine
-
Keyword:
-
iron tile making machine
-
Application:
-
steel tile stamping press machine
-
Function:
-
Metal Processing,coin punching pressing stamping
-
Usage:
-
metal tensile,punching,rummaged,cold extrusion
-
Color:
-
Customizable
-
Name:
-
steel tile making hydraulic press machine
-
Type:
-
YQ32-300ton
-
Material:
-
Q235
-
Model:
-
Four Column cold press machine for metal stamp
-
Certification:
-
ISO9001:2008 CE
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
tengzhou zhongyou
-
Voltage:
-
380V/220V Optional
-
Dimension(L*W*H):
-
Machine Size
-
Weight (T):
-
10
-
Model Number:
-
YQ32
-
Warranty:
-
1 Year
-
Product name:
-
Hydraulic Cold Press Metal Stamp Stone coated tile Making Machine
-
Keyword:
-
iron tile making machine
-
Application:
-
steel tile stamping press machine
-
Function:
-
Metal Processing,coin punching pressing stamping
-
Usage:
-
metal tensile,punching,rummaged,cold extrusion
-
Color:
-
Customizable
-
Name:
-
steel tile making hydraulic press machine
-
Type:
-
YQ32-300ton
-
Material:
-
Q235
-
Model:
-
Four Column cold press machine for metal stamp
-
Certification:
-
ISO9001:2008 CE
At the same time for different customer requirement, such as integral structure, simple and elegant horizontal structure, under the pressure of work structure, additional under cylinder type etc.
Visual operation interface, image operation guide, get started very fast.
To ensure that customers use our hydraulic press Tile forming machine can perfectly create their own pursuit of the product effect,
At the same time in line with the principle of the sake of customers, try to simplify the design, to ensure both economic and durable, easy to use.
| game coins collectibles coins machine hydraulic press machine Specification | Unit | YQ32-315A |
| Nominal force | Kn | 3150 |
| Max pressure of hydraulic system | Mpa | 25 |
| Max. Opening height | mm | 1250 |
| Slider effective stroke | mm | 800 |
| Working table size | mm | 1260*1160 |
| Nominal force of Ejection cylinder | Kn | 630 |
| Ejection stroke | mm | 300 |
| Slider working speed (empty travel) | mm/s | 120 |
| Slider working speed (press) | mm/s | 8~15 |
| Slider working speed (return stroke) | mm/s | 90 |
We have a number of innovative patents,
because more than ten years to concentrate on only hydraulic press machine,
in the small and medium enterprises has been the leader of the brand.
In shandong even the whole country, Comprehensive cost is no doubt.
Stone Coated Steel Tile hydraulic press machine
optional accesories or fuctions:
1.the movable table
2.blanking buffer device
3.optoelectronic protective devices.
4.the touch screen industry
5.the hydraulic system heating ,cooling means
6.playing feeding device
7.slide safety bolt
8.PLC programable contrloler
Whether the independent production and processing?
YES!
We have been done it for 16 years.
Whether to provide technical support?
YES!
We can provide free design, drawings manuals, and even technical staff overseas field guidance when needed.
Whether it is prone to problems?
NO !
Electric welding of high precisionUsage of high-tech boring machines for extreme precision parts
Whether to accept cash on delivery?
Sorry, you have to make a payment as described .
Sure!
address:Economic Development Zone Industrial North Road ,TengZhou ,ShanDong province in China.
You may contact us when arriving in TengZhou CITY.
shandong zhongyou
-----Professional to create a leading brand of hydraulic press
16 years of accumulated experience,
each one is ingenuity.
We hope to strive for excellence.
Satisfied with the experience is the greatest affirmation for us!
Our company is located in Tengzhou City, Shandong Province, China.
A domestic leading hydraulic machine production of the Holy Land.
Completely dependent on first-class production process,
stand out from a large number of hydraulic machine manufacturers .
Over the years, widely praised by customers at home and abroad.
cold press metal steel iron tile making hydraulic press machine best trusted manufacturer from china shandong province.
hydraulic press machine field of use:
Applicable to metal non-metallic materials ( Commemorative coins, game coins, collectibles coins press ,watches, metal products, bicycles, motorcycles, tableware, kitchen utensils, automobiles, electrical appliances, rubber, grinding wheel, buttons, gold and silver jewelry, ceramics, powder metallurgy, etc.)
cold press metal game coin making hydraulic press machine relations link.
YQ32 hydraulic press equipment for Hydraulic Cold Press Metal Stamp Stone Coated Steel Tile Making Machine before buy:
please make sure :what specification do you require?
such as nominal pressure,liquid maximum presure,slider travel,workbench effective area..etc.
IF you are not sure,please let us know :what do you want to do with our press machine,
and we could talor-made for you,or recomend the right size,the proper price to you.
