1. Login vending system
2. Meter number registration
3. Customer information registration
4. Price Setting
5. Open Account
6. Vending/Topping up meters
7. Get the Token
8. Input Token to meter with keypad
9. Recharging successfully
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
Stron
-
Model Number:
-
STW36-A
-
size:
-
DN15,DN20,DN25
-
Protection class::
-
IP68
-
Display::
-
LCD
-
Standrad:
-
STS
Quick Details
-
Warranty:
-
2 years
-
Type:
-
Multi-jet meters, Prepaid water meters
-
Place of Origin:
-
Hunan, China
-
Brand Name:
-
Stron
-
Model Number:
-
STW36-A
-
size:
-
DN15,DN20,DN25
-
Protection class::
-
IP68
-
Display::
-
LCD
-
Standrad:
-
STS
Product Description

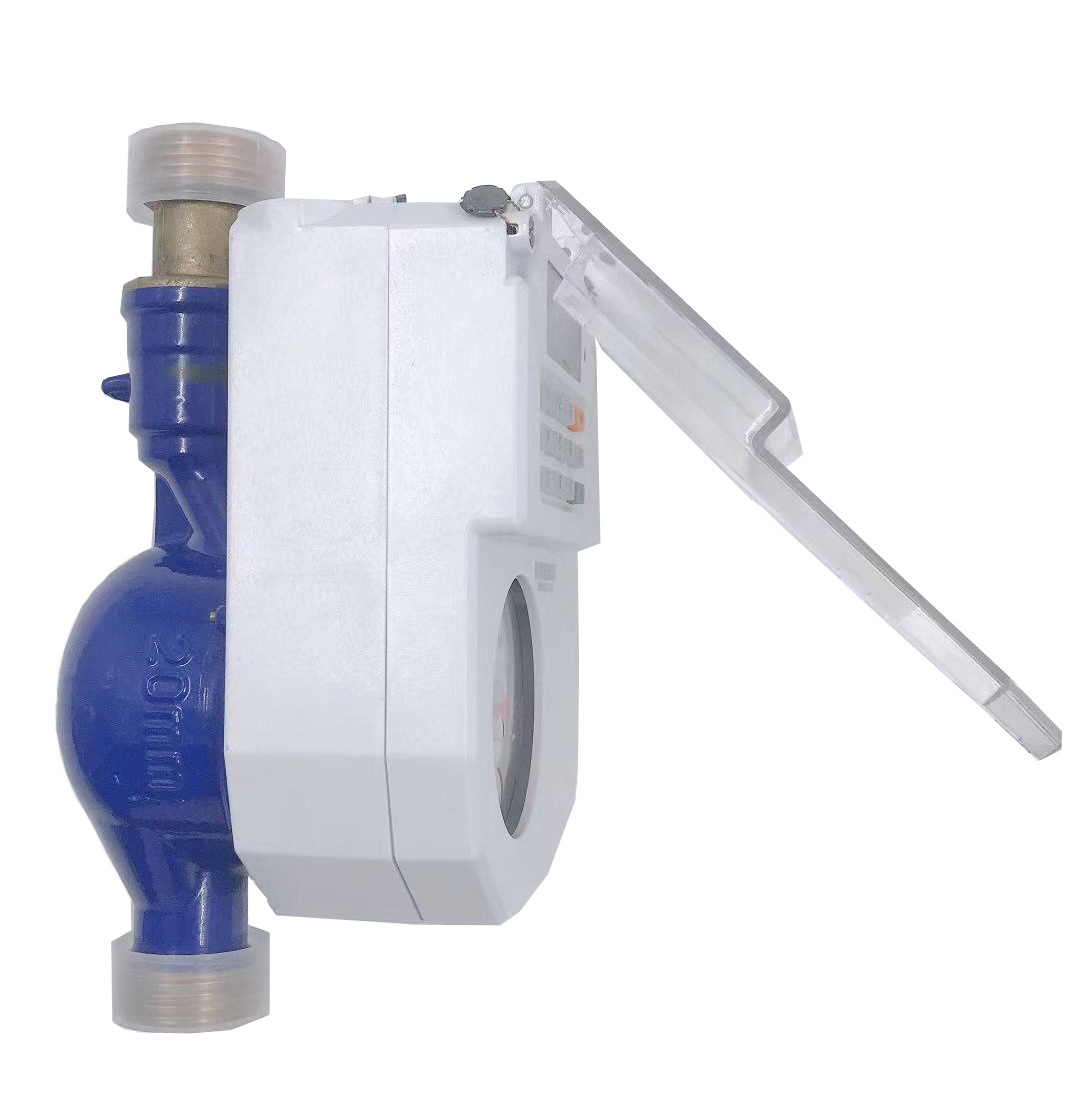

This Multi-Jet prepaid water meter has high quality with IP68 waterproof, allowing to operate in harsh environments. The
Class C/R160
accuracy can measure the water when it's dropping. The Multi-Jet construction make the meter running Normally in muddy water never stuck. It has low pressure loss (<0.06Mpa), and the accuracy always better after 10years.
The battery has 6-10years lifetime and easy to replace. The seal design make the battery and circuit board wrapped with epoxy resin and isolated from the air.
Stronpay water vending software could be integrated to local Mobile Money Payment Platform like M-PESA, Alipay, MTN, Airtel, etc. So users can top up PAYG water by mobile money without leaving the house.
Pay as you go function and excellent anti-tamper feature like Magnetic field protection to help utilities for Revenue water protection and consumer management.
Metrological Parameters of different size
|
Size
|
|
DN15mm 1/2"
|
DN20mm 3/4"
|
DN25mm 1"
|
|
|
Overload flow rate Q4
|
|
3.125
|
5
|
7.875
|
|
|
Permanent l flow rate Q3
|
|
2.5
|
4
|
6.3
|
|
|
Transitional flow rate Q2
|
|
0.025
|
0.004
|
0.063
|
|
|
Minimum flow rate Q1
|
|
0.0156
|
0.025
|
0.0393
|
|
|
Ratio ”R” Q3/Q1
|
|
160
|
160
|
160
|
|
|
Maximum working pressure
|
|
16Bar
|
16Bar
|
16Bar
|
|
|
Maximum pressure loss
|
|
0.6Bar
|
0.6Bar
|
0.6Bar
|
|
|
Maximum reading
|
|
99999
|
99999
|
99999
|
|
|
Max temperature
|
|
50℃
|
50℃
|
50℃
|
|
|
Error
|
Q1≦Q≦Q2
|
5%
|
5%
|
5%
|
|
|
|
Q2≦Q≦Q4
|
2%
|
2%
|
2%
|
|
Basic Functionality
|
Function
|
Details
|
|
Prepayment
|
STS Standard, recharge by input 20digits TOKEN
|
|
Low credit alarm
|
Alarm value can be set by inputting corresponding TOKEN
|
|
Prepaid and post-paid switch
|
Meter can be switch to prepaid mode or post-paid mode
|
|
Non-return valve
|
Non-return valve inside for preventing back-flow
|
|
Anti-tamper
|
Meter will automatically close the valve after detection of magnetic field and open cover event
|
|
Step Tariff
|
Step Tariff can be set by inputting corresponding TOKEN
|
|
Overdraft Collection
|
Non- Revenue gas (Overdraft) can be collected day by day or
month by month |
|
Communication
|
The meter is available with AMI system through LORA RF or Bluetooth 4.0 on request
|
|
Information Inquiry
|
Consumer could check the data like Credit Remain, Total Purchased and Total Credit by input the short code
|
Meter Dimensions
|
Size
|
DN15 1/2"
|
DN20 3/4"
|
DN25 1"
|
|
Length(L)
|
165/190
|
190
|
225/260
|
|
Width(W)
|
99
|
99
|
103
|
|
Height(H)
|
104
|
106
|
114
|
|
Connecting Thread
|
G3/4B
|
G1B
|
G1-1/4B
|
Stronpay Vending Software
Operation of vending software
Water
Vending Process
API
---Stronpay vending software can integrated with local mobile payment via API
