High Quality 12 volt high pressure hydraulic hose assembly crimping machine/hose crimper for sale
High Quality 12 volt high pressure hydraulic hose assembly crimping machine/hose crimper for sale
High Quality 12 volt high pressure hydraulic hose assembly crimping machine/hose crimper for sale
High Quality 12 volt high pressure hydraulic hose assembly crimping machine/hose crimper for sale
High Quality 12 volt high pressure hydraulic hose assembly crimping machine/hose crimper for sale
High Quality 12 volt high pressure hydraulic hose assembly crimping machine/hose crimper for sale
High Quality 12 volt high pressure hydraulic hose assembly crimping machine/hose crimper for sale
High Quality 12 volt high pressure hydraulic hose assembly crimping machine/hose crimper for sale

High Quality 12 volt high pressure hydraulic hose assembly crimping machine/hose crimper for sale

FOB Reference Price: Get Latest Price
≥1 Sets
US $3000
≥10 Sets
US $2900
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Weight:
70
Name:
Manual Hose crimping machine
Application:
Crimp Hydraulic Hose, Fitting & Ferrule
Model:
BNT92S-B
Color:
Blue
Control System:
Manual
HS COSDE:
846291900
Origin:
Tianjin,China
Certification:
CE
Keywords:
manual hose Crimping Tool
Material:
Carbon Steel

Quick Details

Place of Origin:
Beijing, China
Brand Name:
BNTFLEX
Dimension(L*W*H):
550*520*395mm
Weight:
70
Name:
Manual Hose crimping machine
Application:
Crimp Hydraulic Hose, Fitting & Ferrule
Model:
BNT92S-B
Color:
Blue
Control System:
Manual
HS COSDE:
846291900
Origin:
Tianjin,China
Certification:
CE
Keywords:
manual hose Crimping Tool
Material:
Carbon Steel

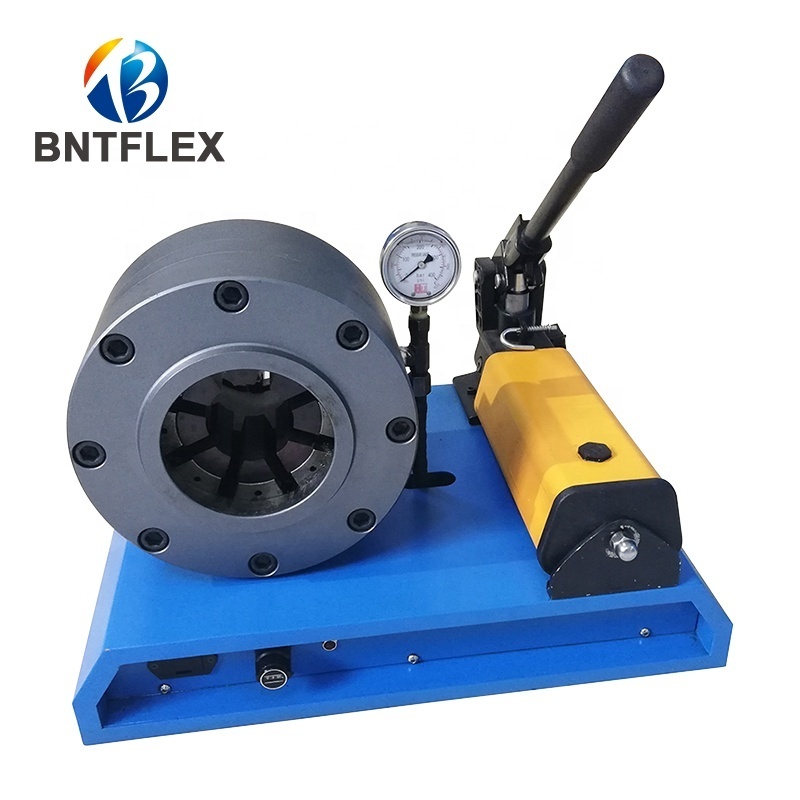

CRIMPING MACHINES

BNT92S-B

FIELD SERVICE & MOBILE WORKSHOP
HAND PUMP, PORTABLE
KEY ADVANTAGES
Easy to use
Balanced design
Enerpac pump
Step die base for fast crimping
Digital press regulator, crimping more accurate
Visual signal when crimping size is reached
Small volume and light weight.

MAIN APPLICATIONS

Dedicated to repair shops or maintenance departments making low volumes of small and medium sized hose assemblies. Also ideal for
carrying out on-site repairs.

TECHNICAL SPECIFICATIONS

Type :BNT92S-B
Crimp force (kN / Ton) :1370/137
SAE R 12/4SP* 1 piece fitting :11/4˝
SAE R 15/4SH* 2 piece fitting :1˝
Industrial :11/4˝
90° Elbows :1˝
Max. Crimp range(mm) :78mm
Opening :+28mm
Opening without dies :108mm
Master dies length :75mm
Type of dies :NO.12-NO.48
Speed (mm/sec) :
Close
Crimp
Drive :manual
Oil :1.3L
NO. of standard dies :12sets
Systematic pressure :30Mpa
Noise level :≦75dB

Dimensions :490*390*380mm
Net Weight :71kg
Packaging :590*450*490mm
Gross Weight :85kg
Capacity :2wb:11/4''max
4ws: 11/4” max



Technical Features:

-Hand pump
-Options available: hydraulic pump

AVAILABLE DIE SETS

Product Code
Description
Crimp Range(mm)
Die Length (mm)
Hose I.D.
1
Die set n. 12 - length 45 mm
12
12-15
45
1/8''(5m m)
2
Die set n. 15 - length 45 mm
15
15-18
45
1/4''(6mm)
3
Die set n. 18 - length 45 mm
18
18-21
45
5/16''(8mm)
4
Die set n. 21 - length 56 mm
21
21-24
56
3/8''(10mm)
5
Die set n. 24 - length 56 mm
24
24-27
56
1/2''(13mm)
6
Die set n. 27 - length 56 mm
27
27-30
56
5/8''(16mm)
7
Die set n. 30 - length 56 mm
30
30-33
56
3/4''(19mm)
8
Die set n. 33 - length 75 mm
33
33-36
75
3/4''(19mm)
9
Die set n. 36 - length 75 mm
36
36-39
75
1''(25mm)
10
Die set n. 39 - length 75mm
39
39-45
75
1''(25mm)
11
Die set n. 45 - length 75 mm
45
45-48
75
11/4''(32mm)
12
Die set n.48 - length 75 mm
48
48-51
75
11/4''(32mm)
Detailed Images
FLEXIBLE. PORTABLE. ROBUST. MULTI-POSITIONING.
Capacity: 11/4″ 4wb (may vary according to assembly material)
Crimp range: 4 – 70 mm
Crimp force: 137t
FLEXIBLE. PORTABLE. ROBUST. MULTI-POSITIONING.

Capacity: 11/4″ 4wb (may vary according to assembly material)
Crimp range: 4 – 70mm
Crimp force: 137t
FLEXIBLE. PORTABLE. ROBUST. MULTI-POSITIONING.
Capacity: 11/4″ 4wb (may vary according to assembly material)
Crimp range: 4 – 70 mm
Crimp force: 137t
