Quick Details
-
Brand Name:
-
SANJIN
-
Voltage:
-
220v, 380v, 450v, etc
-
Dimension(L*W*H):
-
1.67*0.68*1.55m
-
Weight:
-
600 KG
-
Features:
-
enviornmental
-
Raw Material:
-
rice husk,sawdust,Peanut shells, bagasse
-
Product name:
-

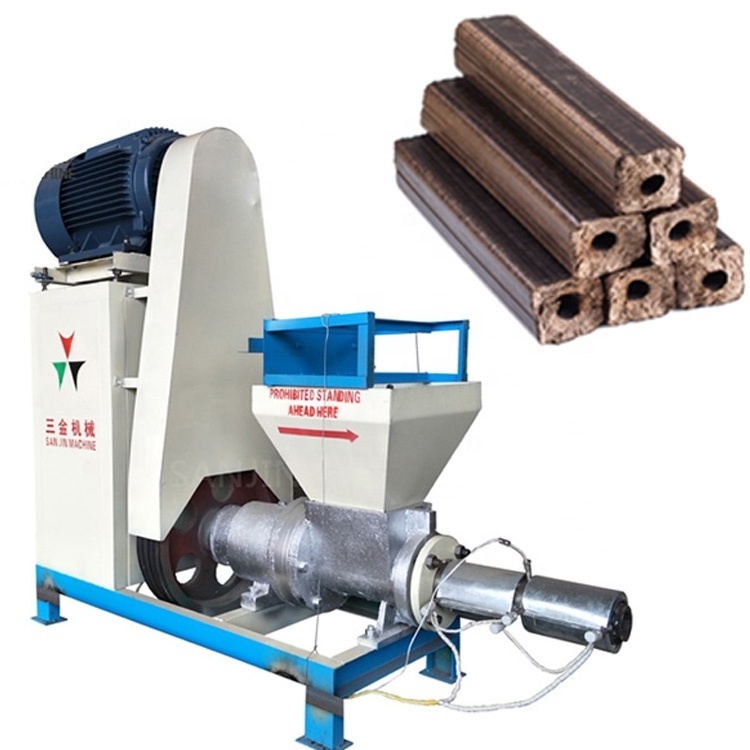

sawdust briquette making machine used for wood waste sawdust
-
Keyword:
-
briquette making machine
-
Usage:
-
Making Bbq Charcoal Briquette
-
Capacity:
-
140-200kg/h
-
Moisture of raw material:
-
8%-12%
-
Diameter of briquettes:
-
50-80mm
-
Working type:
-
Screw Pushing
-
Shape of final briquette:
-
Hexagonal Square
-
Spare parts:
-
Screw Propreller
Quick Details
-
Application:
-
produce fuel briquettes
-
Production Capacity:
-
140-200kg/h
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
SANJIN
-
Voltage:
-
220v, 380v, 450v, etc
-
Dimension(L*W*H):
-
1.67*0.68*1.55m
-
Weight:
-
600 KG
-
Features:
-
enviornmental
-
Raw Material:
-
rice husk,sawdust,Peanut shells, bagasse
-
Product name:
-
sawdust briquette making machine used for wood waste sawdust
-
Keyword:
-
briquette making machine
-
Usage:
-
Making Bbq Charcoal Briquette
-
Capacity:
-
140-200kg/h
-
Moisture of raw material:
-
8%-12%
-
Diameter of briquettes:
-
50-80mm
-
Working type:
-
Screw Pushing
-
Shape of final briquette:
-
Hexagonal Square
-
Spare parts:
-
Screw Propreller
|
Model
|
IV
|
ZBJ-500
|
ZBJ-500-30
|
ZBJ-80
|
|||
|
Power
|
15kw
|
22kw
|
30kw
|
22kw
|
|||
|
Capacity
|
140-200kg/h
|
360-460kg/h
|
500-600kg/h
|
500-550kg/h
|
|||
|
Dimension
|
1.67*0.68*1.55m
|
1.9*0.68*1.6m
|
1.9*0.68*1.8m
|
1.9*0.68*1.6m
|
|||
|
Diameter of briquette
|
50mm
|
50mm,60mm
70mm,80mm
|
50mm,80mm
|
80mm
|
|||
|
Inlet particle size
|
Within 5mm size
|
|
|
|
|||
|
Raw material moisture
|
8-12%
|
|
|
|
|||
Competitive compressed wood sawdust biomass tree leaves bamboo charcoal coal briquettes press manufacturing machines price
1. Automatic cutting device: the incision is neat and the length is uniform
2. Drive: motor (three-phase) or diesel engine
3. No adhesive/binder required
4. Adjustable density, up to 1.5g/cm3
5. Any biomass can be used
6. Propeller pitch is 32,36,40,45mm and other units (according to different raw materials)
1.What the main raw material of this machine is?
Its raw materials are mainly sawdust, rice husk, bamboo powder, peanut shell, bagasse, agricultural waste, etc.
2.What does like the finished briquettes?
The main shape is square, hexagon, nine edge, the briquette is 5 to 8cm in diameter with a hole in the middle.
3.How does the briquette making machine operate?
The main working principle of the briquette machine is high temperature, high pressure extrusion and molding, first, you need to turn on electricity, let the heating ring to heat to about 350 degrees, and then open the button, start slowly feeding.
4.Does this machine have wearing parts?
Yes, the main spare parts are inner sleeve, long sleeve and screw propeller. Screw propeller can be repaired after repeated. You can use a welding electrode repairs this part.
5.What is the service life of this machine?
At least 5 years.
