Quick Details
-
Voltage:
-
220v/380v/50-60hz
-
Weight:
-
3000 KG
-
Dimension(L*W*H):
-
Customized
-
Marketing Type:
-
New Product 2023
-
Product name:
-
PSA Nitrogen Generator
-
Model:
-
2-5000m3/h
-
Purity:
-
97%~99.9995%
-
Dimensions:
-
Customized
-
structure design:
-
skid
-
Function:
-
Auto "start-stop"
-
monitor:
-
remote real time monitoring
-
Aftersales:
-
Engineers available to service machinery overseas
-
Certification:
-
ISO9001,ASME,CE
-
Carbon molecular sieve:
-
Kuraray, OGC brand
Quick Details
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
HYT
-
Production Rate:
-
100%
-
Voltage:
-
220v/380v/50-60hz
-
Weight:
-
3000 KG
-
Dimension(L*W*H):
-
Customized
-
Marketing Type:
-
New Product 2023
-
Product name:
-
PSA Nitrogen Generator
-
Model:
-
2-5000m3/h
-
Purity:
-
97%~99.9995%
-
Dimensions:
-
Customized
-
structure design:
-
skid
-
Function:
-
Auto "start-stop"
-
monitor:
-
remote real time monitoring
-
Aftersales:
-
Engineers available to service machinery overseas
-
Certification:
-
ISO9001,ASME,CE
-
Carbon molecular sieve:
-
Kuraray, OGC brand

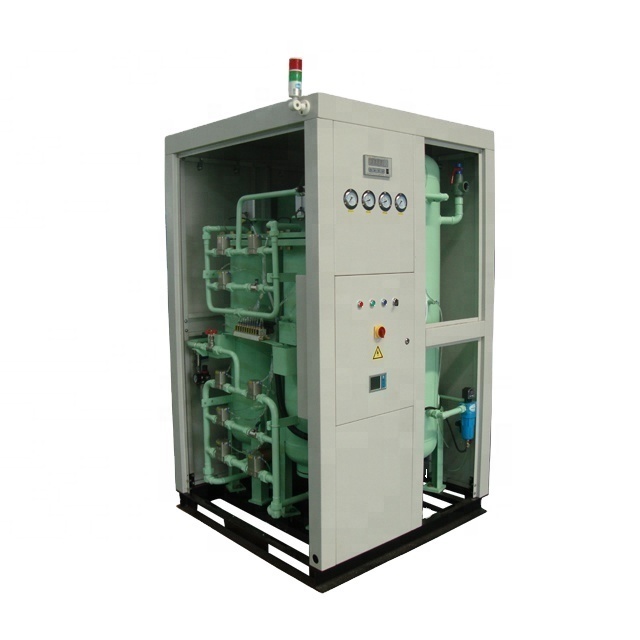

PSA Nitrogen Generator
| Model | N2 Outlet Flow Rate and Air Inlet Flow Rate-Nm3/h (20℃ & 101.3 Kbar) |
Dimensions L*W*H(CM) |
Weight(KG) | ||||||
| 99.5 | 99.9 | 99.95 | 99.99 | 99.995 | 99.999 | 99.9995 | |||
| HYT PNF-150 | 4.5 | 3.5 | 3 | 2.5 | 2.1 | 1.4 | 1.1 | 120*60*170 | 550 |
| HYT PNF-200 | 10.6 | 8.1 | 7 | 5.8 | 5 | 3.3 | 2.7 | 130*60*170 | 700 |
| HYT PNF-250 | 16.7 | 12.8 | 11 | 9.1 | 7.8 | 5.1 | 4.2 | 140*80*185 | 900 |
| HYT PNF-300 | 23.7 | 18.2 | 15.6 | 12.9 | 11.1 | 7.3 | 6 | 140*80*200 | 1100 |
| HYT PNF-350 | 31.6 | 24.2 | 20.8 | 17.2 | 14.8 | 9.7 | 7.9 | 155*90*200 | 1300 |
| HYT PNF-400 | 40.6 | 31.1 | 26.7 | 22.1 | 19.1 | 12.5 | 10.2 | 160*90*210 | 1500 |
| HYT PNF-450 | 54.2 | 41.5 | 35.6 | 29.5 | 25.4 | 16.6 | 13.6 | 160*100*210 | 1700 |
| HYT PNF-500 | 65.4 | 50.1 | 43 | 35.6 | 30.7 | 20.1 | 16.5 | 180*110*210 | 1900 |
| HYT PNF-550 | 85.8 | 65.7 | 56.3 | 46.6 | 40.3 | 26.3 | 21.6 | 180*120*225 | 2200 |
| HYT PNF-600 | 104 | 79.5 | 68.2 | 56.4 | 48.7 | 31.8 | 26.1 | 180*120*250 | 2550 |
| HYT PNF-650 | 135 | 104 | 88.9 | 73.6 | 63.6 | 41.5 | 34 | 200*130*270 | 2900 |
| HYT PNF-700 | 174 | 133 | 114 | 94.5 | 81.6 | 53.3 | 43.7 | 220*130*270 | 3200 |
| HYT PNF-800 | 226 | 173 | 148 | 123 | 106 | 69.2 | 56.7 | 240*150*270 | 3500 |
| HYT PNF-900 | 293 | 225 | 193 | 160 | 138 | 89.9 | 73.7 | 240*170*300 | 4200 |
| HYT PNF-1000 | 376 | 288 | 249 | 206 | 178 | 116 | 95.3 | 260*180*330 | 5100 |
| HYT PNF-1100 | 469 | 360 | 311 | 258 | 222 | 145 | 119 | 300*190*350 | 6000 |
| HYT PNF-1200 | 581 | 445 | 385 | 319 | 275 | 180 | 147 | 300*200*370 | 7200 |
| HYT PNF-1300 | 715 | 548 | 474 | 393 | 339 | 221 | 182 | 320*220*380 | 8500 |
| HYT PNF-1400 | 864 | 662 | 573 | 474 | 413 | 270 | 221 | 340*230*400 | 9800 |
| HYT PNF-1500 | 1031 | 790 | 684 | 566 | 493 | 325 | 267 | 360*240*430 | 12000 |
| HYT PNF-1600 | 1827 | 1400 | 1211 | 1003 | 874 | 576 | 477 | 380*280*520 | 16000 |
| Reference Conditions: | Operating Limits: |
|
Compressed air effective inlet pressure: 7.0bar(g)
Nitrogen outlet pressure: 6 bar(g)
|
Minimum ambient temperature: 5℃
Maximum ambient temperature: 45℃ Maximum compressed inlet air pressure 10 bar(g) |
FAQ
Q1. What's the order to have a nitrogen generator plant ?
a. Inquiry---provide us all clear requirements.
b. Quotation---official quotation form with all clear specifications.
c. Contract confirmation---provide correct contract details.
d. Payment terms
e. Production
f. Shipping
g. Installation and commissioning
h. Conducting routine after sales support
Q2. How to get a prompt quotation of Nitrogen Generator?
When you send the inquiry to us, pls kindly send it with below technical information.
a. N2 flow rate: _____Nm3/hr( or How many cylinders/ liquid do you consume per day(24hours))
b. N2 purity: _____%
c. N2 discharge pressure: _____Bar
d. Voltages and Frequency : ______V/___PH/___HZ
e. Application:
f. Project Location:
g. Job site altitude___, ambient temperature___
h. Machine room availability Y/N
Q3: The producing nitrogen is gaseous state or liquid state?
Our nitrogen/oxygen equipment use PSA air separation technology under normal temperature,with no-low temperature operation,the temperature of nitrogen/oxygen product is close to ambient temperature.
Q4: How long is the nitrogen equipment service life?
Generally speaking,industrial equipment service life is depend on daily maintenance. under normal maintenance,our equipment can well running for more than 10 years.
Q 5: Whether you could make our brand on your products?
Yes, we can print your Logo on both of the products and package if you want.
Q6: What are your payment terms?
a. 30%T/T in advance and balance before shipment.
b. 30% T/T advance and irrevocable letter of credit at sight.
Our HYT team will design and customized relate technical project and provide the suitable selection and quotation for you in time.
