Quick Details
-
Engine Brand:
-
Laidong/Xichai/Yangdong/Yunnei
-
Horse power:
-
25-240hp
-
Engine Emission:
-
Euro2/ Euro3
-
Engine type:
-
4 cylinder diesel
-
Clutch:
-
Single Or Dual- Stage Clutch
-
PTO Speed:
-
540/760rpm 540/1000rpm(Optional)
-
Transmission:
-
Gear box
-
Steering:
-
Hydraulic Steering
-
Linkage:
-
3 point
-
Tire:
-
9.5-24/11.2-24/11.2-28/12.4-24
-
Differential lock:
-
Yes
-
After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
-
Local Service Location:
-
Argentina
Quick Details
-
Brand Name:
-
TAVOL
-
Place of Origin:
-
Shandong, China
-
Warranty:
-
2 YEAR
-
Engine Brand:
-
Laidong/Xichai/Yangdong/Yunnei
-
Horse power:
-
25-240hp
-
Engine Emission:
-
Euro2/ Euro3
-
Engine type:
-
4 cylinder diesel
-
Clutch:
-
Single Or Dual- Stage Clutch
-
PTO Speed:
-
540/760rpm 540/1000rpm(Optional)
-
Transmission:
-
Gear box
-
Steering:
-
Hydraulic Steering
-
Linkage:
-
3 point
-
Tire:
-
9.5-24/11.2-24/11.2-28/12.4-24
-
Differential lock:
-
Yes
-
After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
-
Local Service Location:
-
Argentina

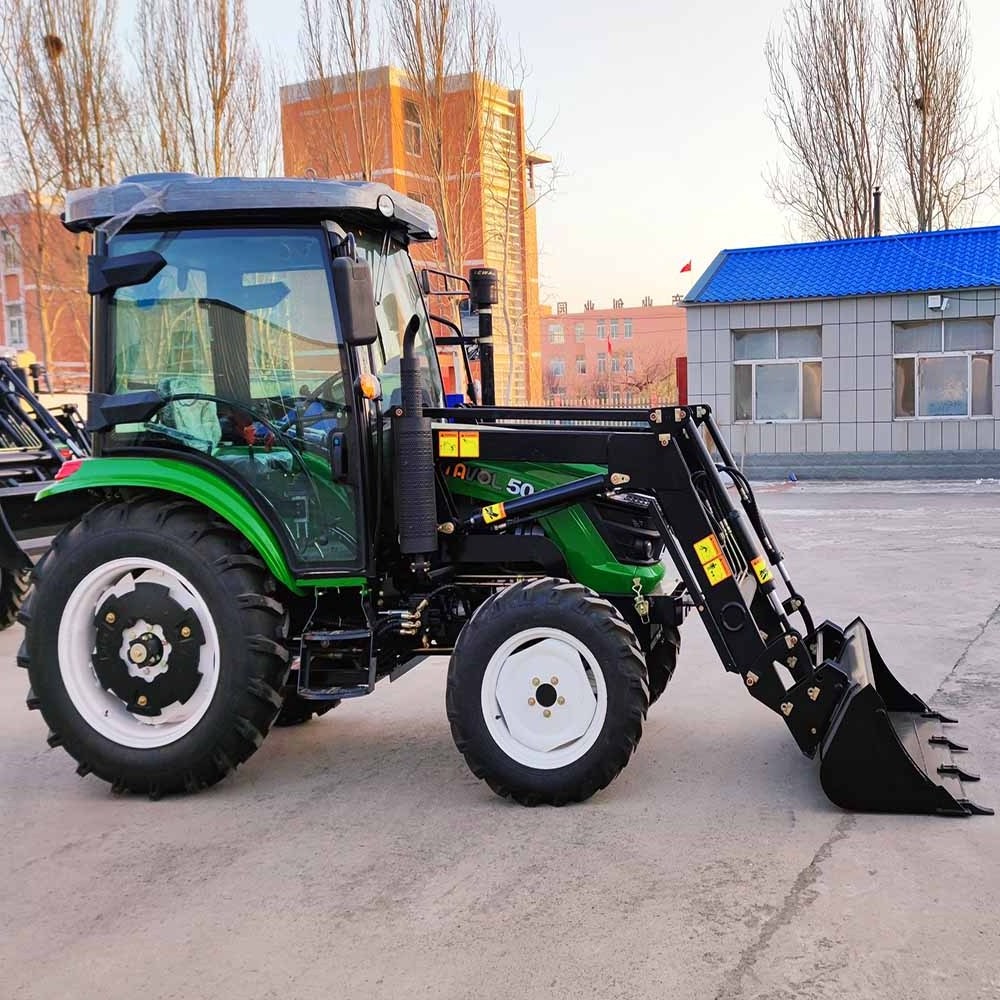

compact dozer farming 40 HP 50 HP 55 HP 4 W D farm tractors and tractor front end loader made in china by TAVOL
Products Description
|
Tavol 50hp Tactor Main Parameters
|
|
|
|
|||
|
Model
|
|
|
TL504
|
|||
|
Type
|
|
|
4x4
|
|||
|
Machine parameters
|
PTO power (KN)
|
|
31.2
|
|||
|
|
Rated Traction( KN)
|
|
10.5
|
|||
|
|
Dimensions(mm)
|
|
3650×1650×2350
|
|||
|
|
Wheelbase（mm）
|
|
1965
|
|||
|
|
Track(mm)
|
Front wheel
|
1150
|
|||
|
|
|
Rear wheel
|
1200-1360
|
|||
|
|
Minimum ground clearance(mm)
|
|
330
|
|||
|
|
Turning circle radius
|
Unilateral braking
|
2.7±0.20、2.85±0.20
|
|||
|
|
|
Not unilateral braking
|
3.0±0.30、3.15±0.30
|
|||
|
|
Weight (KG)
|
|
1828
|
|||
|
Drive Train
|
Clutch
|
|
Single or dual stage clutch
|
|||
|
|
Gearbox
|
|
8+2 shift/8+8 shuttle shift
|
|||
|
Walking steering
|
Tire
|
Front wheel
|
6.00-16/6.5-16/7.5-16
|
|||
|
|
|
Rear wheel
|
9.4-24/11.2-24/12.4-24/12.4-28
|
|||
|
Braking system
|
Service brake
|
|
Shoe brake
|
|||
|
Working equipment
|
Maximum lifting force at 610mm(KN)
|
|
8.3
|
|||
|
|
Suspension mechanism
|
|
Three-point suspension type 1
|
|||
|
|
Hydraulic output
|
|
Optional 1 or 2 groups
|
|||
|
PTO shaft
|
PTO speed r/min
|
|
540/760 or 540/1000
|
|||
|
Engine
|
Engine brand
|
|
Laidong
|
|||
|
|
Engine type
|
|
Diesel engine
|
|||
|
|
Engine cylinder
|
|
4
|
|||
|
Optional
|
Cabin
|
|
AC
|
|||
|
Start
|
Start method
|
|
Electric
|
|||
|
Main fill volume
|
Radiater
|
|
10
|
|||
|
|
Fuel tank
|
|
29
|
|||
|
|
Engine oil pan(L)
|
|
5
|
|||
|
|
Driveline oil (L)
|
|
20
|
|||
|
|
Lifter(L)
|
|
9.5
|
|||
|
This parameter table is for reference only, everything is based on actual products
|
|
|
|
|||
