- Product Details
- {{item.text}}
Quick Details
-
Product name:
-
ip to analog modualtor
-
Input:
-
4 ASI inputs
-
QAM channel:
-
4
-
Standard:
-
DVB-C
-
Constellation:
-
16/32/64/128/256QAM
-
Interface:
-
F type
-
Frequency range:
-
30~960 MHz
-
Dimensions:
-
482x455x44.5mm
-
Temperature range:
-
0~45℃(Operating)
-
Power consumption:
-
25W
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
FULLYNET
-
Model Number:
-
FN2500C-32
-
Product name:
-
ip to analog modualtor
-
Input:
-
4 ASI inputs
-
QAM channel:
-
4
-
Standard:
-
DVB-C
-
Constellation:
-
16/32/64/128/256QAM
-
Interface:
-
F type
-
Frequency range:
-
30~960 MHz
-
Dimensions:
-
482x455x44.5mm
-
Temperature range:
-
0~45℃(Operating)
-
Power consumption:
-
25W

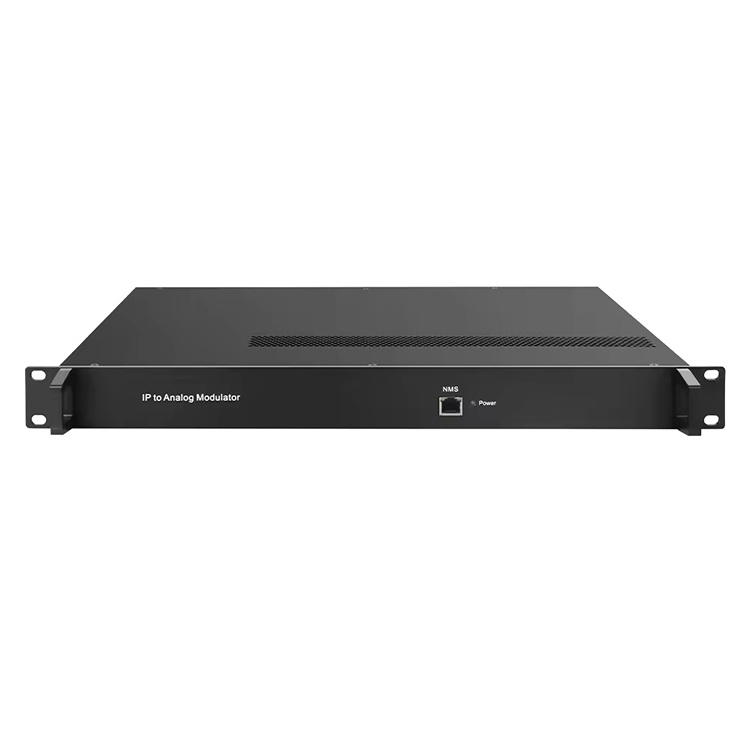

1U 32/2U 64 in 1 IP to Analog Agile RF CATV Modulator IP PAL NTSC Modulator 32 Non-Adjacent Analog RF SFP Form Factor Used FTTH
Product Description
|
Input
|
Interface/rate
|
2 GE ports (max 64 IP input)
Max 840Mbps for each GE input |
|
|
Stream
|
UDP, UDP / RTP, 1-7 packets, FEC, SPTS, MPTS
|
|
|
Transport Protocol
|
UDP/RTP, unicast and multicast, IGMP V2/V3
|
|
|
Packet Length
|
188 / 204 Bytes
|
|
Decoding
Parameters |
Video
|
H.264/AVC Level 4.1 HP, MPEG-2 MP@HL
|
|
|
Audio
|
MPEG-1/2 Layer 1/2, (HE-)AAC
|
|
|
Data
|
Teletext, Teletext subtitles, DVB Subtitling
|
|
|
Resolutions
|
480I, 576I, 720P, 1080I, 1080P
|
|
|
Aspect ratio
|
4:3/16:9
|
|
Modulation
Parameters |
Number of channels
|
up to 32
|
|
|
Connectors
|
75Ω, F-jack
|
|
|
Frequency range
|
47 - 862MHz, digital modulation
|
|
|
Output level
|
maximum 112dBμV
|
|
|
Return loss
|
≥ 14dB
|
|
|
Spurious frequency dist.
|
≥ 60dB
|
|
|
Stereo cross talk
|
> 55dB
|
|
|
Residual carrier accuracy
|
1%
|
|
|
TV standard
|
PAL B/G/D/K/M/N, NTSC,
SECAM (under development) |
|
|
Video-signal to noise ratio
|
≥ 60dB
|
|
Network Interface
|
Management
|
1 x 100 Base-T Ethernet (RJ 45)
|
|
|
Data
|
2 x 1000 Base-T Ethernet (RJ 45)
|
|
|
Protocol
|
IEEE802.3 Ethernet, RTP, ARP, IPv4, TCP/UDP, HTTP, IGMPv2/v3
|
|
Others
|
Image resolution
|
up to 1080i
|
|
|
CNR
|
60 dB (after internal combining)
|
|
|
SNR
|
> 53 dB (after internal combining)
|
|
|
Sampling frequency
|
48, 44.1, 32
|
|
|
Output volume adjustment
|
0 - 100 %
|
|
General
|
Demission
|
420mm×440mm×44.5mm (WxLxH)
|
|
|
Temperature
|
0~45ºC(operation), -20~80ºC(storage)
|
|
|
Power Supply
|
AC100V±10%, 50/60Hz or AC 220V±10%,50/60Hz
|
Overview .
OTV-IPAM 32 in 1 IP Analog RF Modulator(Agile Modulator), which realize the digital stream to convert to analog
modulation,perfectly help users throwing away the frequently frozen set-top box, throwing away the frequently upgraded remote control, and throwing away the large cabinet that consumes electricity.
OTV-IPAM working process like this: IP Stream from Digital Front End ---IP Analog Modulator----RF
Finally, it save more space for the machine room, and makes the after-sales more effective. With the features of low cost high performance, OTV-IPAM 32 in 1 IP Analog RF Modulatoris very adaptable to hotel, community and entertainment spot.
modulation,perfectly help users throwing away the frequently frozen set-top box, throwing away the frequently upgraded remote control, and throwing away the large cabinet that consumes electricity.
OTV-IPAM working process like this: IP Stream from Digital Front End ---IP Analog Modulator----RF
Finally, it save more space for the machine room, and makes the after-sales more effective. With the features of low cost high performance, OTV-IPAM 32 in 1 IP Analog RF Modulatoris very adaptable to hotel, community and entertainment spot.
Features
1:
2 GE ports (max 64 IP input over MPTS/SPTS), Max 840Mbps for each GE input
2:
32 non-adjacentcarriers output
3:
Support HEVC/H.265, H.264/AVC, MPEG-2 TS Decapsulation
4:
high density
5:
Support Web-based Network management
6:
Processing of up to 32 IP multicast groups of a Gigabit Ethernet MPEG TS into up to 32 standard PAL or NTSC or SECAM TVprograms (SECAM is under development)
