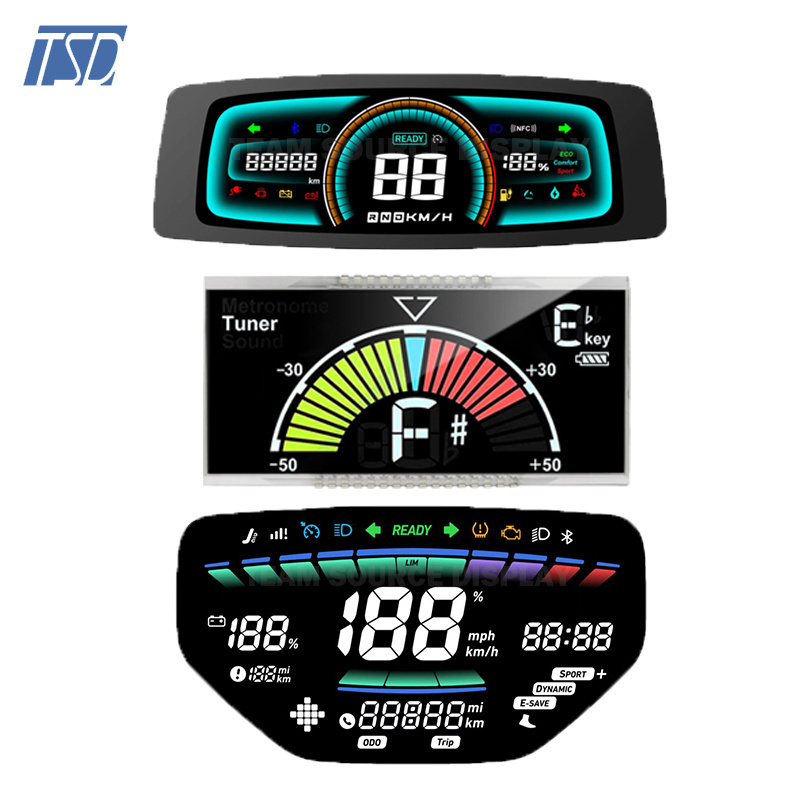

Custom VA TN HTN STN FSTN DFSTN Segment Graphic Monochrome LCD Display

Custom VA TN HTN STN FSTN DFSTN Segment Graphic Monochrome LCD Display

FOB Reference Price: Get Latest Price

≥1 Pieces

US $0.1

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: China

Brand Name:: TSD

Module No.:: TSCUSTOMMONO-04

Dot Resolution:: 16x2, 20x4, 128x64, 240x128

Viewing Angle:: 3H, 6H, 12H,

IC Brand:: Sitronix, Ilitek, Solomon, Himax, Eeti, Fitipower

Glass Brand:: AGC, Gorilla, BOE, CTC, Inolux, etc.

Connector:: Metal PIN, Rubber/Zebra, FPC, FFC

Backlight:: Green, Gray, Blue, Black, White, Orange, Amber

Display Mode:: VA TN HTN STN FSTN DFSTN

Operating Temperature:: -30-+85°C

Storage Temperature:: -40-+90°C

Quick Details

Type:: TN

Display Size:: custom

Supplier Type:: Manufacturers

Place of Origin:: China

Brand Name:: TSD

Module No.:: TSCUSTOMMONO-04

Dot Resolution:: 16x2, 20x4, 128x64, 240x128

Viewing Angle:: 3H, 6H, 12H,

IC Brand:: Sitronix, Ilitek, Solomon, Himax, Eeti, Fitipower

Glass Brand:: AGC, Gorilla, BOE, CTC, Inolux, etc.

Connector:: Metal PIN, Rubber/Zebra, FPC, FFC

Backlight:: Green, Gray, Blue, Black, White, Orange, Amber

Display Mode:: VA TN HTN STN FSTN DFSTN

Operating Temperature:: -30-+85°C

Storage Temperature:: -40-+90°C

Product Description

LCD Type	VA, TN, HTN, STN Yellow-Green, STN Gray, STN Blue, FSTN, DFSTN
Display Form	LCD panel, COB, COG, COF
Polarizer	Transflective, Transmissive, Reflective
Backlight	Green, Gray, Yellow-Green, Blue, Black, White, Orange/Amber, others
Operating Temperature	0 to +50°C, -10 to +60°C, -20 to +70℃,-30 ℃ to +85 ℃, others
Connector/Connection	Metal PIN, Rubber/Zebra, Heat seal, FPC, FFC
Dot Resolution	16x2, 20x4, 128x64, 240x128, 320x240, 128x128, 128x32, 320x240
IC Brand	Sitronix, Ilitek, Solomon, Himax, Eeti, Fitipower, etc.
Glass Brand	AGC, Gorilla, BOE, CTC, Inolux, etc.
Product Application	measuring instruments, industrial equipment, industrial instruments, analyzers, electricity meters, water meters, blood pressure meters, oximeters, petrol gas pump, speedometer, digital instrument cluster, car dashboard
Brand Name	TSD
Place of Origin	China

Customized Service

We can customize different dot resolution, like 16x2, 20x4, 96x64, 128x64, 320x240 , and different display modes like transmissive, reflective, transflective, positive, negative, FSTN, STN, VA, based on customers' needs.

The monochrome LCD display will require a backlight, so the display can be seen without nature light. TSD can customize different kinds of backlight according to the customer's needs.

Bottom backlight, flat backlight, backlight with retaining wall , etc. All can be customized based on customers' needs.

Applications

We have developed thousands of LCD display products for automotive products, consumer electronics, smart wearable device , POS , PDA , medical equipment , IOT products , smart home application , white goods , industrial and integration equipment , communication device , fiscal products , meter and measuring device , etc.

You can choose from our extensive range, including TFT LCD display, Monochrome LCD display , Touch Screen , customized LCD panel , COB and COG display .

Exhibition & Certificate

TSD is a professional LCD display manufacturer with ISO13485, IATF16949, ISO9001, ISO14001, REACH, ROHS and other certificates.

Factory & Production

Full-Auto FOG bonding =4 Lines Production ability：0.96-7 inch （2lines) 7-15.6inch（2lines)
Full-Auto FOG bonding =1 Line Production ability：7-13.3 inch
Semi-Auto FOG Bonding =3 Lines / Two lines for 0.96-7 inch / One line for 7-15.6 inch
Full-Auto Assembly =2 Lines Production ability：0.96-6 inch
Full-Auto Assembly = 1 Line Production ability：7-10.1 inch
Semi-Auto Soldering Machine =3 lines Production ability： 1-6 inch
Full-Auto OCA full Optical bonding = 4Lines / 3 lines for 0.96-6 inch and 1 for 7-15.6 inch
Semi-Auto CTP TAB bonding = 2 Lines Production ability：1-10.1 inch
Full-Auto CTP TAB bonding = 1 lines (2.4-15.6 inch)
Semi-Auto OCA Full Optical Bonding = 3Lines Production ability：1-10.1 inch
Semi-Auto foil attaching machine = 1Line Production ability:2-6 inch
Full-Auto Polarizer attaching machine = 2Lines Production ability:2-6 inch
