Length: 11m/36ft
Beam: 3m
Loading capacity: 6 tons
Depth: 1.49m
Engine : outboards
Warranty: 3 years
- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
LCT1100
-
Material:
-
5083 Aluminum
-
Usage:
-
Fishing/working/passenger carry
-
Engine:
-
outboards
-
Color:
-
Customize
-
Floor:
-
Aluminum/EVA teak floor
-
Logo:
-
Customized
-
Oil tank:
-
Welded
-
Type:
-
Flat/shadow V hull
-
Place of Origin:
-
China
-
Warranty:
-
3 years
Quick Details
-
Hull Material:
-
Aluminium
-
Year Built:
-
Brand new
-
Length (m):
-
36ft
-
Model Number:
-
LCT1100
-
Material:
-
5083 Aluminum
-
Usage:
-
Fishing/working/passenger carry
-
Engine:
-
outboards
-
Color:
-
Customize
-
Floor:
-
Aluminum/EVA teak floor
-
Logo:
-
Customized
-
Oil tank:
-
Welded
-
Type:
-
Flat/shadow V hull
-
Place of Origin:
-
China
-
Warranty:
-
3 years
Product Description

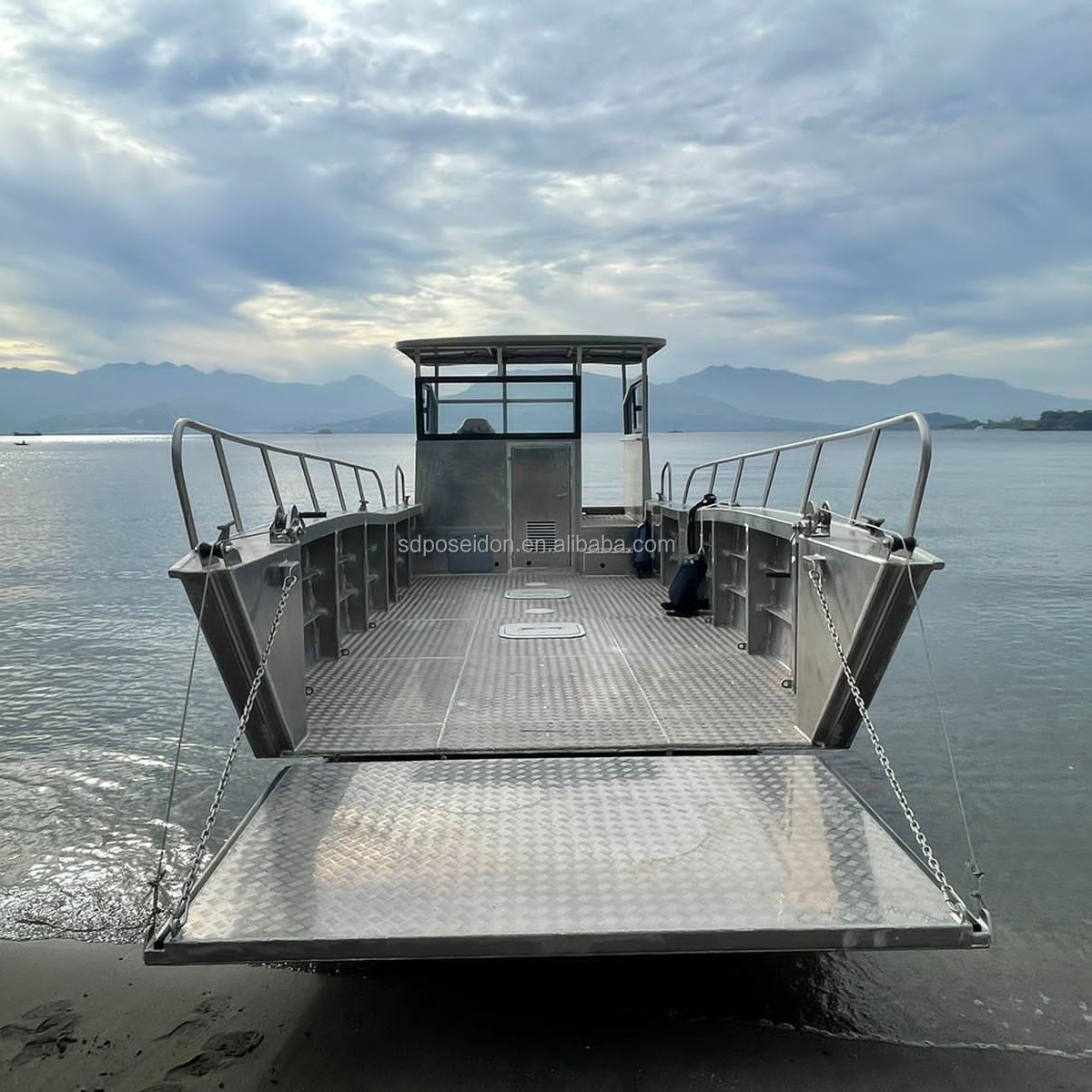

11m 36ft Aluminum fully welded landing craft
Most safety boat design from North Europe - The landing craft building origin base.
Marine aluminum alloy 5083, 5mm/6mm for bottom and 4mm/5mm for sides.
12mm strong ribs, self drain deck with safety flotation for handle the rough sea waves.
Big fuel tank for long time working on the sea.
Model number: LCT1100
|
Length
|
7.89m
|
9m
|
10m
|
11m
|
15m
|
|
Beam
|
2.55m
|
3m
|
3m
|
4m
|
4.8m
|
|
Draft
|
0.35m
|
0.35m
|
0.35m
|
0.31m
|
0.35m
|
|
Recommended HP
|
175
|
200
|
250-300
|
250
|
500
|
Specification
|
Item
|
LCT1100
|
|
Hull Material
|
5083 H116 Aluminium
|
|
Engine
|
outboards
|
|
Delivery
|
By flat rack
|
|
Type
|
Flat/shadow V hull
|
|
Warranty
|
3 years
|
Packing & Delivery
Manufacturing Technique
LCT790 as petrol boat
LCT1000 in PHI
LCT900 for transportation
LCT790 in
Switzerland
for diving
LCT900 for cargo carry
LCT1000 as working boat
Pilot Boats Bidding Project
15m Catamaran Passenger Boat
1.All of our fishing & working boat are made of Marine-grade aluminum 5083-h116 with China Ship Classification society ( CCS )
2.Welding Specification :
2.Welding Specification :
1) TIG and MIG are to be adopted for this ship .
2) The ultrasonic inspection to be carried out for the cross joint of seam and other important place.
3) From 5083-H116 material to welding wires to welding use gas & experienced qualified welders.
4) The bottom is double bottom system and constructed on the longitudinal system of framing.
5) Solid floors will be provided at every frame station , the side transverse frames will be fitted at a space of 500mm ."
3. The Core Features Of Our safe Design
3. The Core Features Of Our safe Design
1) The Whole hull structure Manual bilge pump system
2) The underfloor fuel tank with cutoff valves and fuel inspection hose with
heavy duty fuel hoses
heavy duty fuel hoses
3) Balance testing , Flotation and deck water-Tight and flotation testing make sure 100% safe "
